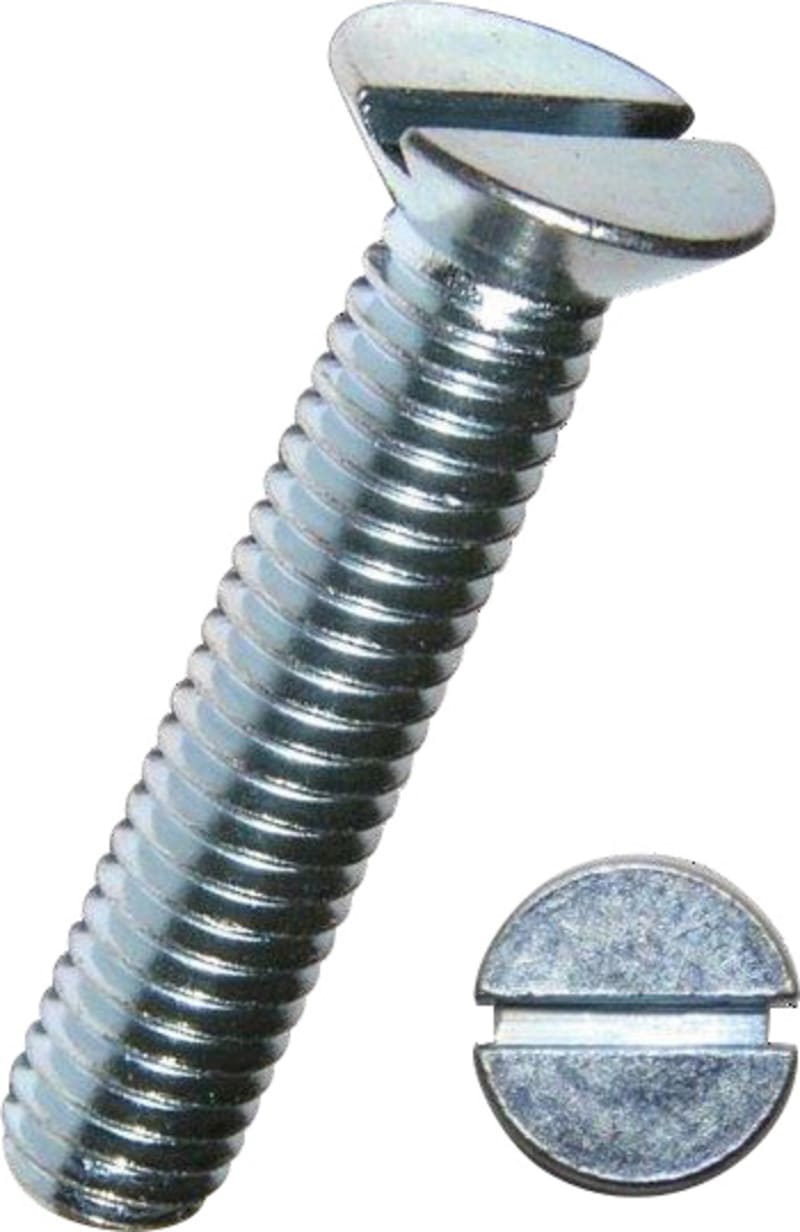

Dresselhaus 0420/001/01 M6x70 Machine Screw Countersunk Slotted DIN 963 4.8 Zinc-Plated
Pricing
Request a quote
We reply within 24 hours
Product Description
Dresselhaus 0420/001/01 M 6 x 70 is a DIN 963 countersunk machine screw with a straight slot drive in M6x70, full-thread, grade 4.8 steel with galvanic zinc plating. The head measures 11 mm in diameter and 3 mm high with a 1 mm metric thread pitch. Minimum order quantity is 200 pieces in multiples of 200.
Technical Specifications
- Manufacturer part number (MPN)
- 0420/001/01 M 6 x 70 EAN / GTIN: 4001796563546 Sales unit: pcs minimum order quantity: 200 Order multiple: 200 Type of material certificate according to EN 10204: None material: Steel material quality: 4.8 (steel) Surface protection: Galvanic/electrolytic zinc plated Countersunk head: Yes Thread size (metric): 6 Length to bottom side head: 70 mm Thread length: 70 mm Full thread: Yes Screwing system: Screw slot Pitch thread: 1 mm Thread type: Metric Left-handed thread: No Head diameter: 11 mm Head height: 3 mm With flange: No With nut: No With washer: No Self-locking: No Colour: Zinc Country of origin: Taiwan
Standards & Compliance
- HS Code
- 7318.19
Cross References
- EAN 4001796563546
- SAP 1200536851
- Code 82697153
Product Documentation
