Product Description

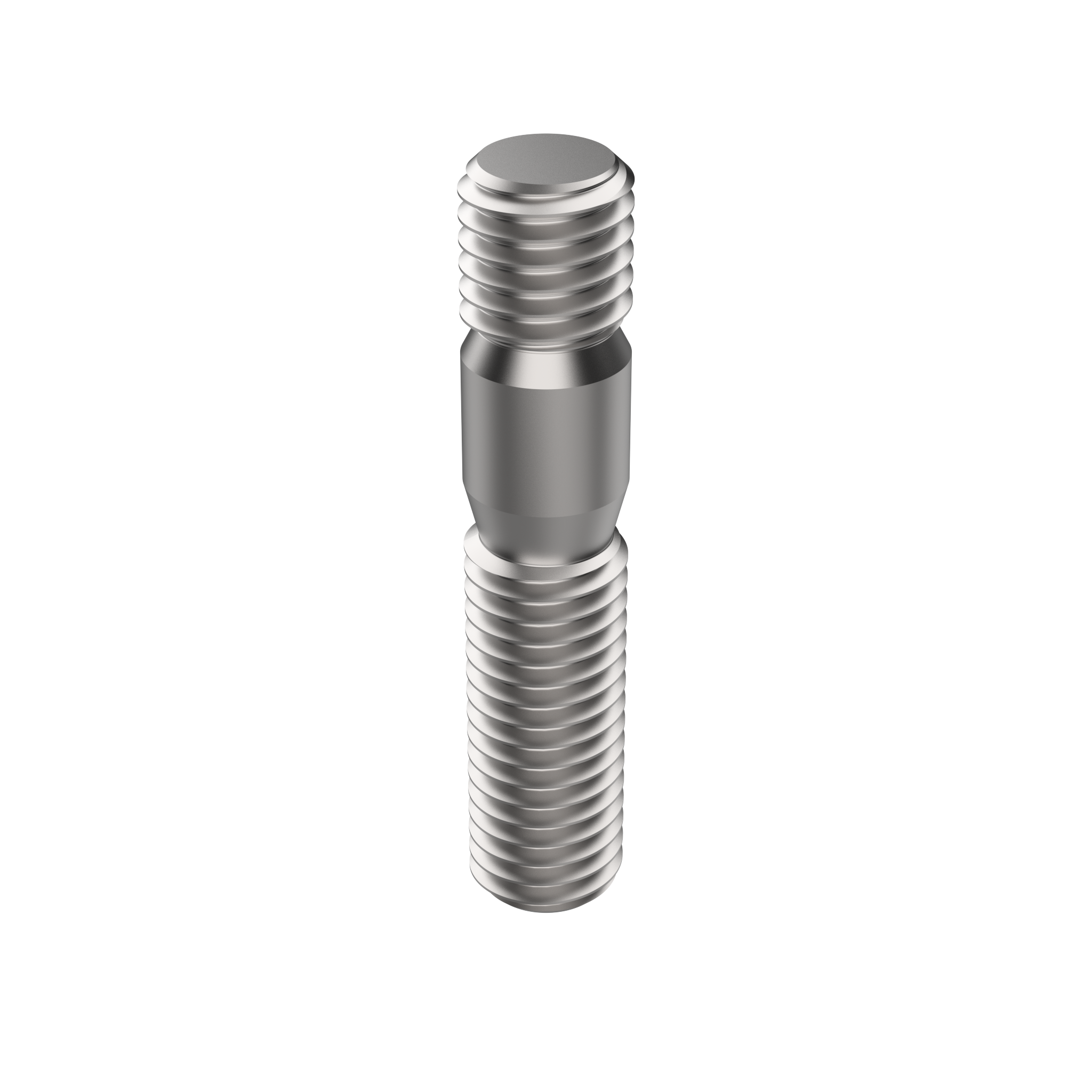

DIN 938 double end stud, M30 x 100, Article number 9385830100. Property class / material: steel 5.8, surface finish plain. Double End Stud manufactured to DIN 938 with ISO metric (M) thread, coarse pitch. Standard parts to the same standard, property class, dimensions and surface finish are interchangeable between manufacturers; confirm the controlling standard revision, any class-society or application approval, and the mating thread before substitution.
Technical Specifications
- Standard
- DIN 938
- Property class / grade
- 5.8
- Class (detailed)
- 5.8
- Thread type
- M
- Thread diameter
- 30 mm
- Pitch
- 3.5 mm
- Thread pitch class
- Coarse
- Thread direction
- Right
- Length
- 100 mm
- Surface treatment
- Plain (no plating)
- Surface treatment code
- PLAIN
- Nut End Chamfer Length
- 4.5 mm
- Nut End Thread Length
- 30 mm
- Stud End Chamfer Length
- 9 mm
- Stud End Thread Length
- 66 mm
- Length
- 100 mm
- Thread standard
- ISO metric (M)
- Article number
- 9385830100
- Category
- Bolts and Screws / Double End Stud
Standards & Compliance
- Standard
- DIN 938
- Size / Series
- M30 x 100
- Material
- Steel 5.8
- Thread Standard
- ISO metric (M)
- HS Code
- 731815
