Product Description

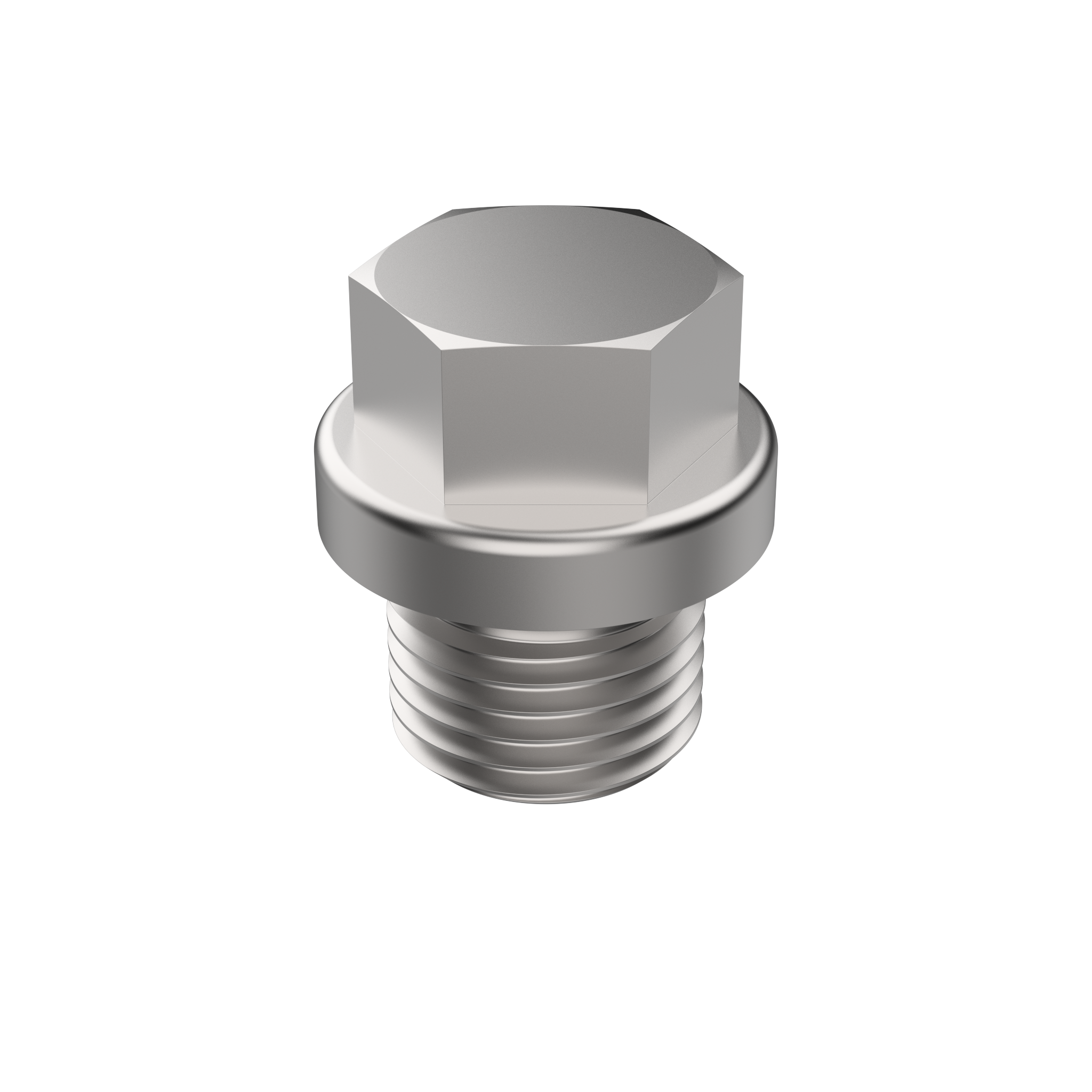

DIN 910-A hexagon head screw plug (form A), G 1/2", Article number 910-1.4462-G12. Property class / material: d5, surface finish plain. Hexagon Head Screw Plug manufactured to DIN 910 with ISO 228-1 parallel pipe thread (G) thread, coarse pitch. Standard parts to the same standard, property class, dimensions and surface finish are interchangeable between manufacturers; confirm the controlling standard revision, any class-society or application approval, and the mating thread before substitution. Applications: sealing of threaded ports in gearboxes, hydraulic and pneumatic equipment, engines and plant pipework.
Technical Specifications
- Standard
- DIN 910
- Property class / grade
- D5
- Class (detailed)
- D5
- Thread type
- G
- Thread diameter
- 20.955 mm
- Pitch
- 1.814 mm
- Thread pitch class
- Coarse
- Thread direction
- Right
- Length
- 14 mm
- Thread length
- 14 mm
- Drive type
- Hex Drive
- Key width (across flats)
- 19 mm
- Surface treatment
- Plain (no plating)
- Surface treatment code
- PLAIN
- Screw Plug Flange Diameter
- 26 mm
- Screw Plug Flange Thickness
- 4 mm
- Screw Plug Key Height
- 8 mm
- Length
- 14 mm
- Thread standard
- ISO 228-1 parallel pipe thread (G)
- Article number
- 910-1.4462-G12
- Category
- Screw plugs / Hexagon head screw plugs
Standards & Compliance
- Standard
- DIN 910
- Size / Series
- G 1/2"
- Material
- D5
- Thread Standard
- ISO 228-1 parallel pipe thread (G)
- HS Code
- 731815
