CTM Lyng MDimLed Micro Universal Dimmer 3–250 W
Pricing
Request a quote
We reply within 24 hours
Product Description

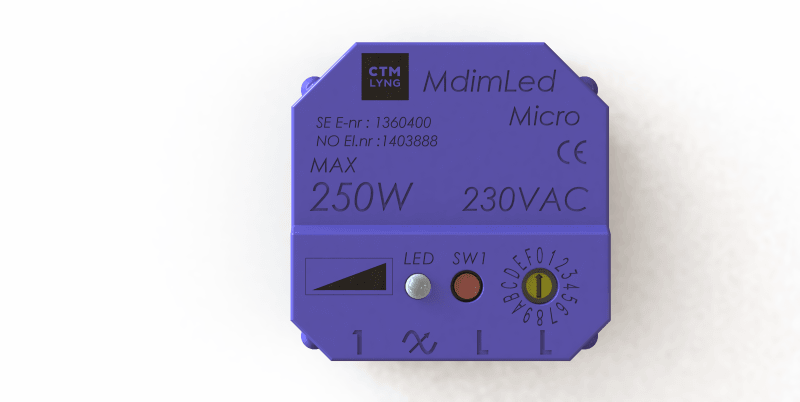

The CTM Lyng MDimLed Micro is a flush-mounted push-button dimmer for LED, halogen and incandescent loads rated 1–250 VA at 230 V. It supports both trailing-edge and leading-edge phase-cut modes so it can be matched to most dimmable lamp types. The compact 40 × 40 × 15 mm body fits a standard installation box at least 25 mm deep and provides light-level memory plus compatibility with movement, timer and transmission-button accessories.
Technical Specifications
- Manufacturer part number (MPN)
- 1403888
- EAN / GTIN
- 7071007002703
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Mounting method
- Flush-mounted
- Assembly arrangement
- Modular device for domestic switching devices
- Method of operation
- Push button
- Colour
- Blue
- Halogen free
- No
- Connection type
- Push-in clamp
- Frequency
- 50–60 Hz
- Material quality
- Thermoplastic
- Type of load
- Resistive load
- Material
- Plastic
- Light value memory
- Yes
- Substation input
- No
- RAL-number (similar)
- 90
- Serial dimmer
- No
- Applicable with movement sensor
- Yes
- Applicable with transmission button
- Yes
- Applicable with infrared button
- No
- Applicable with presence indicator
- No
- Applicable with button
- No
- Applicable with time switch/timer
- Yes
- Nominal power
- 1–250 VA
- Nominal voltage
- 230 V
- Transparent
- No
- Surface finishing
- Matt
- Suitable for degree of protection (IP)
- IP20
- Core cross section
- 0.5–2.5 mm²
- Device width
- 40 mm
- Device height
- 40 mm
- Device depth
- 15 mm
- Dimming phase cut-off (trailing edge)
- Yes
- Dimming phase cut-on (leading edge)
- Yes
- Min. depth of built-in installation box
- 25 mm
- App control via Bluetooth
- No
- Country of origin
- Norway
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7071007002703
- SAP 1200022330
- Code 81408937
