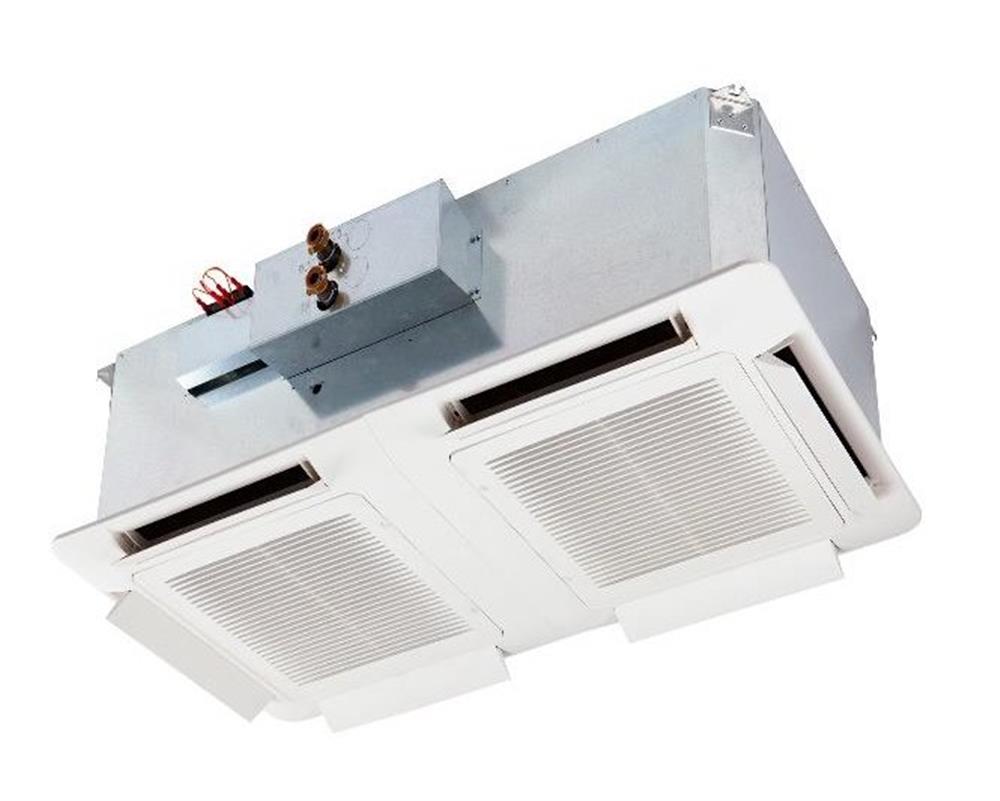

Clint TXW Fan Coil 4-Way with EC motor - 11.2kW, 8.1kW, 11.2kW, 36-51DB(A), 3/4", No, TXW/EC 284 +UCB+SNA+GR
Pricing
Request a quote
We reply within 24 hours
Product Description
Clint TXW Fan Coil 4-way with EC motor. 4-way fan coils (Refrigeration technology / Water cooling system / Fan coils). Principal data: cooling capacity 11.2 kW, sensible cooling capacity 8.1 kW, heating capacity 11.2 kW, sound performance level 36 to 51 dB(A). Supplied under manufacturer part number TXW/EC 284+, HS code 8415.90, country of origin Italy.
Technical Specifications
- Product type
- 4-way fan coils
- Product group
- Water cooling system
- Cooling capacity
- 11.2 kW
- Sensible cooling capacity
- 8.1 kW
- Heating capacity
- 11.2 kW
- Sound performance level
- 36 to 51 dB(A)
- Pipe connection
- 3/4"
- Remote control included
- No
- Type designation
- TXW/EC 284 +UCB1+SNA+panel
- Weight
- 42 kg
- Height
- 250 mm
- Installation dimension
- 1160 x 570 mm
- Frequency
- 50 Hz
- Voltage
- 230 V
- Carbon footprint (EPD)
- 321.0238 kg CO2e per pcs
- Country of origin
- Italy
- Customs tariff code (EU CN)
- 84159000
- HS code
- 8415.90
- Manufacturer part number
- TXW/EC 284+
Standards & Compliance
- HS Code
- 8415.90
Cross References
- MPN TXW/EC 284+
