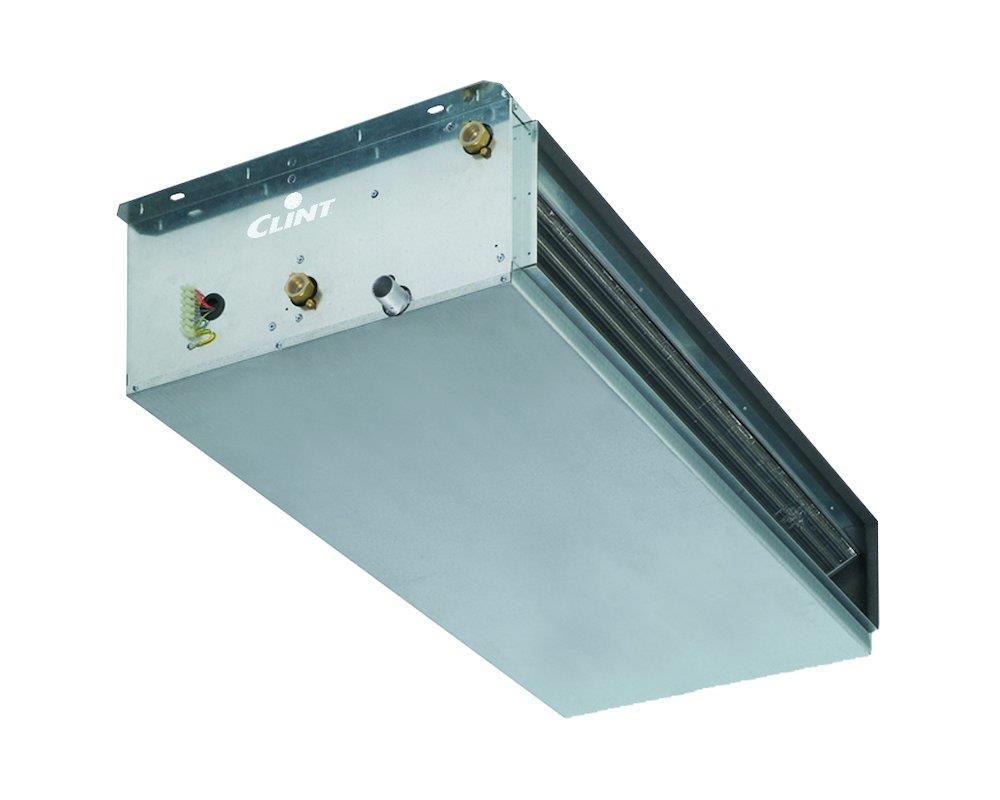

Clint DWX Fan Coil Duct with EC motor - 15.4kW, 12.6kW, 2649L/h, 2400-3690M³/h, DWX/EC 343 UCB1+SNA+AFL1+RX, No
Pricing
Request a quote
We reply within 24 hours
Product Description
Clint DWX Fan Coil Duct with EC motor. Fan coil duct model (Refrigeration technology / Water cooling system / Fan coils). Principal data: cooling capacity 15.4 kW, sensible cooling capacity 12.6 kW, flow 2649 l/h, airflow 2400 to 3690 m³/h. Supplied under manufacturer part number DWX/EC 343+, HS code 8415.90, country of origin Italy.
Technical Specifications
- Product type
- Fan coil duct model
- Product group
- Water cooling system
- Cooling capacity
- 15.4 kW
- Sensible cooling capacity
- 12.6 kW
- Flow
- 2649 l/h
- Airflow
- 2400 to 3690 m³/h
- Type designation
- DWX/EC 343 UCB1+SNA+AFL1+RX
- Remote control included
- No
- Pipe connection
- 3/4"
- Height
- 275 mm
- Width
- 605 mm
- Length
- 1600 mm
- Number of phases
- 1
- Voltage
- 230 V
- Frequency
- 50 Hz
- Weight
- 78 kg
- Carbon footprint (EPD)
- 169.9016 kg CO2e per pcs
- Country of origin
- Italy
- Customs tariff code (EU CN)
- 84159000
- HS code
- 8415.90
- Manufacturer part number
- DWX/EC 343+
Standards & Compliance
- HS Code
- 8415.90
Cross References
- MPN DWX/EC 343+
More from Clint
Clint
Clint VXM Fan Coil Floor with EC motor - 5.82kW, 4.92kW, 37-54DB(A), No, VXM/VH/EC 573 UCB1+SNA+PP+TP+LX
Clint
Clint DWX Fan Coil Duct with EC motor - 18.2kW, 14.5kW, 3130L/h, 2830-3660M³/h, DWX/EC 363 UCB1+SNA+AFL1+RX, No
DWX/EC 363+
Clint
Clint TXW Fan Coil 4-Way with EC motor - 5.9kW, 4.2kW, 5.9kW, 33-48DB(A), 3/4", No, TXW/EC 184 UCB1+SNA+panel
TXW/EC 184+
Clint
Clint DWX Fan Coil Duct with AC motor - 21.9kW, 16.4kW, 3767L/h, 2800-3640M³/h, DWX 364 UCB1+SNA+AFL1+RX, No
DWX 364+
Clint
Clint TXW Fan Coil 4-Way with AC motor - 5.9kW, 4.2kW, 5.9kW, 33-48DB(A), 3/4", No, TXW 184 UCB1+SNA+panel
TXW 184+
Clint
Clint DWX Fan Coil Duct with EC motor - 9.4kW, 8.1kW, 1610L/h, 960-2000M³/h, DWX/EC 263 UCB1+SNA+AFL1+RX, No
DWX/EC 263+
Clint
Clint HWW Fan Coil Wall with EC motor - 3.02kW, 2.22kW, 3.93kW, 29-43DB(A), 370-645M³/h, 525L/h, HWW/EC 32
Clint
Clint VXM Fan Coil Floor with AC motor - 1.36kW, 1.22kW, 28-44DB(A), No, VXM/VH 123 UCB1+SNA+PP+TP+LX
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy DWX/EC 343+?
- DWX/EC 343+ can be ordered from cballast.com as a Clint catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Clint product?
- The manufacturer part number is DWX/EC 343+.
- What is the HS code for DWX/EC 343+?
- The customs tariff (HS) code for DWX/EC 343+ is 8415.90.
- Who manufactures DWX/EC 343+?
- DWX/EC 343+ is a Clint product in the HVAC & Refrigeration range.
- Is a datasheet available for DWX/EC 343+?
- Yes — the DWX/EC 343+ datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for DWX/EC 343+?
- The minimum order quantity is 1.
- Is DWX/EC 343+ available?
- Yes — DWX/EC 343+ is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
