Product Description

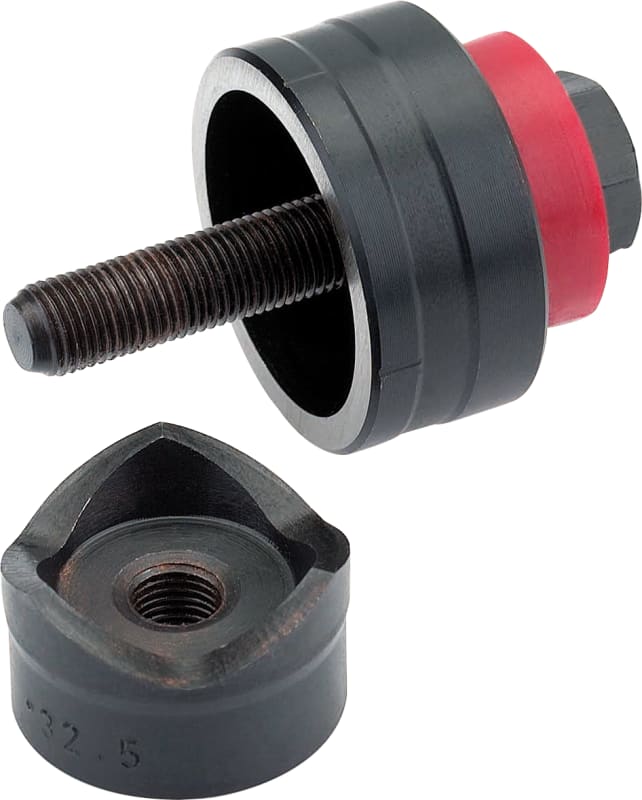

Hydraulic and mechanical round punch and die set producing a 20.4 mm hole for PG13.5 and M20 fittings, cutting steel sheet up to 2.0 mm thick (St 37). Requires a 10.0 mm pilot hole and uses a 9.5 x 50 mm draw stud. Suitable for punching enclosure walls, gland plates and control-panel doors.
Technical Specifications
- Manufacturer part number (MPN)
- 132302
- EAN / GTIN
- 4021103323021
- Sales unit
- pcs
- Model
- Matrix and punch
- Hole diameter
- 20 mm
- Punch shape
- Round
- Material to process
- Steel
- Hydraulic operation
- Yes
- Mechanical operation
- Yes
- Slit punch
- Yes
- Hole width
- 20 mm
- Hole height
- 2 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8207.30
Cross References
- EAN 4021103323021
- SAP 1000629377
- Code 8301685
Product Documentation
Document preview: Cimco 132302 Round Hole Punch and Die Set 20.4 mm PG13.5/M20 — Specification sheet
