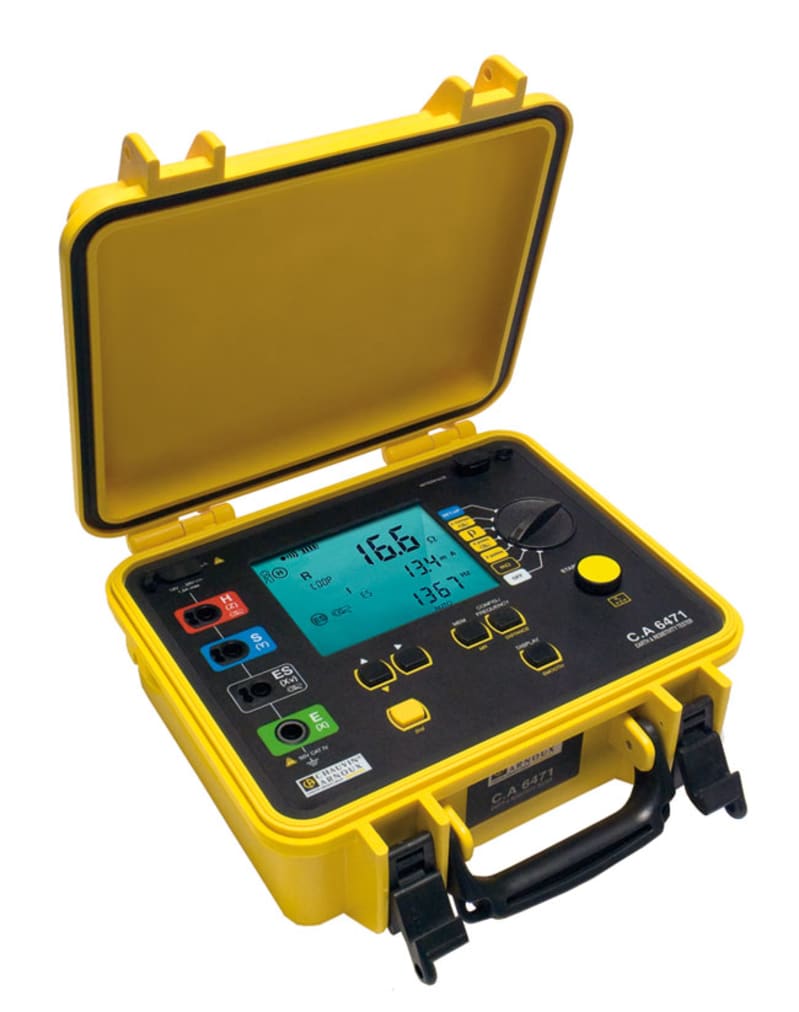

Chauvin Arnoux CA 6471 Earth and Ground Resistance Tester
Pricing
Request a quote
We reply within 24 hours
Product Description
Chauvin Arnoux CA 6471 is a digital earth resistance tester supporting earth plate, soil resistivity, earth loop, selective and specific earthing measurements, as well as low-resistance measurement. Test voltage 0-28 V, test current 0.2-10 A over 41-512 Hz. Internal memory with limit-value indication and interface for data transfer; leakage current measurement supported with adaptor. IP53 protection for field use.
Technical Specifications
- Manufacturer part number (MPN)
- CA 6471 JORDPLADEMÅL
- EAN / GTIN
- 5706445291496
- Sales unit
- pcs
- Indication
- Digital
- Internal memory
- Yes
- Printer connection
- No
- Printer integrated
- No
- Limit value indication
- Yes
- Low resistance measurement
- Yes
- Selective earthing measurement
- Yes
- Earth loop measurement
- Yes
- Specific earthing measurement
- Yes
- Measuring of leakage currents with adaptor
- Yes
- Interface
- Yes
- Bluetooth interface
- No
- Measured value memory
- Yes
- Test voltage
- 0–28 V
- Test current
- 0.2–10 A
- Test frequency
- 41–512 Hz
- Degree of protection (IP)
- IP53
- Country of origin
- France
Standards & Compliance
- HS Code
- 9030.39
Cross References
- EAN 5706445291496
- SAP 1000468993
- Code 8100653
Product Documentation
