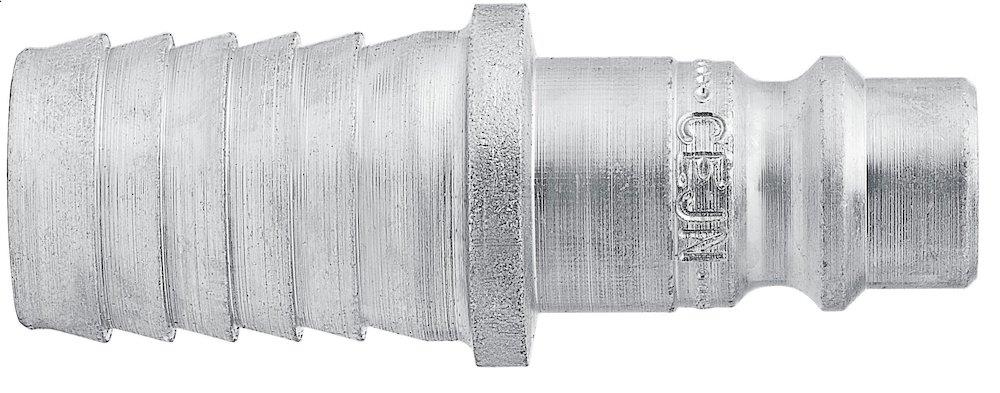

Cejn 320 Series Compressed Air Coupling Nipple with Hose Barb Galvanised Steel - 6.3 mm Hose, DN 7.6
Pricing
Request a quote
We reply within 24 hours
Product Description
Cejn 320 series compressed air quick-coupling nipple in galvanised steel with a hose barb (hose tail) termination for use with the Cejn 320 profile couplings. Hose nozzle 6.3 mm, nominal bore DN 7.6, rated for compressed air service at up to 16 bar with a nominal flow of 2250 l/min. Operating temperature range -20 to 100 degC with an overall length of 41.5 mm.
Technical Specifications
- Product type
- Compressed air quick couplings
- Product group
- Industrial hoses and couplings
- Hose nozzle
- 6.3 mm
- DN dimension
- 7.6
- Connection
- Hose Spigot
- Temperature min
- -20 °C
- Temperature max
- 100 °C
- Working pressure
- 16 bar
- Nominal flow
- 2250 l/min
- Used for
- Compressed air
- Length
- 41.5 mm
- REACH SVHC substance above 0.1%
- Lead
- Sales unit
- Pack
- Carbon footprint (EPD)
- 0.0449 kg CO2e per pcs
- Country of origin
- Sweden
- Customs tariff code (EU CN)
- 73079910
- HS code
- 7307.99
- Manufacturer part number
- 103205002
- GTIN (EAN)
- 7391390044846
Standards & Compliance
- HS Code
- 7307.99
Cross References
- EAN 7391390044846
- MPN 103205002
More from Cejn
Cejn
Cejn 341 Breathing-Air Coupling Nipple 6.3 mm Hose Tail
103415002
Cejn
Cejn 341 Breathing-Air Coupling Nipple 3/8" BSPT
103411154
Cejn
Cejn 331 Quick Coupling eSafe zinc-plated steel/brass studs - 8mm, 7
103312003
Cejn
Cejn 300 Coupling Nipple BSP steel galvanised - 1/4", DN 5.5
103005202
Cejn
Cejn 320 Quick Coupling steel/brass galvanised stream-line - 8 mm, DN 7.6
103202062
Cejn
Cejn SafetyReel Hi-Vis Hose reel High Visibility - Air, 14M, 3/8"
199112168
Cejn
Cejn 342 Coupling Nipple, Zinc-Plated Steel, 1/4" BSPT, DN 7.4
103425152
Cejn
Cejn 477 Coupling nipple coupling acid-resistant - 3/8", 6
104776210
Catalogue entry last verified: 2026-09-30.
Frequently asked questions
- Where can I buy 103205002?
- 103205002 can be ordered from cballast.com as a Cejn catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Cejn product?
- The manufacturer part number is 103205002.
- What is the HS code for 103205002?
- The customs tariff (HS) code for 103205002 is 7307.99.
- Who manufactures 103205002?
- 103205002 is a Cejn product in the Hoses & Flexible Connections range.
- What is the minimum order quantity for 103205002?
- The minimum order quantity is 1.
- Is 103205002 available?
- Yes — 103205002 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
- How do I get a price for 103205002?
- Request a quotation with the quote button on this page or by email to sales@cballast.com — we reply within 24 hours with price, availability and lead time.
