Ceag

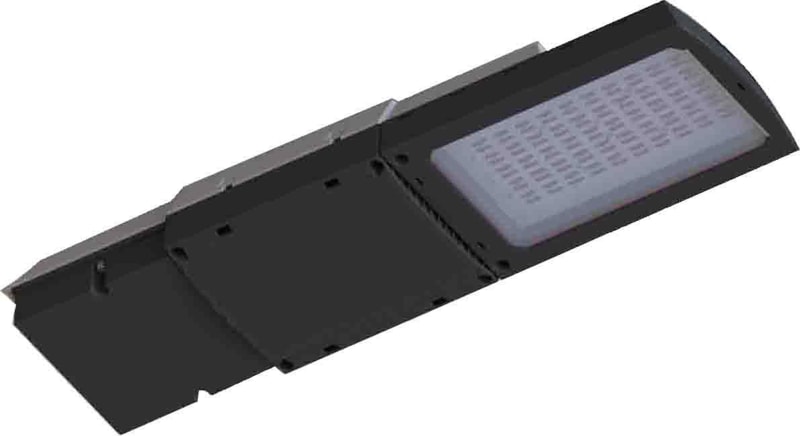

ExLin 3L-1 NE+GFS 750 T1 2/6 M25K CRI70
Part number12320125103EAN / GTIN4251510701826HS code9405.42
Hazardous Area Equipment
ATEX Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Ceag 12320125103 ExLin NE.
Technical Specifications
- Manufacturer part number (MPN)
- 12320125103
- EAN / GTIN
- 4251510701826
- Sales unit
- pcs
- Mounting method
- Wall-/ceiling mounting
- Adjustable
- No
- Lamp type
- LED exchangeable
- With light source
- Yes
- Suitable for number of light sources
- 1
- Lamp holder
- None
- Housing material
- Plastic
- Material cover
- Glass matt/satinized
- Voltage type
- AC/DC
- Nominal voltage
- 110–277 V
- Type of control gear
- LED operating device voltage-controlled
- With control gear
- Yes
- Exchangeable control gear
- No
- Light distributor
- Diffuser lens/optic/panel
- Beam angle
- Open beam/diffuse
- Energy efficiency class of the built-in lamp
- A++, A+, A (LED)
- Highest energy efficiency class of the exchangeable lamp
- A++
- Lowest energy efficiency class of the exchangeable lamp
- E
- Degree of protection (IP)
- IP66
- Impact strength
- IK10
- Protection class according to IEC 61140
- I
- For Ex-zone gas
- 1, 2
- For Ex-zone dust
- 21, 22
- Rated ambient temperature according to IEC 62722-2-1
- -40–55 °C
- Suitable for lamp power
- 22 W
- Max. system power
- 22 W
- Rated luminous flux according to IEC 62722-2-1
- 2.75 lm
- Colour of light
- White
- Colour temperature
- 5000 K
- Power factor
- 0.92
- Constant light output (CLO)
- No
- Width
- 201 mm
- Height/depth
- 115 mm
- Length
- 770 mm
- Type of wiring
- Loop-through wiring included
- Number of poles
- 6
- Conductor cross section
- 6 mm²
- Connection type
- Screwed terminal
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9405.42
Cross References
- EAN 4251510701826
- SAP 1200624019
- Code 83039538
Product Documentation
Document preview: ExLin 3L-1 NE+GFS 750 T1 2/6 M25K CRI70 (12320125103) — Specification sheet
More from Ceag
Ceag
ADE1OM322NPN -1F2-O NP ISO32 TYP7
CAP836894V1
Ceag

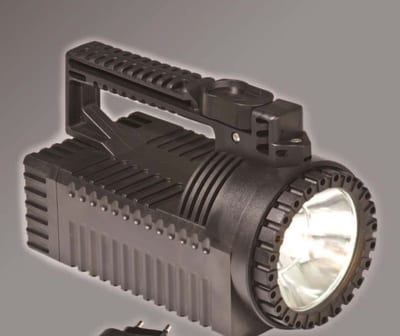

CEAG HE9 Basic LED Ex Handlamp Gas Zones 1 and 2
