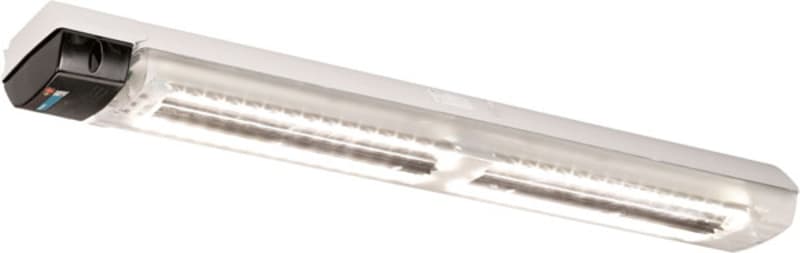

Ex Light Luminaire eLLK 92 800 A LED EMERGENCY LIGHTING

Ceag 12261985611 Ex Luminaire eLLK 92 LED 800 A NE.

Manufacturer part number (MPN)

12261985611

EAN / GTIN

4251510711450

Sales unit

pcs

Rated current

800 A

Mounting method

Ceiling mounting

Adjustable

No

Lamp type

LED exchangeable

With light source

Yes

Suitable for number of light sources

1

Lamp holder

G13

Housing material

Plastic

Material cover

Plastic, transparent

Voltage type

AC/DC

Nominal voltage

110–254 V

Type of control gear

Electronic ballast

With control gear

Yes

Exchangeable control gear

No

Light distributor

Diffuser lens/optic/panel

Beam angle

41-80° - Wide beam

Rated lifetime L70/B50 at 25 °C

100 h

Degree of protection (IP)

IP66

Impact strength

IK10

Protection class according to IEC 61140

I

For Ex-zone gas

1, 2

For Ex-zone dust

21, 22

Rated ambient temperature according to IEC 62722-2-1

-25–55 °C

Suitable for lamp power

26 W

Colour of light

White

Colour temperature

5700 K

Power factor

0.95

Constant light output (CLO)

No

Width

188 mm

Height/depth

130 mm

Length

1500 mm

Type of wiring

Loop-through wiring included

Number of poles

6

Conductor cross section

6 mm²

Connection type

Screwed terminal

Country of origin

Germany

HS Code

9405.40

• EAN 4251510711450
• SAP 1200123256
• Code 81980672
