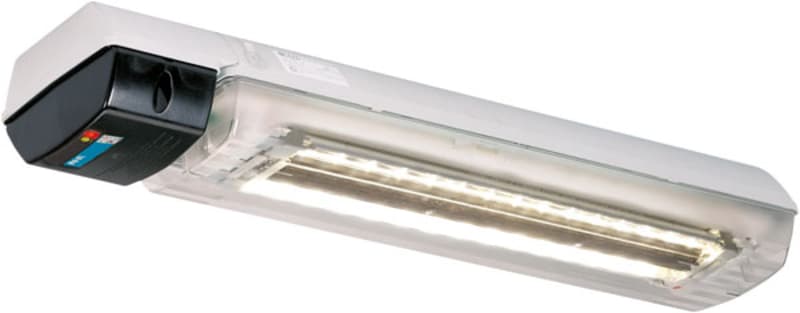

Ex Light Luminaire eLLK 92 400 A LED EMERGENCY LIGHTING

Ceag 12260985611 ELLK92 LED 400A NE 2/2x6 M25M SL 5700K.

Manufacturer part number (MPN)

12260985611

EAN / GTIN

4251510711443

Sales unit

pcs

Rated current

400 A

Mounting method

Ceiling mounting

Adjustable

No

Lamp type

LED exchangeable

With light source

Yes

Suitable for number of light sources

1

Lamp holder

G13

Housing material

Plastic

Material cover

Plastic, transparent

Voltage type

AC/DC

Nominal voltage

110–254 V

Type of control gear

Electronic ballast

With control gear

Yes

Exchangeable control gear

No

Light distributor

Diffuser lens/optic/panel

Beam angle

41-80° - Wide beam

With movement sensor

No

Rated lifetime L70/B50 at 25 °C

100 h

Degree of protection (IP)

IP66

Impact strength

IK10

Protection class according to IEC 61140

I

For Ex-zone gas

1, 2

For Ex-zone dust

21, 22

Rated ambient temperature according to IEC 62722-2-1

-25–55 °C

Suitable for lamp power

17 W

Colour of light

White

Colour temperature

5700 K

Power factor

0.95

Constant light output (CLO)

No

Width

150 mm

Height/depth

150 mm

Length

900 mm

Type of wiring

Loop-through wiring included

Number of poles

6

Conductor cross section

6 mm²

Connection type

Screwed terminal

With light sensor

No

With presence detector

No

Country of origin

Germany

HS Code

9405.40

• EAN 4251510711443
• SAP 1200123259
• Code 81980674
