Ceag

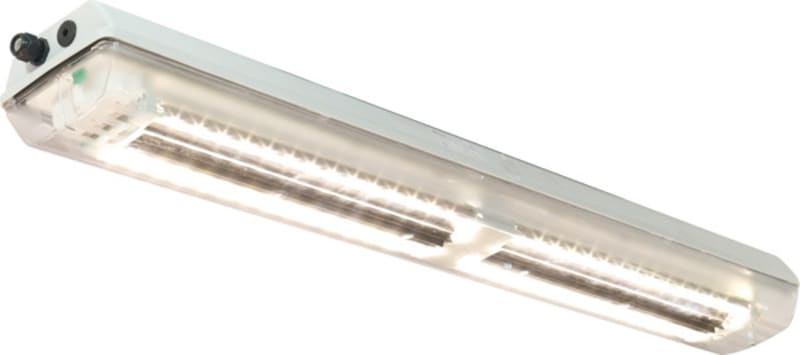

Ex Light Luminaire eLLK 92 800 A LED
Part number12266980611EAN / GTIN4251510711412HS code9405.40
Hazardous Area Equipment
ATEX Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Ceag 12266980611 ELLK92 LED 800A 2/2x6 M25M SL 5700K.
Technical Specifications
- Manufacturer part number (MPN)
- 12266980611
- EAN / GTIN
- 4251510711412
- Sales unit
- pcs
- Rated current
- 800 A
- Mounting method
- Ceiling mounting
- Adjustable
- No
- Lamp type
- LED exchangeable
- With light source
- Yes
- Suitable for number of light sources
- 1
- Lamp holder
- G13
- Housing material
- Plastic
- Material cover
- Plastic, transparent
- Voltage type
- AC/DC
- Nominal voltage
- 110–254 V
- Type of control gear
- Electronic ballast
- With control gear
- Yes
- Exchangeable control gear
- No
- Light distributor
- Diffuser lens/optic/panel
- Beam angle
- 41-80° - Wide beam
- With movement sensor
- No
- Rated lifetime L70/B50 at 25 °C
- 10000 h
- Degree of protection (IP)
- IP66
- Impact strength
- IK10
- Protection class according to IEC 61140
- I
- For Ex-zone gas
- 1, 2
- For Ex-zone dust
- 21, 22
- Rated ambient temperature according to IEC 62722-2-1
- -40–55 °C
- Suitable for lamp power
- 26 W
- Rated luminous flux according to IEC 62722-2-1
- 4330 lm
- Colour of light
- White
- Colour temperature
- 5700 K
- Power factor
- 0.95
- Constant light output (CLO)
- No
- Width
- 188 mm
- Height/depth
- 130 mm
- Length
- 1332 mm
- Type of wiring
- Loop-through wiring included
- Number of poles
- 6
- Conductor cross section
- 6 mm²
- Connection type
- Screwed terminal
- With light sensor
- No
- With presence detector
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9405.40
Cross References
- EAN 4251510711412
- SAP 1200123257
- Code 81980668
Product Documentation
Document preview: Ex Light Luminaire eLLK 92 800 A LED (12266980611) — Specification sheet
