Ceag
EXLIN5L-1 GFS 750 T1 1/6 M25K
Part number12300145101EAN / GTIN4251510723866HS code9405.42
Hazardous Area Equipment
ATEX Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

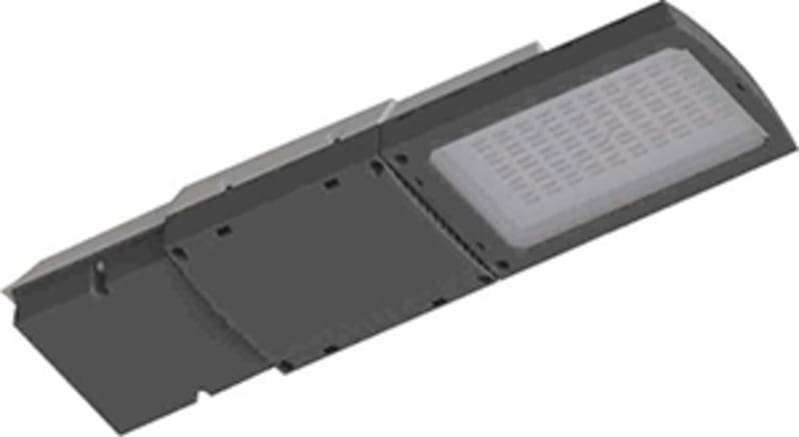

Ceag 12300145101 ExLin EX LED luminaire, Zone 1 and Zone 2. 4580 lumen.
Technical Specifications
- Manufacturer part number (MPN)
- 12300145101
- EAN / GTIN
- 4251510723866
- Sales unit
- pcs
- Mounting method
- Wall-/ceiling mounting
- Adjustable
- No
- Lamp type
- LED exchangeable
- With light source
- Yes
- Suitable for number of light sources
- 1
- Lamp holder
- None
- Housing material
- Plastic
- Material cover
- Glass matt/satinized
- Voltage type
- AC/DC
- Nominal voltage
- 110–277 V
- Type of control gear
- LED operating device voltage-controlled
- With control gear
- Yes
- Exchangeable control gear
- No
- Light distributor
- Diffuser lens/optic/panel
- Beam angle
- 41-80° - Wide beam
- Energy efficiency class of the built-in lamp
- A++, A+, A (LED)
- Highest energy efficiency class of the exchangeable lamp
- A++
- Lowest energy efficiency class of the exchangeable lamp
- E
- Degree of protection (IP)
- IP66
- Impact strength
- IK10
- Protection class according to IEC 61140
- I
- For Ex-zone gas
- 1, 2
- For Ex-zone dust
- 21, 22
- Rated ambient temperature according to IEC 62722-2-1
- -40–55 °C
- Suitable for lamp power
- 44 W
- Max. system power
- 44 W
- Rated luminous flux according to IEC 62722-2-1
- 4.58 lm
- Colour of light
- White
- Colour temperature
- 5000 K
- Power factor
- 0.95
- Constant light output (CLO)
- No
- Width
- 201 mm
- Height/depth
- 115 mm
- Length
- 770 mm
- Type of wiring
- Suitable for loop-through wiring
- Number of poles
- 6
- Conductor cross section
- 6 mm²
- Connection type
- Screwed terminal
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9405.42
Cross References
- EAN 4251510723866
- SAP 1200432398
- Code 82466343
Product Documentation
Document preview: EXLIN5L-1 GFS 750 T1 1/6 M25K (12300145101) — Specification sheet
More from Ceag
Ceag
EXIT CG-S (arrow down) PU
12191020003
Ceag
EEX Plug 3X16A+J 380/415V
GHG5317406V0000
Ceag
Cable Gland M50X1,5 Black 18LG
GHG9601959R0027
Ceag
Locknut M16, Nickel-Plated Brass
CAP 221 694
Ceag
Blind Plug M12, Red, Plastic
GHG 960 1944 R 0101
Ceag

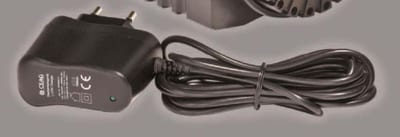

PLUG-IN CHARGER FOR HE9 Basic
