Ceag

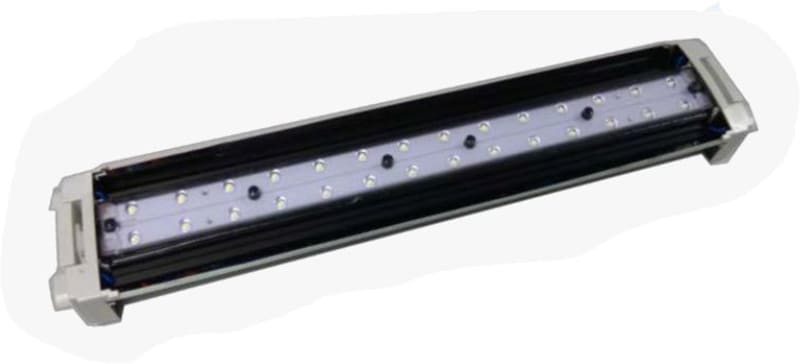

LED cassette 400 A for eLLK 92 (CCL1634697)
Part numberCCL1634697EAN / GTIN6972013600017HS code8539.52
Hazardous Area Equipment
ATEX Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Ceag CCL1634697 ELLK-2-C LED lamp for oppgradering of CEAG eLLK92018/18.
Technical Specifications
- Manufacturer part number (MPN)
- CCL1634697 EAN / GTIN: 6972013600017 HS code: 8539.52 Sales unit: pcs Rated current: 400 A Mounting method: Wall-/ceiling mounting Adjustable: No Lamp type: LED exchangeable With light source: No Suitable for number of light sources: 1 Lamp holder: G13 Housing material: Plastic material cover: Plastic, transparent Voltage type: AC/DC Nominal voltage: 110–254 V Type of control gear: Electronic ballast With control gear: Yes Exchangeable control gear: No Light distributor: Reflector Beam angle: 41-80° - Wide beam Degree of protection (IP): IP66 Impact strength: IK10 Protection class according to IEC 61140: I For Ex-zone gas: 1, 2 For Ex-zone dust: 21, 22 Rated ambient temperature according to IEC 62722-2-1: -25–55 °C Suitable for lamp power: 36 W Rated luminous flux according to IEC 62722-2-1: 2.7 lm Colour of light: White Colour temperature: 5700 K Power factor: 0.95 Constant light output (CLO): No Width: 188 mm Height/depth: 130 mm Length: 1360 mm Type of wiring: Loop-through wiring included Number of poles: 6 Conductor cross section: 6 mm² Connection type: Screwed terminal Country of origin: China
Standards & Compliance
- HS Code
- 8539.52
Cross References
- EAN 6972013600017
- SAP 1200623997
- Code 83039549
Product Documentation
Document preview: LED cassette 400 A for eLLK 92 (CCL1634697) — Specification sheet
More from Ceag
Ceag
EXLIN3L-1 GCS 750 T1 2/6 M20M
12300120111
Ceag
Cable Gland M63X1,5 Black 18LG
GHG9601959R0028
Ceag

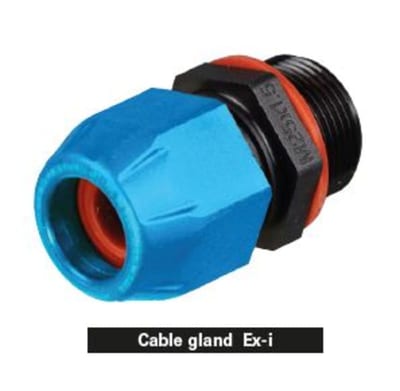

Cable Gland M16X1,5 BLUE 10LG
GHG9601959R0102
Ceag
EXLIN5L-1 GFS 750 T1 1/6 M20M
12300145109
Ceag

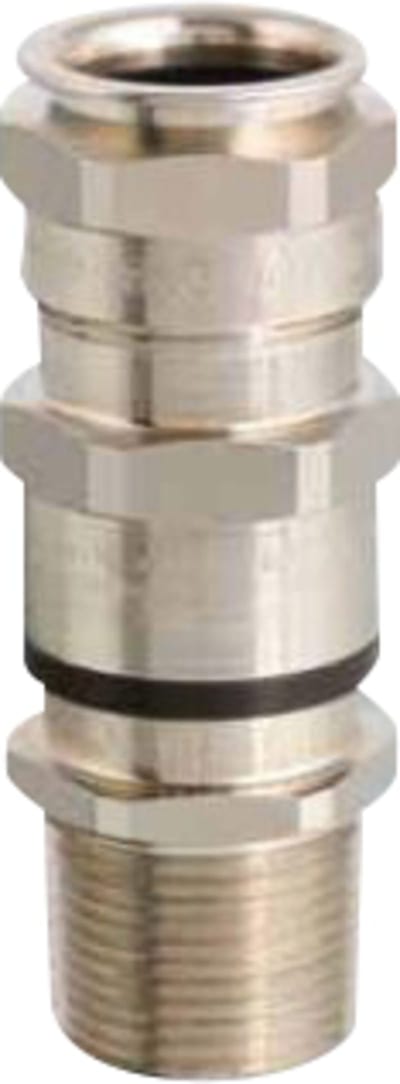

Nipple ADE5F for armoured cable (CAP856904V1)
Ceag

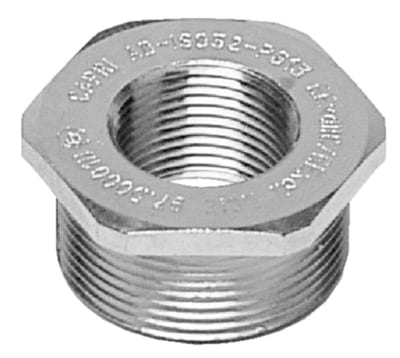

M63 x M40 Reducer M to F NPB
