Ceag

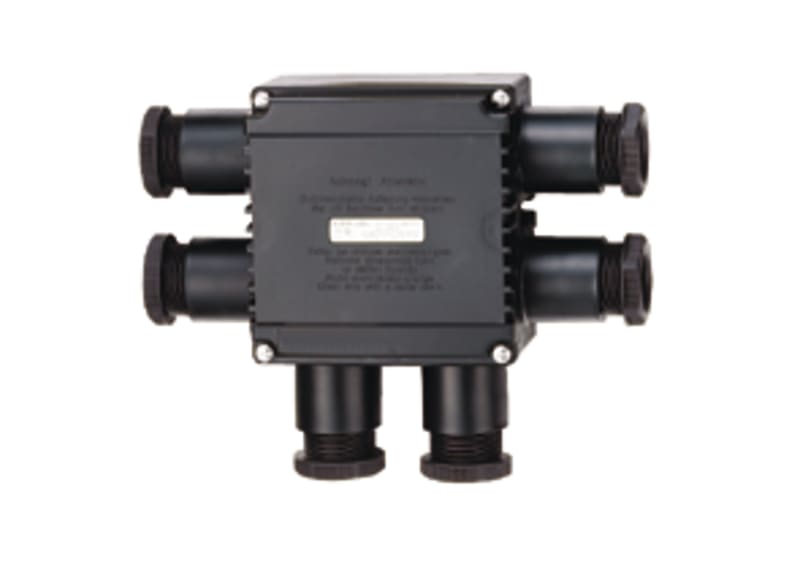

Junction box Ex-e GHG-791, 4xM32
Part numberGHG 791 0201 R0007EAN / GTIN4012539307242HS code8536.90
Enclosures
Junction Boxes
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Ceag GHG 791 0201 R0007 EEx e II T6 / EEx ia IIC T6 plastic junction box with fixed terminals. 4xM32 glands Ø 12-21 mm, IP66. Certificate no.: PTB 00 ATEX 3108.
Technical Specifications
- Manufacturer part number (MPN)
- GHG 791 0201 R0007
- EAN / GTIN
- 4012539307242
- Sales unit
- pcs
- Number of connection clamps
- 12
- Max. conductor cross section
- 2.5 mm²
- Length
- 117.5 mm
- Width
- 113.5 mm
- Depth
- 73.5 mm
- Material plate thickness cabinet
- 3 mm
- Mounting method
- Surface mounted
- Extension possible
- No
- Number of inlets
- 5
- Type of inlet
- Gland nut
- Material
- Plastic
- Halogen free
- Yes
- Surface protection
- Untreated
- Colour
- Black
- Degree of protection (IP)
- IP66
- With cover
- Yes
- Cover attachment
- Screwed
- With transparent cover
- No
- Sealable
- No
- Rated insulation voltage Ui
- 690 V
- Circuit integrity
- None
- Operating temperature
- -20–40 °C
- Explosion-tested version
- Yes
- For Ex-zone gas
- 1, 2
- For Ex-zone dust
- 21, 22
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4012539307242
- SAP 1000008857
- Code 883753
Product Documentation
Document preview: Junction box Ex-e GHG-791, 4xM32 (ghg 791 0201 R0007) — Specification sheet
