Ceag

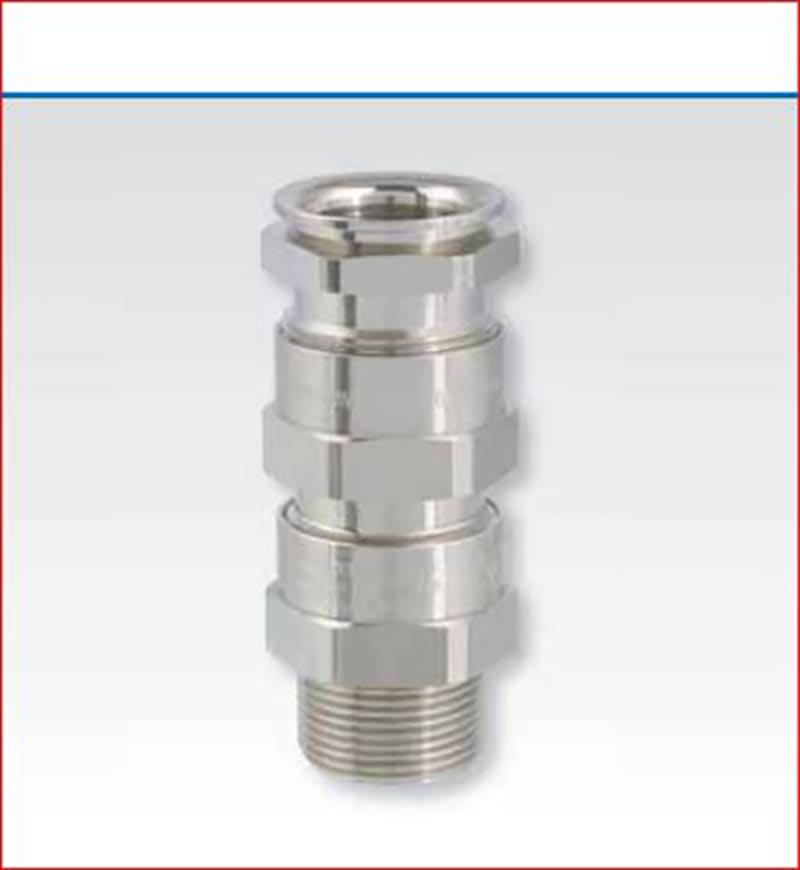

Ex d Nipple ADE4F M16 Ø7-12 mm
Part numberCAP846594V1EAN / GTIN3589350033502HS code8538.90
Electrical Components
Cable Glands
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Ceag CAP846594V1 Metal nipple.
Technical Specifications
- Manufacturer part number (MPN)
- CAP846594V1
- EAN / GTIN
- 3589350033502
- Sales unit
- pcs
- Thread size
- M16
- Diameter
- 7–12 mm
- Pressure-compensating
- No
- Thread type
- Metric
- Nominal thread size metric/PG
- 16
- Pitch thread
- 1.5 mm
- Thread length
- 15 mm
- Wrench width
- 19 mm
- Hexagon angular dimension
- 20.9 mm
- Suitable for cable diameter
- 7–12 mm
- Material
- Metal
- Material quality
- Brass
- Surface protection
- Nickel-plated
- Halogen free
- Yes
- Glass-fibre reinforced
- No
- Degree of protection (IP)
- IP68
- Shock resistant
- Yes
- Bend radius protection/trumpet flare
- No
- With locknut
- No
- Snapping in opening
- No
- Multi seal area
- No
- Flat cable coupling
- No
- With strain relief
- No
- Type of sealing
- Sealing ring
- Separable screw gland
- No
- Operating temperature
- -60–140 °C
- Explosion-tested version
- Yes
- For Ex-zone gas
- 1, 2
- For Ex-zone dust
- 21, 22
- For armoured cable
- No
- EMC-version
- No
- Screened
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3589350033502
- SAP 1200111931
- Code 81983206
Product Documentation
Document preview: Ex d Nipple ADE4F M16 Ø7-12 mm (CAP846594V1) — Specification sheet
