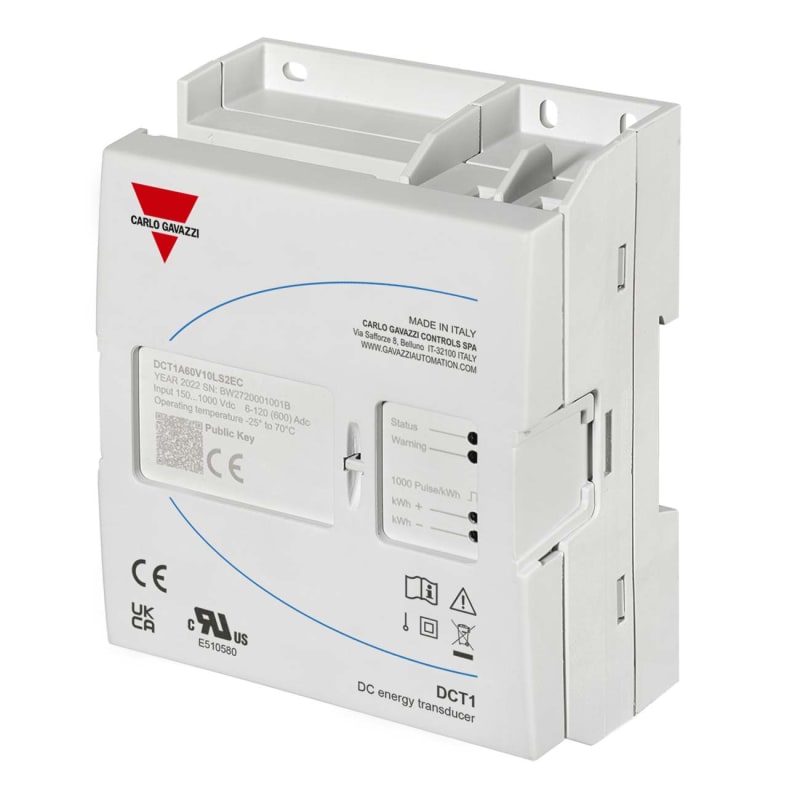

Carlo Gavazzi DCT1A30V10LK1EC DC Energy Meter 300A 1000V SML
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi DCT1A30V10LK1EC is a DC energy transducer for direct measurement of consumption and generation up to 300 A on systems from 150 V DC to 1000 V DC. It communicates via an SML port with a 384-bit signature for tamper-evident metering and accepts 12 or 24 V DC auxiliary power. Typical applications include monitoring of PV strings, DC charging infrastructure and battery installations. CE and cURus certified.
Technical Specifications
- Manufacturer part number (MPN)
- DCT1A30V10LK1EC
- EAN / GTIN
- 8054155004095
- Sales unit
- pcs
- Voltage inputs
- 150 V dc; 200 V dc; 220 V dc; 240 V dc; 300 V dc; 400 V dc; 500 V dc; 600 V dc; 750 V dc; 800 V dc; 1000 V dc
- Current inputs
- direct connection up to 300 A
- Energy metering
- Consumption and generation
- Communication port and protocol
- SML
- Power supply
- Auxiliary power supply 12 V dc; Auxiliary power supply 24 V dc
- Approvals, marks, declarations
- CE (Europe); cURus (North America)
- E-number (NO)
- 8201208
- Nominal voltage
- 1000 V
- Power consumption
- 1 W
- Type of primary energy
- Current
- Min. depth of built-in installation box
- 0 mm
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 9028.30
Cross References
- EAN 8054155004095
- SAP 1200714249
- Code 83813623
Product Documentation
