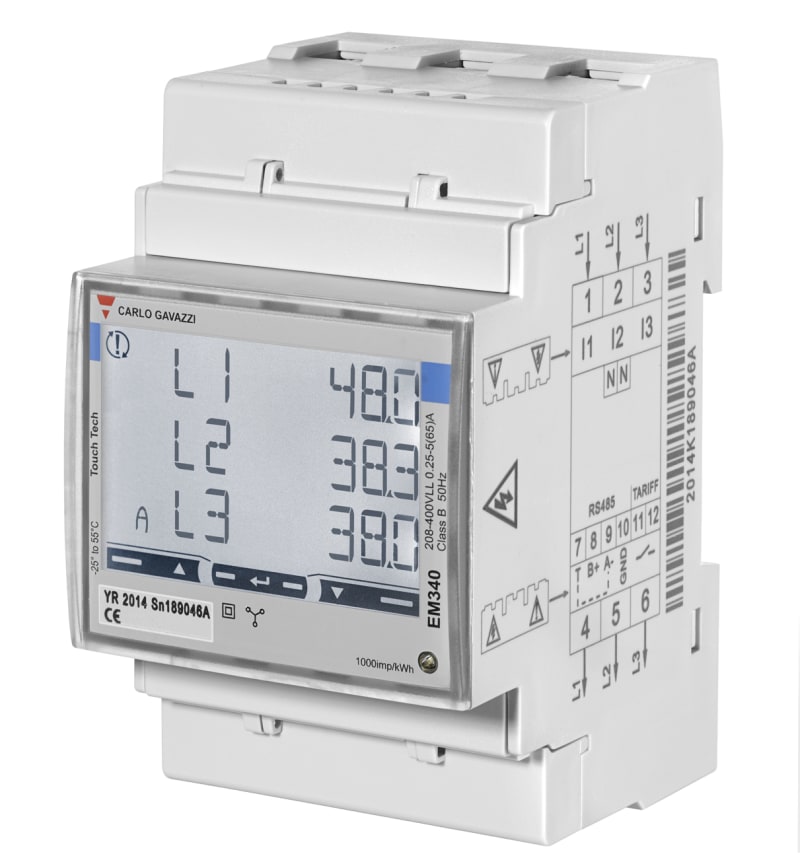

Carlo Gavazzi EM340 Three-Phase 65 A MID Energy Analyser with Pulse Output

Carlo Gavazzi EM340DINAV23XO1PFA is a three-phase DIN-rail energy analyser certified to the Measuring Instruments Directive for fiscal metering. It accepts direct connection up to 5 (65) A, 120–230 V L-N / 208–400 V L-L, 50 Hz, and reports active and reactive energy on a digital display. A configurable pulse output supports remote consumption logging. The unit is self-powered, IP51-rated, three modular widths wide, and carries CE, MID and UKCA marks.

Manufacturer part number (MPN)

EM340DINAV23XO1PFA

Sales unit

pcs

El-nummer (NO)

8200402

ETIM class

SC001506

Voltage inputs

2-phase (3-wire), 120/240 V; 3-phase (4-wire), 120/208 V; 3-phase (4-wire), 127/220 V; 3-phase (4-wire), 220/380 V; 3-phase (4-wire), 230/400 V; 3-phase (3-wire), 240 V L-L; 3-phase (3-wire), 380 V L-L; 3-phase (3-wire), 400 V L-L

Frequency

50Hz

Energy metering

Consumption

Static output

Pulse

Power supply

Self power supply

Approvals, marks, declarations

CE (Europe); MID (Europe, fiscal metering); UKCA (UK)

E-number (NO)

8200402

E-number (SE)

0934001

Mounting method

DRA (DIN-rail adaptor)

Model

Direct measurement

Suitable for

Purchase

Type of indication

Digital

Max. current (Imax)

65 A

Width in number of modular spacings

3

Number of positions total (counter)

8

Type of meter

Electronic

Degree of protection (IP)

IP51

Type of interface

None

Energy type

Effective power and reactive power

Tariff type

Two-tariff

Tariff control

External

Approval

Measuring Instruments Directive

Pulse output

Electrical

Accuracy class

B

Pole type

Three conductor/four conductor

Nominal current (In)

5 A

Country of origin

China

HS Code

9030.90
