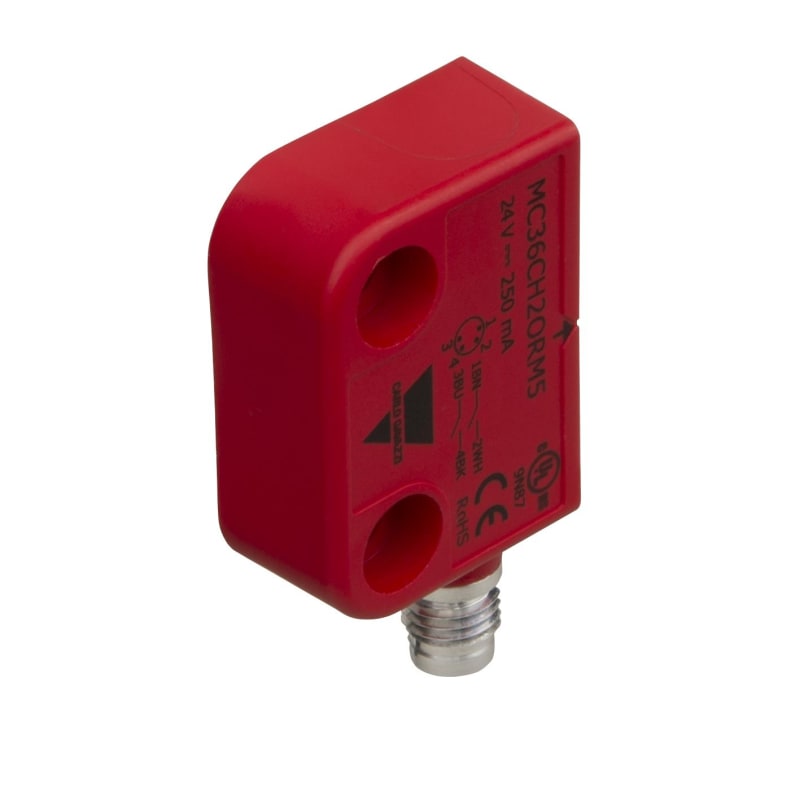

Carlo Gavazzi Safety Magnetic Sensor 2NO, M8 Plug, LED
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi MC36CH2ORM5L rectangular plastic safety magnetic sensor with LED indicator, M8 right-exit connector and 2NO reed-contact output. Switch-on distance 5 mm, switch-off 15 mm, max switching current 250 mA at 12/24 Vac/dc, IP67 protection. Performance Level e per EN ISO 13849-1. Supplied in packs of 5.
Technical Specifications
- Manufacturer part number (MPN)
- MC36CH2ORM5L
- EAN / GTIN
- 5709870398426
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Switch ON distance
- 5 mm
- Switch OFF distance
- 15 mm
- Output type
- Reed switch
- Max switching current
- 250 mA
- Connection type
- Connector M8
- Housing type
- Rectangular
- Degree of protection
- IP67
- E-number (NO)
- 4367686
- Number of contact energized outputs with signalling function
- 2
- Type of actuation
- Magnet
- Type of electric connection
- Connector M8
- Type of switching output
- Dry reed contact
- Width sensor
- 26 mm
- Height of sensor
- 13 mm
- Length of sensor
- 36 mm
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Housing material
- Plastic
- Coating housing
- Uncoated
- Protected switch distance OFF
- 15 mm
- Protected switch distance ON
- 5 mm
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- Level e
- Max. output current at protected output
- 0.25 mA
- Min. output current
- 0 mA
- Voltage type
- AC/DC
- Switching distance
- 5 mm
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 9030.90
Cross References
- EAN 5709870398426
- SAP 1200583122
- Code 82959245
Product Documentation
More from Carlo Gavazzi
Carlo Gavazzi
Inductive transmitter M18 PNP NO 2M cable (ICB18S30F12PO)
Carlo Gavazzi
Photoelectric Sensor IO link BGS 200mm cable IP69K (PD30ETBI20BPA2IO)
Carlo Gavazzi
Meter Wireless MBUS INT ANT (EM24DINAV23XW1IX)
Carlo Gavazzi
Photoelectric Sensor laser direct IO-Link 600mm (LD30CPBR60BPA2IO)
Carlo Gavazzi
Auxiliary Relay 11-Pin 24VAC
RCP1100324VAC
Carlo Gavazzi
Optical Grensesnitt Adapter
OPTOPROG
Carlo Gavazzi
SSR 3-F. 600VAC/75A 4-32VDC (RZ3A60D75P)
Carlo Gavazzi
Photoelectric Sensor laser direct IO-Link 600mm (LD30CPBR60BPM5IO)
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy MC36CH2ORM5L?
- MC36CH2ORM5L can be ordered from cballast.com as a Carlo Gavazzi catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Carlo Gavazzi product?
- The manufacturer part number is MC36CH2ORM5L.
- What is the HS code for MC36CH2ORM5L?
- The customs tariff (HS) code for MC36CH2ORM5L is 9030.90.
- Who manufactures MC36CH2ORM5L?
- MC36CH2ORM5L is a Carlo Gavazzi product in the Safety & Detection range.
- Is a datasheet available for MC36CH2ORM5L?
- Yes — the MC36CH2ORM5L datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for MC36CH2ORM5L?
- The minimum order quantity is 1.
- Is MC36CH2ORM5L available?
- Yes — MC36CH2ORM5L is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
