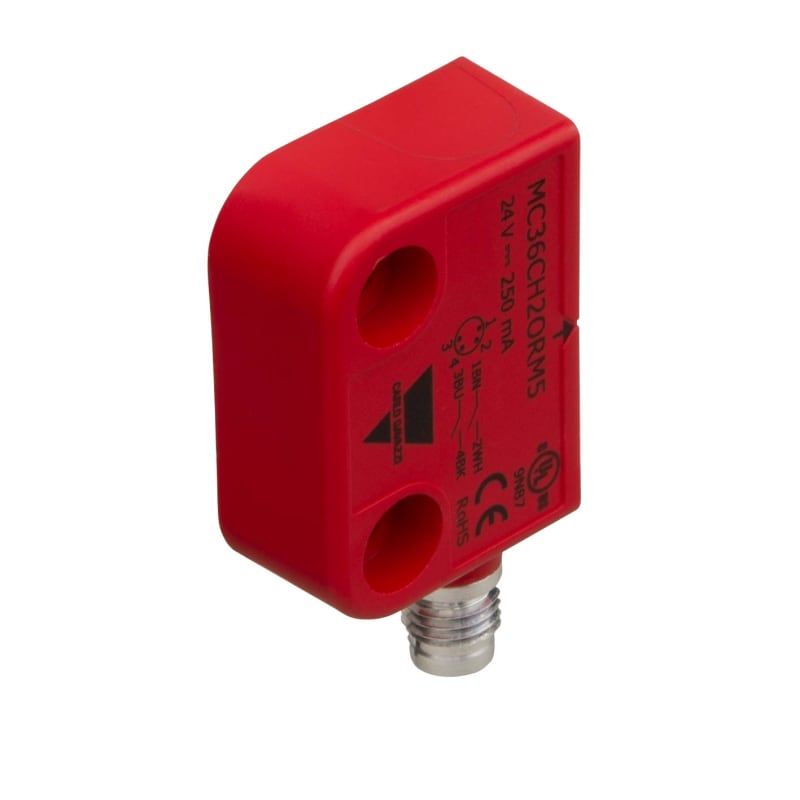

Carlo Gavazzi MC36 rectangular magnetic safety sensor with M8 plug
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi MC36CH1O1CRM5 is a rectangular plastic-housed magnetic safety sensor with a right-exit M8 connector. It provides 1 NO + 1 NC dry reed outputs rated 12/24 VAC/DC, 250 mA max, 6 W max switching power. Switch-on distance 5 mm, switch-off distance 15 mm; rated IP69K over -25 to +80 °C. Meets Performance Level e per EN ISO 13849-1.
Technical Specifications
- Manufacturer part number (MPN)
- MC36CH1O1CRM5
- EAN / GTIN
- 5709870398419
- Sales unit
- pcs
- Switch ON distance
- 5 mm
- Switch OFF distance
- 15 mm
- Output type
- Reed switch
- Max switching current
- 250 mA
- Connection type
- Connector M8
- Housing type
- Rectangular
- Degree of protection
- IP69K
- E-number (NO)
- 4367677
- Number of contact energized outputs with signalling function
- 2
- Type of actuation
- Magnet
- Type of electric connection
- Connector M8
- Type of switching output
- Dry reed contact
- Width sensor
- 26 mm
- Height of sensor
- 13 mm
- Length of sensor
- 36 mm
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Housing material
- Plastic
- Coating housing
- Uncoated
- Protected switch distance OFF
- 15 mm
- Protected switch distance ON
- 5 mm
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- Level e
- Max. output current at protected output
- 0.25 mA
- Min. output current
- 0 mA
- Voltage type
- AC/DC
- Switching distance
- 5 mm
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 9030.90
Cross References
- EAN 5709870398419
- SAP 1200583113
- Code 82959143
Product Documentation
More from Carlo Gavazzi
Carlo Gavazzi
Energy meter direct TCP/IP
EM24DINAV23XE1X
Carlo Gavazzi

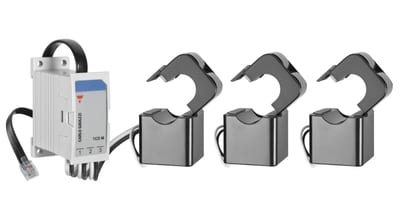

3 x delbare transformers 400A
TCD3M40080CMX
Carlo Gavazzi
Power supply 50W 24VDC
SPDM24501B
Carlo Gavazzi
Photoelectric Sensor IO link BGS 200mm M8 plug (PD30CTBR20BPM5IO)
Carlo Gavazzi
SSR 3-F. 400VAC/75A 24-275VAC (RZ3A40A75)
Carlo Gavazzi
Network Analyser AC/DC RS485 (CPA3001LS1X)
Carlo Gavazzi
SMH 1-10V dimmer (SH2D10V424)
Carlo Gavazzi
Photoelectric Sensor IO link BGS 350mm M8 plug
PD30CTBR35BPM5IO
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy MC36CH1O1CRM5?
- MC36CH1O1CRM5 can be ordered from cballast.com as a Carlo Gavazzi catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Carlo Gavazzi product?
- The manufacturer part number is MC36CH1O1CRM5.
- What is the HS code for MC36CH1O1CRM5?
- The customs tariff (HS) code for MC36CH1O1CRM5 is 9030.90.
- Who manufactures MC36CH1O1CRM5?
- MC36CH1O1CRM5 is a Carlo Gavazzi product in the Safety & Detection range.
- Is a datasheet available for MC36CH1O1CRM5?
- Yes — the MC36CH1O1CRM5 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for MC36CH1O1CRM5?
- The minimum order quantity is 1.
- Is MC36CH1O1CRM5 available?
- Yes — MC36CH1O1CRM5 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
