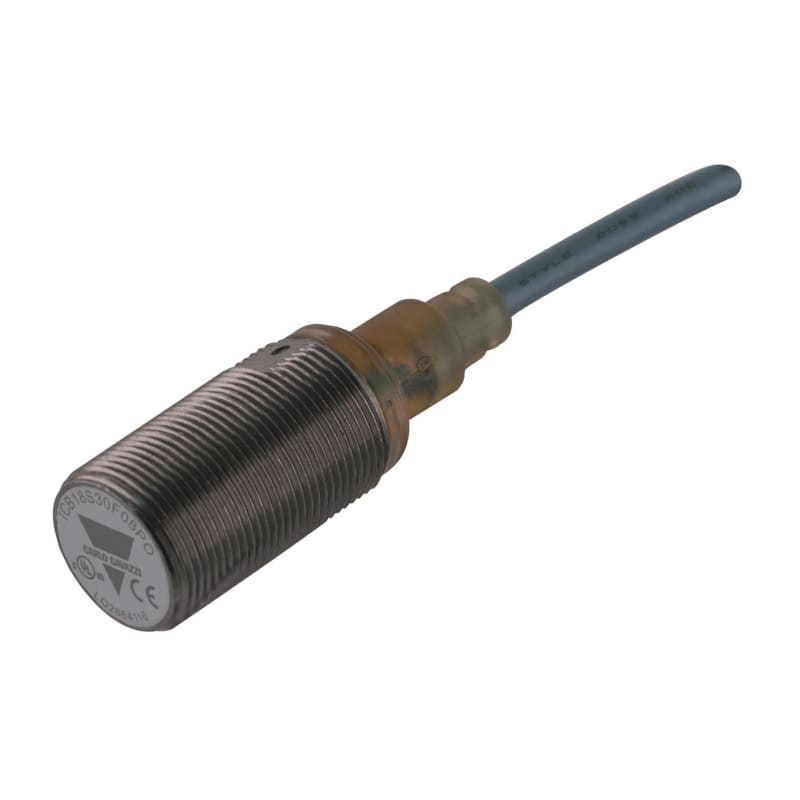

Inductive Transmitter ICB18S30F08PO
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi ICB18S30F08PO Manufacturer description: Inductive proximity sensor, M18 Nickel-Plated Brass, 2m cable, Sn 8mm, Flush mount, Short body, PNP NO output, Supply voltage 10-36Vdc, Max output current 200 mA, Max switching frequency 1,5 kHz, Operating temperature -25C - +70C, IP67. ICB18S30F08PO INDUCTIVE TRANSMITTER.
Technical Specifications
- Manufacturer part number (MPN)
- ICB18S30F08PO
- EAN / GTIN
- 8030956073447
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Rated operating distance
- 8 mm
- Installation type
- Flush
- Diameter
- M18
- Output type
- PNP
- Output function
- Normally Open (NO)
- Connection type
- Cable
- Housing type
- Cylindrical, threaded barrel
- Housing material
- Metal
- Rated power supply
- 10 V ... 36 V
- E-number (NO)
- 4367659
- Length of sensor
- 30 mm
- Diameter sensor
- 18 mm
- Mechanical mounting condition for sensor
- Concise
- Switching distance
- 8 mm
- Type of switch function
- Normally open contact (NO)
- Type of switching output
- PNP
- Type of electric connection
- Cable
- Number of semiconductor outputs with signalling function
- 1
- Number of protected semiconductor outputs
- 1
- Type of actuation
- Metallic Target
- Type of interface
- None
- Type of interface for safety communication
- None
- Construction type housing
- Cylinder, screw-thread
- Coating housing
- Nickel-plated
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Max. output current at protected output
- 200 mA
- Voltage type
- DC
- Switching frequency
- 1500 Hz
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Interference resistance to magnetic fields
- Immune against magnetic DC- and AC-field
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 9030.90
Cross References
- EAN 8030956073447
- SAP 1200292872
- Code 82263999
Product Documentation
More from Carlo Gavazzi
Carlo Gavazzi
Split-core current transformer 2000 (CTD8S20005AXXX)
Carlo Gavazzi

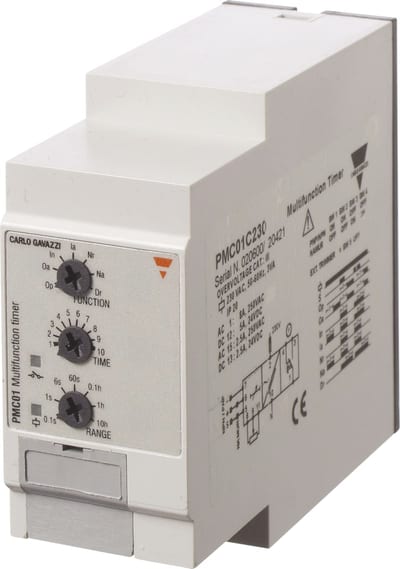

Time Relay Multifunction (PMC01D024)
Carlo Gavazzi

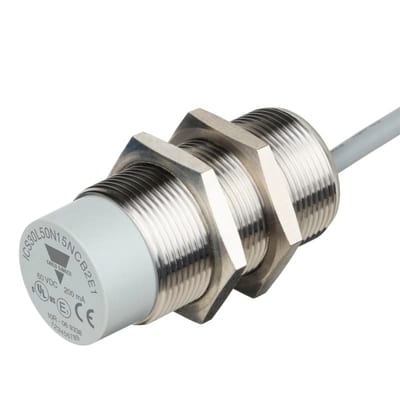

IND Transmitter M30 PNP NO Unshielded 2M Cable
4316524
Carlo Gavazzi

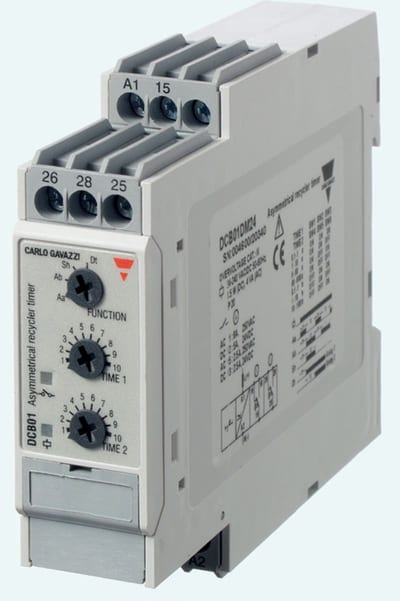

TIME RELAY ASYM. Pulse generator (DCB01DM24)
Carlo Gavazzi

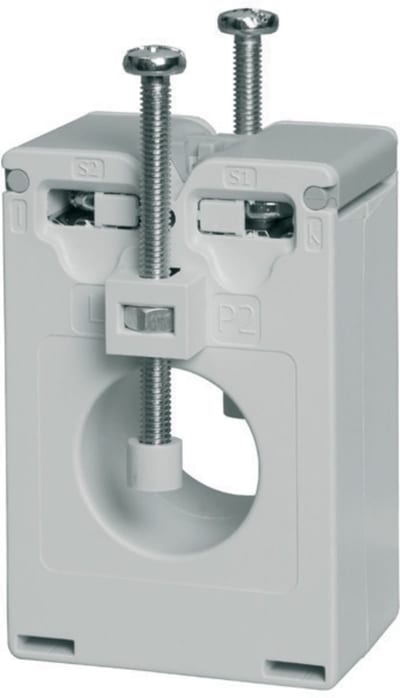

Current Transformer 200/5A (CTD1X2005AXXX)
Carlo Gavazzi

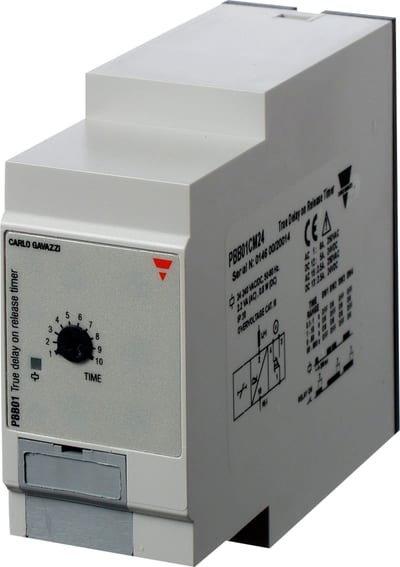

Time Relay Off-delay (PBB01DM24)
Carlo Gavazzi

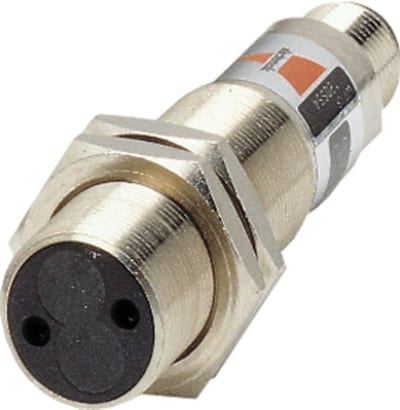

Photoelectric Sensor, Direct M18,PNP,NO+NC,Plug
EO1804PPAS-1
Carlo Gavazzi

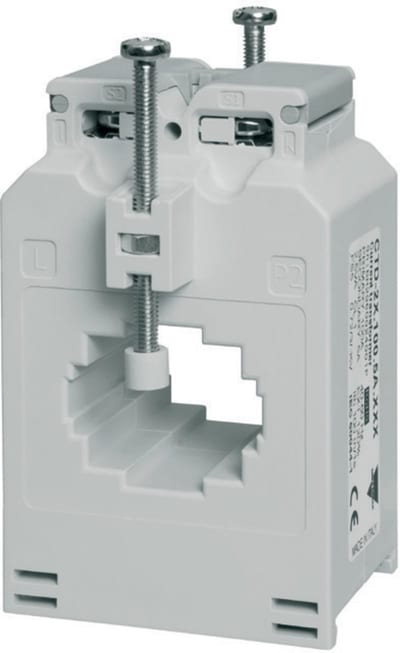

Current Transformer 40/5A
