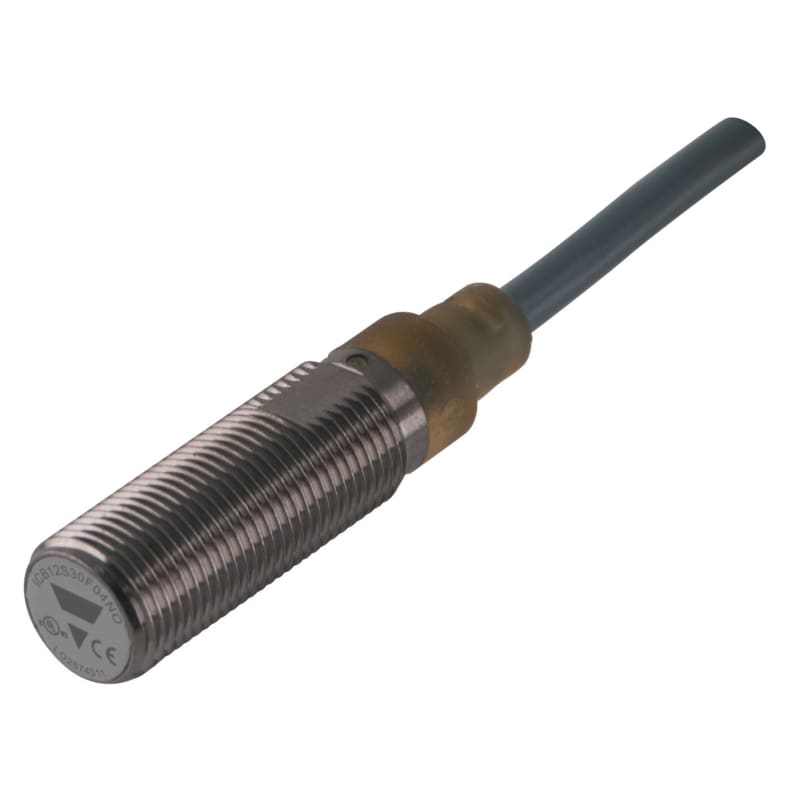

Inductive Transmitter ICB12S30F04PO
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi ICB12S30F04PO Manufacturer description: Inductive proximity sensor, M12 Nickel-Plated Brass, 2m cable, Sn 4mm, Flush mount, Short body, PNP NO output, Supply voltage 10-36Vdc, Max output current 200 mA, Max switching frequency 2 kHz, Operating temperature -25C - +70C, IP67. ICB12S30F04PO INDUCTIVE TRANSMITTER.
Technical Specifications
- Manufacturer part number (MPN)
- ICB12S30F04PO
- EAN / GTIN
- 8030956073102
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Rated operating distance
- 4 mm
- Installation type
- Flush
- Diameter
- M12
- Output type
- PNP
- Output function
- Normally Open (NO)
- Connection type
- Cable
- Housing type
- Cylindrical, threaded barrel
- Housing material
- Metal
- Rated power supply
- 10 V ... 36 V
- E-number (NO)
- 4367653
- Length of sensor
- 30 mm
- Diameter sensor
- 12 mm
- Mechanical mounting condition for sensor
- Concise
- Switching distance
- 4 mm
- Type of switch function
- Normally open contact (NO)
- Type of switching output
- PNP
- Type of electric connection
- Cable
- Number of semiconductor outputs with signalling function
- 1
- Number of protected semiconductor outputs
- 1
- Type of actuation
- Metallic Target
- Type of interface
- None
- Type of interface for safety communication
- None
- Construction type housing
- Cylinder, screw-thread
- Coating housing
- Nickel-plated
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Max. output current at protected output
- 200 mA
- Voltage type
- DC
- Switching frequency
- 2000 Hz
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Interference resistance to magnetic fields
- Immune against magnetic DC- and AC-field
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 9030.90
Cross References
- EAN 8030956073102
- SAP 1200292730
- Code 82262642
Product Documentation
