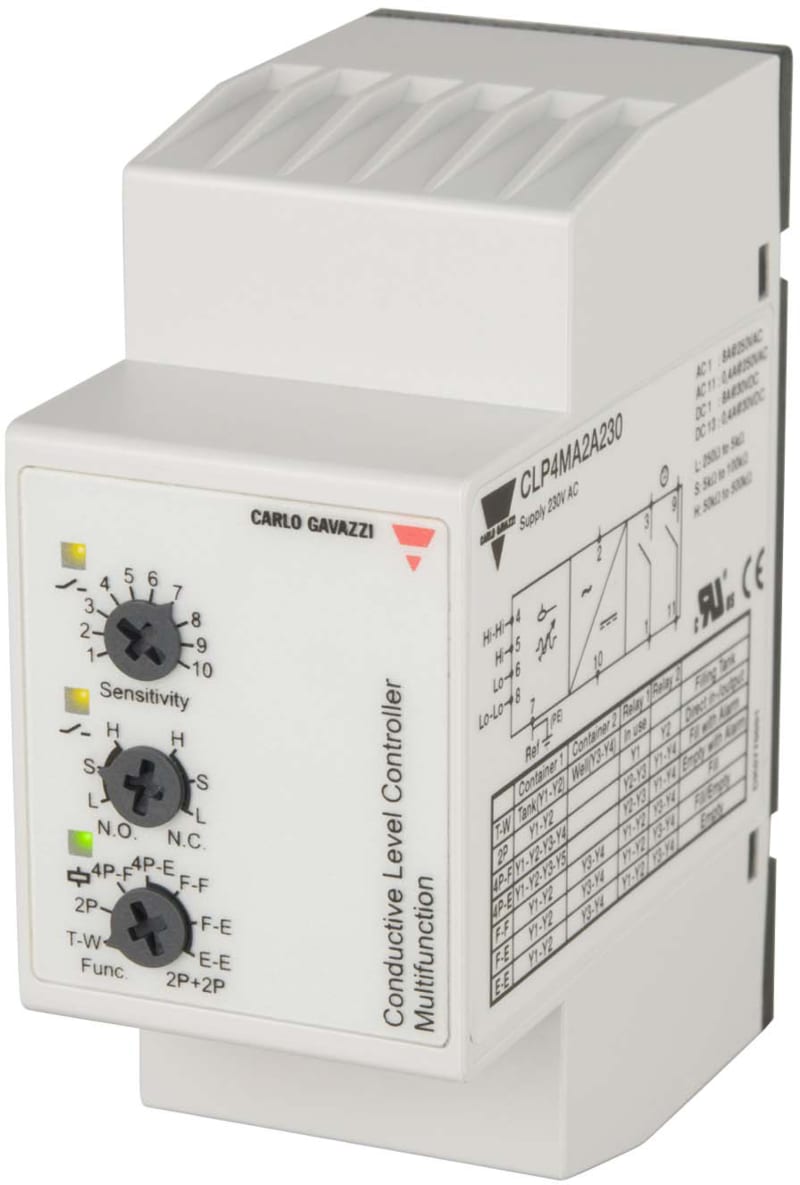

Carlo Gavazzi CLP4MA2A230 Conductive Level Controller 2+2 Level 230 V AC

Carlo Gavazzi CLP4MA2A230 conductive 2- to 4-point level controller with plug-in mounting for fill and empty duty. Sensitivity 250 ohm to 500 kohm, two SPST relay outputs, 230 V AC supply. Housing 35.5 x 81 x 60.2 mm, IP20.

Manufacturer part number (MPN)

CLP4MA2A230

EAN / GTIN

5709870381435

Sales unit

pcs

Adjustable sensitivity

No

Rated operating voltage

0 V ... 0 V

Connection type

Plug-in connection

E-number (NO)

4367630

E-number (SE)

3864384

Operating voltage AC 50 Hz

0–5 V

Operating voltage AC 60 Hz

0–5 V

Supply voltage AC 50 Hz

195–265 V

Supply voltage AC 60 Hz

195–265 V

Rated switch current

8 A

Voltage type (operating voltage)

AC

Type of electric connection

Plug-in connection

Rated control supply voltage AC 50 Hz

230 V

Rated control supply voltage AC 60 Hz

230 V

Voltage type for actuating

AC

Number of inputs for electrodes

4

Min. adjustable operate delay time

1 s

Max. permitted operate delay time

1 s

Min. adjustable off-delay time

1 s

Max. permitted off-delay time

1 s

Number of contacts as normally open contact

1

Number of contacts as change-over contact

1

Physical measurement principle

Conductive

Width

35.5 mm

Height

81 mm

Depth

60.2 mm

Country of origin

Italy

HS Code

9030.90

• EAN 5709870381435
• SAP 1000250102
• Code 81134624
