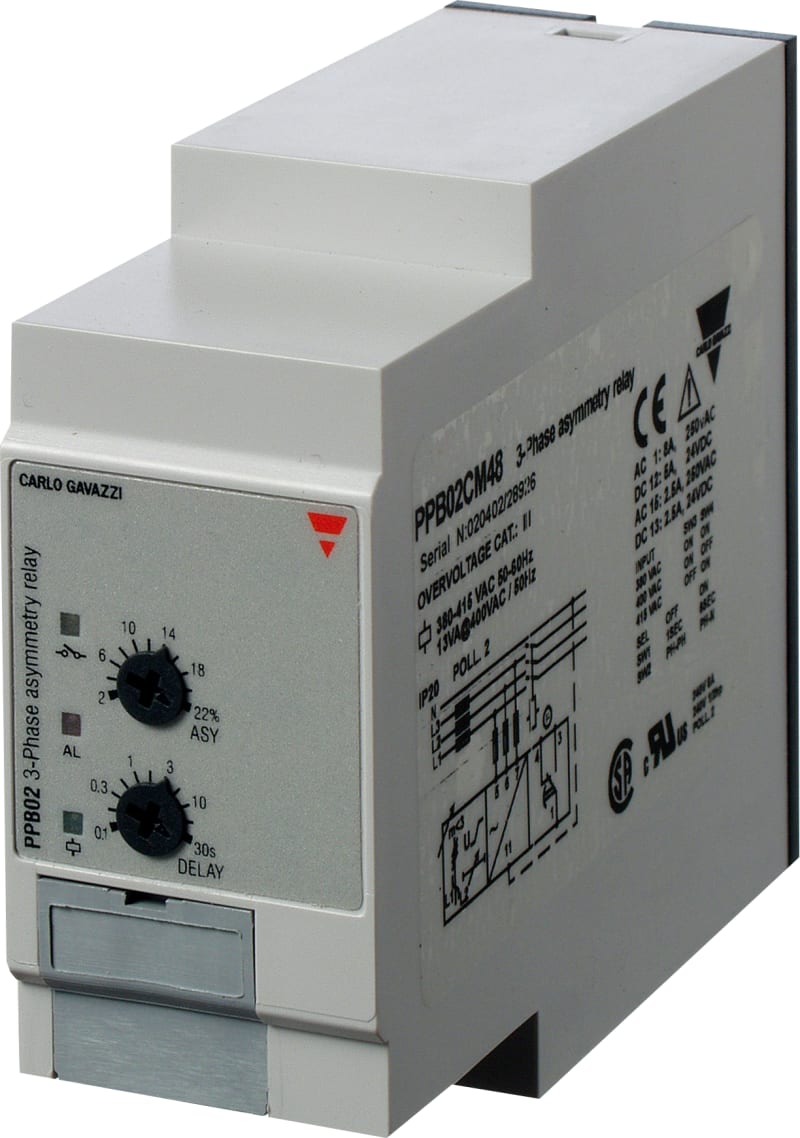

PHASE Asymmetrirele (PPB02CM48)

Carlo Gavazzi PPB02CM48 Manufacturer description: 3-phase monitoring relay for phase loss, sequence, asymmetry, nominal range 380-480 V AC, delay on alarm 0.1-30 s, SPDT relay output, regenerated voltage detection, 36 mm plug-in housing. PPB02CM48 Phase monitoring relay.

Manufacturer part number (MPN)

PPB02CM48

EAN / GTIN

8030956001037

Sales unit

pcs

Mounting

Plug-in

Function

Phase loss; Phase sequence; Voltage asymmetry

3-phase voltage range

380-480 Vac; 440-480 Vac

Frequency range

50-60 Hz

Output

1 relay

Time delay

No delay adjustment

Approvals, marks, declarations

for Europe; for North America; for Australia

Setting method through NFC

No

E-number (NO)

4367593

E-number (SE)

3864699

Type of electric connection

Plug-in connection

Rated control supply voltage AC 50 Hz

380–415 V

Rated control supply voltage AC 60 Hz

380–415 V

Voltage type for actuating

AC

Voltage measuring range

380–415 V

Min. adjustable delay-on energization time

0 s

Min. adjustable off-delay time

0.1 s

Max. permitted off-delay time

30 s

Number of contacts as change-over contact

1

Width

36 mm

Height

80 mm

Depth

94 mm

Country of origin

Italy

HS Code

9030.90

• EAN 8030956001037
• SAP 1000140287
• Code 848591
