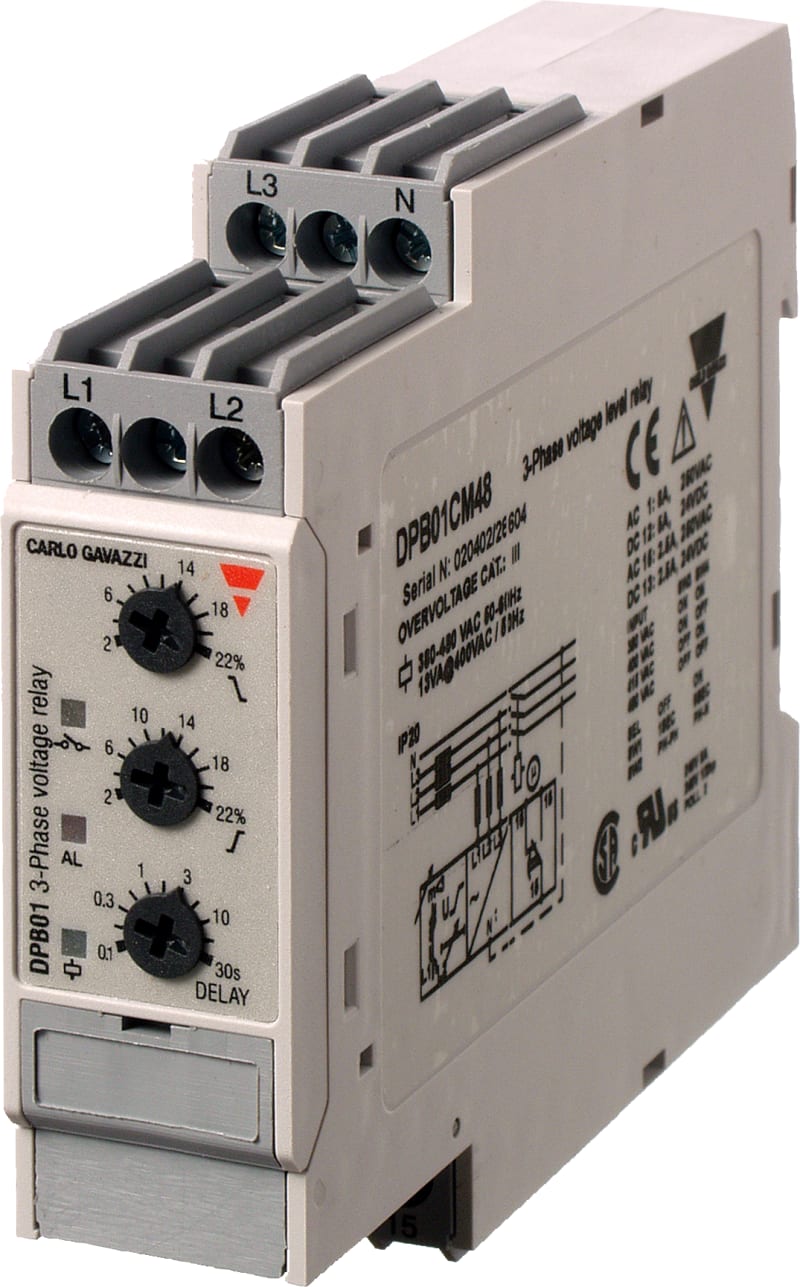

3-Phase Supply Monitoring Relay (DPB01CM48)

Carlo Gavazzi DPB01CM48 Manufacturer description: 3-phase monitoring relay for phase loss, sequence, over or undervoltage, nominal range 380-480 V AC, delay on alarm 0.1-30 s, SPDT relay output, regenerated voltage detection, 22.5 mm DIN-rail housing. DPB01CM48 Phase monitoring relay.

Manufacturer part number (MPN)

DPB01CM48

EAN / GTIN

8030956000214

Sales unit

pcs

Package quantity

5 pcs

Mounting

Industrial DIN-rail

Function

Phase loss; Phase sequence; Overvoltage; Undervoltage

3-phase voltage range

380-480 Vac; 440-480 Vac

Frequency range

50-60 Hz

Output

1 relay

Time delay

Delay on alarm

Approvals, marks, declarations

for Europe; for North America; for China; for Australia

Setting method through NFC

No

E-number (NO)

4367522

E-number (SE)

3864692

Type of electric connection

Screw connection

Rated control supply voltage AC 50 Hz

380–480 V

Rated control supply voltage AC 60 Hz

380–480 V

Voltage type for actuating

AC

Voltage measuring range

380–480 V

Min. adjustable delay-on energization time

0 s

Min. adjustable off-delay time

0.1 s

Max. permitted off-delay time

30 s

Number of contacts as change-over contact

1

Width

22.5 mm

Height

83.5 mm

Depth

99.5 mm

Country of origin

Italy

HS Code

9030.90

• EAN 8030956000214
• SAP 1000140299
• Code 848627
