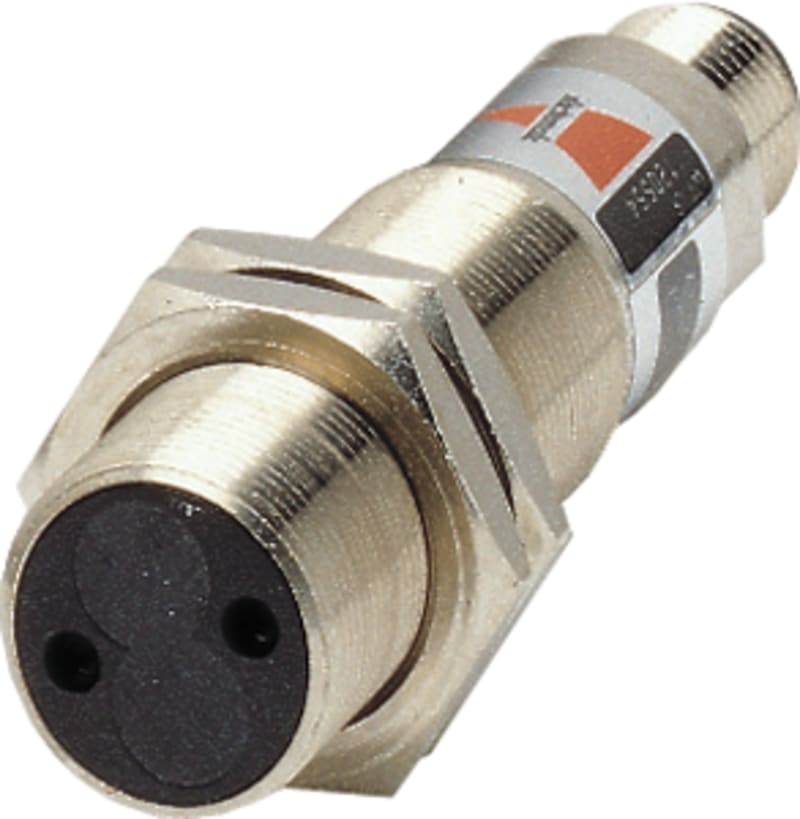

Photoelectric Sensor, Direct M18,NPN,NO+NC,CAB
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi EO1804NPAS Manufacturer description: Diffuse-reflective Photoelectric Sensor, range 400 mm, infrared modulated light 880nm, Power Supply 10-40VDC, NPN, NO+NC, 2m Cable. EO1804NPAS Photocells with accessories.
Technical Specifications
- Manufacturer part number (MPN)
- EO1804NPAS
- EAN / GTIN
- 5709870004167
- Sales unit
- pcs
- Rated operating distance (Sn)
- 0 mm ... 400 mm
- Output type
- NPN
- Output function
- Complementary (NO+NC)
- Connection Type
- Cable
- Housing type
- Cylindrical, threaded barrel
- Housing material
- Metal
- Light source
- Infrared light
- Sensing mode
- Light/dark switching
- Degree of protection
- IP67
- Rated power supply
- 10 V ... 40 V
- E-number (NO)
- 4351086
- E-number (SE)
- 3834910
- Voltage type
- DC
- Max. output current
- 200 mA
- Switching frequency
- 120 Hz
- Number of semiconductor outputs with signalling function
- 2
- Number of protected semiconductor outputs
- 2
- Type of electric connection
- Cable
- Type of switching output
- NPN/NPN
- Type of switch function
- Anticoincidence
- Operation agent-safety class
- Safety class 0
- Setting procedure
- Manual adjustment
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cylinder, screw-thread
- Laser protection class
- None
- Type of light
- Infrared light
- Light dot
- 2177 mm²
- Max. output current at protected output
- 200 mA
- Min. reflector distance
- 0 mm
- Response time
- 3.2 ms
- Type of safety according to IEC 61496-1
- 1
- Operating distance
- 0–400 mm
- Wavelength of the sensor
- 880 nm
- Material of optical surface
- Plastic
- Material of cable sheath
- Polyvinyl chloride (PVC)
- AWG-number
- 22
- Diameter sensor
- 18 mm
- Length of sensor
- 55 mm
- Max. switching distance
- 400 mm
- With reflector
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 9030.90
Cross References
- EAN 5709870004167
- SAP 1000140237
- Code 8644861
Product Documentation
