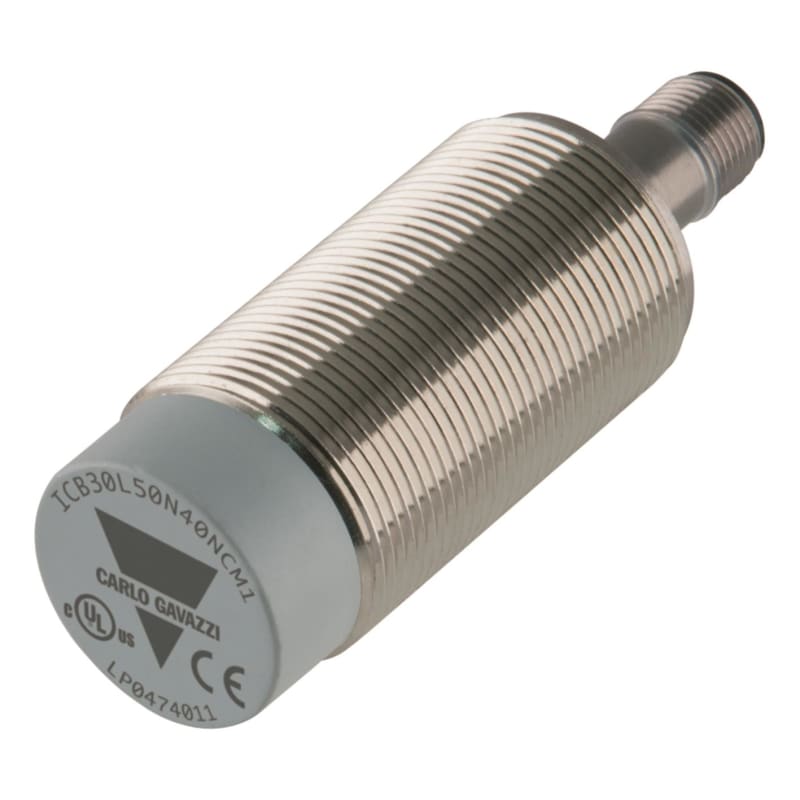

Inductive transmitter M30 PNP NC plug connection (ICB30L50N40PCM1)
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi ICB30L50N40PCM1 Manufacturer description: Inductive proximity sensor, M30 Nickel-Plated Brass, M12 plug, Sn 40mm, Non-flush mount, Long body, PNP NC output, Supply voltage 10-36Vdc, Max output current 200 mA, Max switching frequency 100 Hz, Operating temperature -25C - +70C, IP67. Inductive transmitter M30 PNP NC plug connection, unshielded version length 50mm. Sensing distance 40mm.
Technical Specifications
- Manufacturer part number (MPN)
- ICB30L50N40PCM1
- EAN / GTIN
- 8030956077018
- Sales unit
- pcs
- Rated operating distance
- 40 mm
- Installation type
- Non-flush
- Diameter
- M30
- Output type
- PNP
- Output function
- Normally Closed (NC)
- Connection type
- Connector M12
- Housing type
- Cylindrical, threaded barrel
- Housing material
- Metal
- Rated power supply
- 10 V ... 36 V
- E-number (NO)
- 4336980
- Length of sensor
- 90 mm
- Diameter sensor
- 30 mm
- Mechanical mounting condition for sensor
- Not flat
- Switching distance
- 40 mm
- Suitable for safety functions
- No
- Type of switch function
- Breaker contact (NC)
- Type of switching output
- PNP
- Type of electric connection
- Connector M12
- Number of semiconductor outputs with signalling function
- 1
- Number of protected semiconductor outputs
- 1
- Type of actuation
- Metallic Target
- Type of interface
- None
- Type of interface for safety communication
- None
- Construction type housing
- Cylinder, screw-thread
- Coating housing
- Nickel-plated
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Max. output current at protected output
- 200 mA
- Voltage type
- DC
- Switching frequency
- 100 Hz
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Interference resistance to magnetic fields
- Immune against magnetic AC-field
- Country of origin
- Lithuania
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 8030956077018
- SAP 1200292979
- Code 82264164
