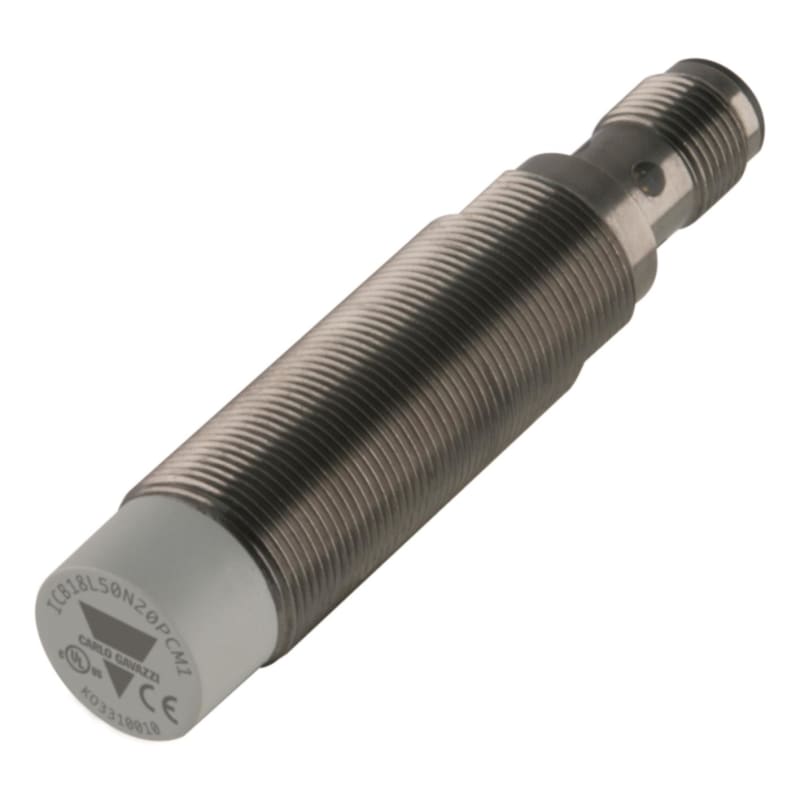

Inductive transmitter M18 PNP NO plug connection (ICB18L50N20POM1)
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi ICB18L50N20POM1 Manufacturer description: Inductive proximity sensor, M18 Nickel-Plated Brass, M12 plug, Sn 20mm, Non-flush mount, Long body, PNP NO output, Supply voltage 10-36Vdc, Max output current 200 mA, Max switching frequency 1,5 kHz, Operating temperature -25C - +70C, IP67. Inductive transmitter M18 PNP NO plug connection, unshielded version length 50mm. Sensing distance 20mm.
Technical Specifications
- Manufacturer part number (MPN)
- ICB18L50N20POM1
- EAN / GTIN
- 8030956075441
- Sales unit
- pcs
- Rated operating distance
- 20 mm
- Installation type
- Non-flush
- Diameter
- M18
- Output type
- PNP
- Output function
- Normally Open (NO)
- Connection type
- Connector M12
- Housing type
- Cylindrical, threaded barrel
- Housing material
- Metal
- Rated power supply
- 10 V ... 36 V
- E-number (NO)
- 4336950
- Length of sensor
- 85 mm
- Diameter sensor
- 18 mm
- Mechanical mounting condition for sensor
- Not flat
- Switching distance
- 20 mm
- Suitable for safety functions
- No
- Type of switch function
- Normally open contact (NO)
- Type of switching output
- PNP
- Type of electric connection
- Connector M12
- Number of semiconductor outputs with signalling function
- 1
- Number of protected semiconductor outputs
- 1
- Type of actuation
- Metallic Target
- Type of interface
- None
- Type of interface for safety communication
- None
- Construction type housing
- Cylinder, screw-thread
- Coating housing
- Nickel-plated
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Max. output current at protected output
- 200 mA
- Voltage type
- DC
- Switching frequency
- 1500 Hz
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Interference resistance to magnetic fields
- Immune against magnetic AC-field
- Country of origin
- Lithuania
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 8030956075441
- SAP 1200292847
- Code 82263329
Product Documentation
More from Carlo Gavazzi
Carlo Gavazzi
M30 Capacitive transmitter IO link fast cable (CA30CAF16BPA2IO)
Carlo Gavazzi
Split-core Current Transformer (CTA5X300A5A)
Carlo Gavazzi

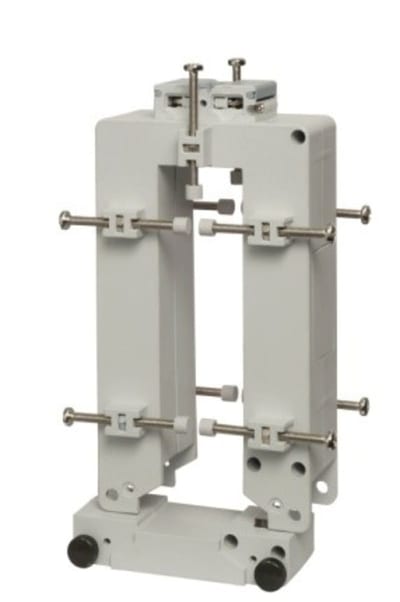

Split-core current transformer 1600 (CTD9S16005AXXX)
Carlo Gavazzi

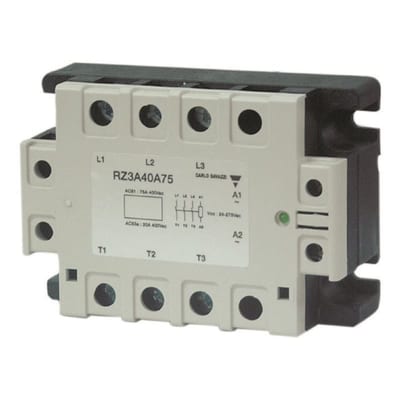

SSR 3-F. 400VAC/55A 4-32VDC (RZ3A40D55P)
Carlo Gavazzi

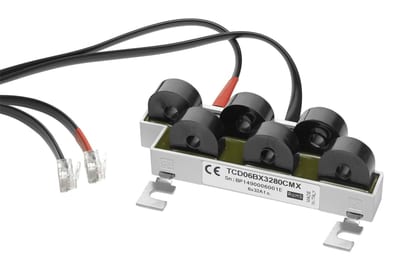

Current Transformer 6X32A, 150cm cable (TCD06BX32200CMX)
Carlo Gavazzi
Meter Wireless MBUS EXT ANT (EM24DINAV23XW1EPFB)
Carlo Gavazzi

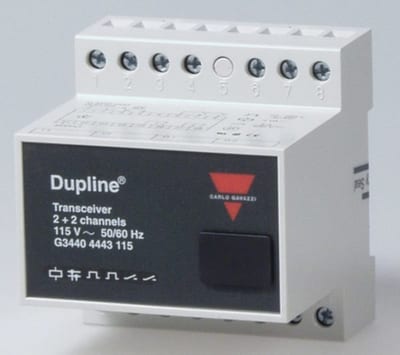

Dupline 2 input/ 2UTG. 230VAC
