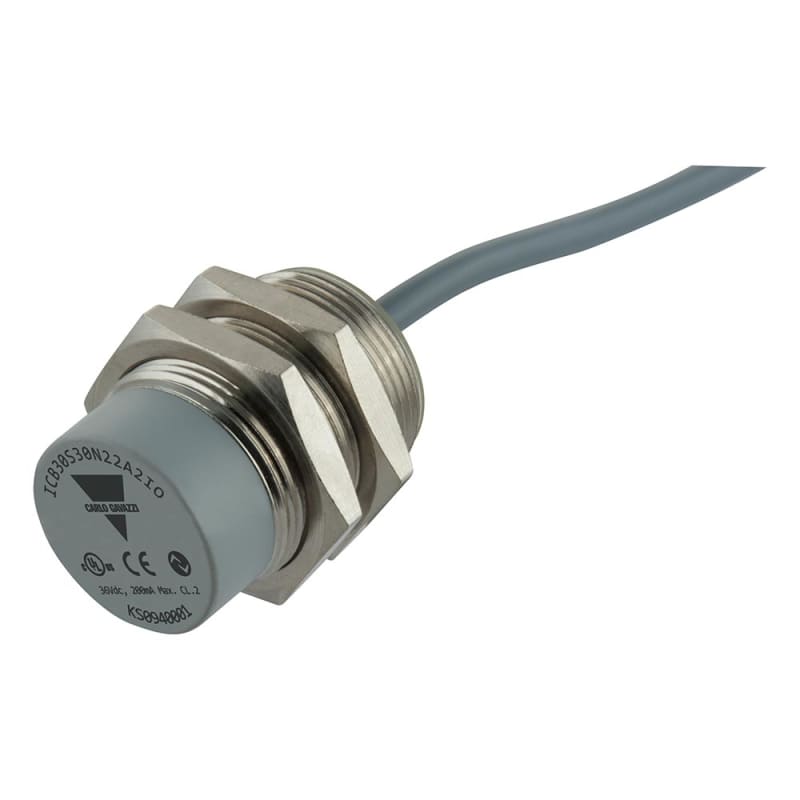

Inductive Transmitter M30 IO-LINK (ICB30S30N22A2IO)
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi ICB30S30N22A2IO Manufacturer description: Inductive proximity sensor, M30 Nickel-Plated Brass, 2m cable, Sn 22mm, Non-Flush mount, Short body, NPN/PNP/Push-pull, NO/NC, Supply voltage 10-36Vdc, Max output current 200 mA, Max switching frequency 1 kHz, Operating temp. -25C - +70C, IP67, IO-Link. Inductive transmitter IO link ICB30S30N22A2IO.
Technical Specifications
- Manufacturer part number (MPN)
- ICB30S30N22A2IO
- EAN / GTIN
- 5709870394626
- Sales unit
- pcs
- Rated operating distance
- 22 mm
- Installation type
- Non-flush
- Diameter
- M30
- Output type
- PNP/NPN
- Output function
- Programmable/configurable
- Connection type
- Cable
- Housing type
- Cylindrical, threaded barrel
- Housing material
- Metal
- Rated power supply
- 10 V ... 36 V
- E-number (NO)
- 4319144
- E-number (SE)
- 3832464
- Width sensor
- 1 mm
- Height of sensor
- 1 mm
- Length of sensor
- 30 mm
- Diameter sensor
- 30 mm
- Mechanical mounting condition for sensor
- Not flat
- Switching distance
- 22 mm
- Type of switch function
- Programmable/configurable
- Type of switching output
- PNP/NPN
- Type of electric connection
- Cable
- Number of semiconductor outputs with signalling function
- 1
- Number of contact energized outputs with signalling function
- 1
- Number of protected semiconductor outputs
- 1
- Number of protected contact energized outputs
- 1
- Type of actuation
- Metallic Target
- Type of interface for safety communication
- None
- Construction type housing
- Cylinder, screw-thread
- Coating housing
- Nickel-plated
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Max. output current at protected output
- 100 mA
- Voltage type
- DC
- Switching frequency
- 1500 Hz
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Interference resistance to magnetic fields
- Immune against magnetic DC- and AC-field
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 9030.90
Cross References
- EAN 5709870394626
- SAP 1200293048
- Code 82264260
Product Documentation
