Inductive Transmitter M8 IO-LINK (ICS08S30N40M5IO)
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi ICS08S30N40M5IO Manufacturer description: Inductive proximity sensor, M8 Stainless steel, M8 plug, Sn 4mm, Non-Flush mount, Short body, IO-Link, Supply voltage 10-30Vdc, Max output current 100 mA, Max switching frequency 2 kHz, Operating temperature -25C - +80C, IP67. Inductive transmitter IO link ICS08S30N40M5IO.
Technical Specifications
- Manufacturer part number (MPN)
- ICS08S30N40M5IO
- EAN / GTIN
- 5709870393476
- Sales unit
- pcs
- Rated operating distance
- 4 mm
- Installation type
- Non-flush
- Diameter
- M8
- Output type
- Other
- Output function
- Programmable/configurable
- Connection type
- Connector M8
- Housing type
- Cylindrical, threaded barrel
- Housing material
- Metal
- Rated power supply
- 10 V ... 30 V
- E-number (NO)
- 4319123
- E-number (SE)
- 3832453
- Width sensor
- 30 mm
- Height of sensor
- 1 mm
- Length of sensor
- 30 mm
- Diameter sensor
- 8 mm
- Mechanical mounting condition for sensor
- Not flat
- Switching distance
- 4 mm
- Type of switch function
- Programmable/configurable
- Type of switching output
- PNP/NPN
- Type of electric connection
- Connector M8
- Number of semiconductor outputs with signalling function
- 1
- Number of contact energized outputs with signalling function
- 1
- Number of protected semiconductor outputs
- 1
- Number of protected contact energized outputs
- 1
- Type of actuation
- Metallic Target
- Construction type housing
- Cylinder, screw-thread
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Max. output current at protected output
- 100 mA
- Voltage type
- DC
- Switching frequency
- 2000 Hz
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Interference resistance to magnetic fields
- Immune against magnetic DC- and AC-field
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 9030.90
Cross References
- EAN 5709870393476
- SAP 1200293129
- Code 82264305
Product Documentation
More from Carlo Gavazzi
Carlo Gavazzi
Time relay multifunk. 1XRELE 24VDC 11-Pin
PMC01C724
Carlo Gavazzi
Inductive transmitter M12 PNP NO plug connection (ICB12L50N10POM1)
Carlo Gavazzi
Inductive Transmitter ICB12L50F02PO
Carlo Gavazzi
Inductive Transmitter ICB12L50F04PO
Carlo Gavazzi
IND Transmitter M12 NPN NC Unshielded PLUG
4316487
Carlo Gavazzi
FOTO.Pole.Flat,DC,NO+NC,CAB (PC50CNP06BA)
Carlo Gavazzi
Inductive transmitter ø4mm,short,IO-Link, plug
IBS04SF15M5IO
Carlo Gavazzi

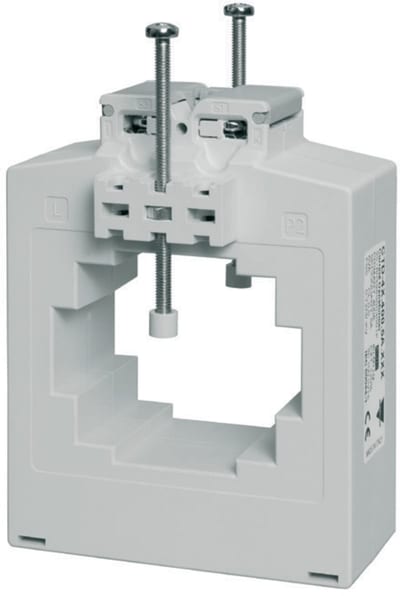

Current Transformer 1000/5A (CTD4X10005AXXX)
