Inductive Transmitter M5 IO-LINK (ICS05S23F15A2IO)
Pricing
Request a quote
We reply within 24 hours
Product Description

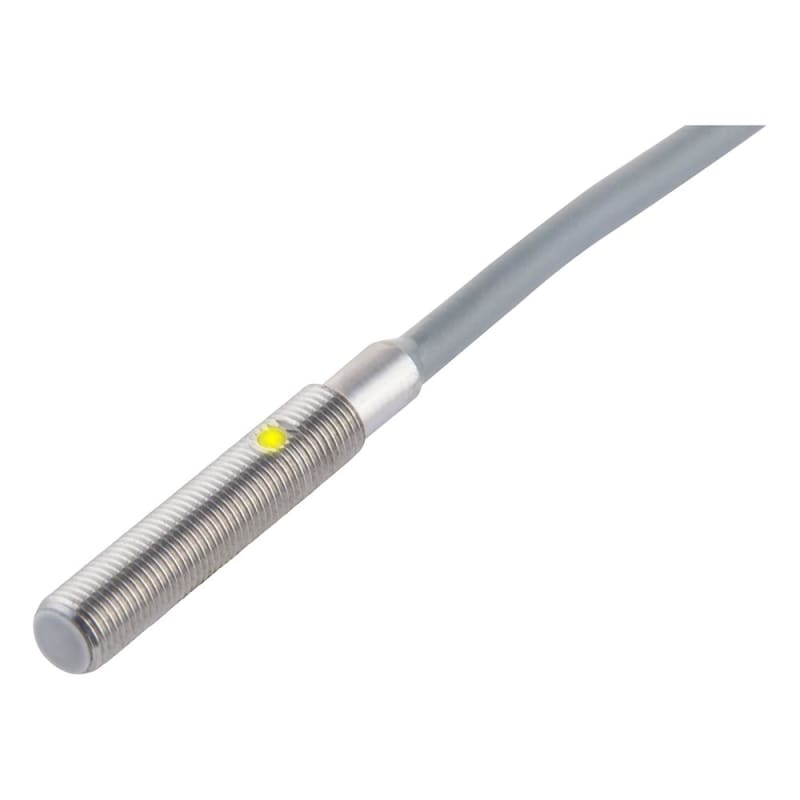

Carlo Gavazzi ICS05S23F15A2IO Manufacturer description: Inductive proximity sensor, M5 Stainless steel, 2m cable, Sn 1.5mm, Flush mount, Short body, NPN/PNP/Push-pull, NO/NC, Supply voltage 10-30Vdc, Max output current 100 mA, Max switching frequency 4.5 kHz, Operating temperature -25C - +70C, IP67, IO-Link. Inductive transmitter IO link ICS05S23F15A2IO.
Technical Specifications
- Manufacturer part number (MPN)
- ICS05S23F15A2IO
- EAN / GTIN
- 5709870393070
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Rated operating distance
- 1.5 mm
- Installation type
- Flush
- Diameter
- M5
- Output type
- PNP/NPN
- Output function
- Programmable/configurable
- Connection type
- Cable
- Housing type
- Cylindrical, threaded barrel
- Housing material
- Metal
- Rated power supply
- 10 V ... 30 V
- E-number (NO)
- 4319114
- E-number (SE)
- 3832448
- Width sensor
- 200 mm
- Height of sensor
- 1 mm
- Length of sensor
- 220 mm
- Diameter sensor
- 5 mm
- Mechanical mounting condition for sensor
- Concise
- Switching distance
- 1.5 mm
- Type of switch function
- Programmable/configurable
- Type of switching output
- PNP/NPN
- Type of electric connection
- Cable
- Number of semiconductor outputs with signalling function
- 1
- Number of contact energized outputs with signalling function
- 1
- Number of protected semiconductor outputs
- 1
- Number of protected contact energized outputs
- 1
- Type of actuation
- Metallic Target
- Type of interface for safety communication
- None
- Construction type housing
- Cylinder plain
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Max. output current at protected output
- 100 mA
- Voltage type
- DC
- Switching frequency
- 2500 Hz
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Interference resistance to magnetic fields
- Immune against magnetic DC- and AC-field
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 9030.90
Cross References
- EAN 5709870393070
- SAP 1200293085
- Code 82264177
Product Documentation
More from Carlo Gavazzi
Carlo Gavazzi
Inductive Transmitter M5 IO-LINK (ICS05S23F15M5IO)
Carlo Gavazzi
Current Transformer 2000/5A (CTD9H20005AXXX)
Carlo Gavazzi
Option Module for WM30/40 (MCETHM)
Carlo Gavazzi
Current Transformer 600/5A (CTD8H6005AXXX)
Carlo Gavazzi
Current Transformer 1250/5A (CTD9H12505AXXX)
Carlo Gavazzi
Current Transformer 700/5A (CTD4X7005AXXX)
Carlo Gavazzi
Current Transformer 500/5A (CTD2X5005AXXX)
Carlo Gavazzi
Option Module for WM30/40 (MCBACMS)
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy ICS05S23F15A2IO?
- ICS05S23F15A2IO can be ordered from cballast.com as a Carlo Gavazzi catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Carlo Gavazzi product?
- The manufacturer part number is ICS05S23F15A2IO.
- What is the HS code for ICS05S23F15A2IO?
- The customs tariff (HS) code for ICS05S23F15A2IO is 9030.90.
- Who manufactures ICS05S23F15A2IO?
- ICS05S23F15A2IO is a Carlo Gavazzi product in the Sensors & Instrumentation range.
- Is a datasheet available for ICS05S23F15A2IO?
- Yes — the ICS05S23F15A2IO datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for ICS05S23F15A2IO?
- The minimum order quantity is 1.
- Is ICS05S23F15A2IO available?
- Yes — ICS05S23F15A2IO is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
