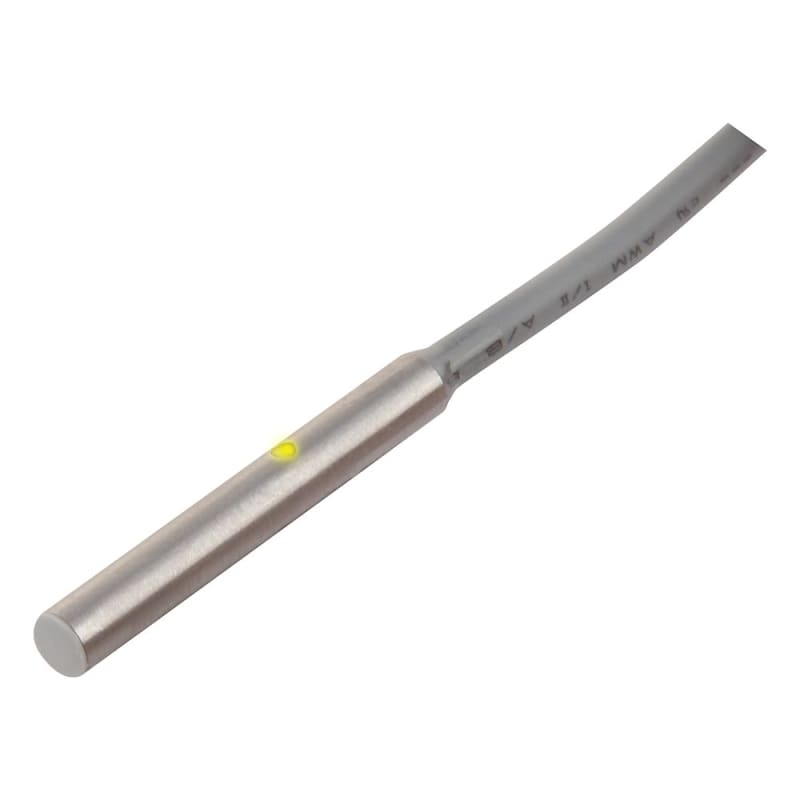

Inductive Transmitter Ø4mm IO-LINK
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi IBS04SF15A2IO Manufacturer description: Inductive proximity sensor, D4 Stainless steel, 2m cable, Sn 1.5mm, Flush mount, Short body, NPN/PNP/Push-pull, NO/NC, Supply voltage 10-30Vdc, Max output current 100 mA, Max switching frequency 4.5 kHz, Operating temperature -25C - +70C, IP67, IO-Link. Inductive transmitter IO link IBS04SF15A2IO.
Technical Specifications
- Manufacturer part number (MPN)
- IBS04SF15A2IO
- EAN / GTIN
- 5709870393063
- Sales unit
- pcs
- Rated operating distance
- 1.5 mm
- Installation type
- Flush
- Diameter
- M4
- Output type
- PNP/NPN
- Output function
- Programmable/configurable
- Connection type
- Cable
- Housing type
- Cylindrical, smooth barrel
- Housing material
- Metal
- Rated power supply
- 10 V ... 30 V
- E-number (NO)
- 4319112
- E-number (SE)
- 3832446
- Width sensor
- 4 mm
- Height of sensor
- 1 mm
- Length of sensor
- 30 mm
- Diameter sensor
- 4 mm
- Mechanical mounting condition for sensor
- Concise
- Switching distance
- 1.5 mm
- Type of switch function
- Programmable/configurable
- Type of switching output
- PNP/NPN
- Type of electric connection
- Cable
- Number of semiconductor outputs with signalling function
- 1
- Number of contact energized outputs with signalling function
- 1
- Number of protected semiconductor outputs
- 1
- Number of protected contact energized outputs
- 1
- Type of actuation
- Metallic Target
- Type of interface for safety communication
- None
- Construction type housing
- Cylinder plain
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Max. output current at protected output
- 100 mA
- Voltage type
- DC
- Switching frequency
- 3000 Hz
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Interference resistance to magnetic fields
- Immune against magnetic DC- and AC-field
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 9030.90
Cross References
- EAN 5709870393063
- SAP 1200292613
- Code 82263279
Product Documentation
