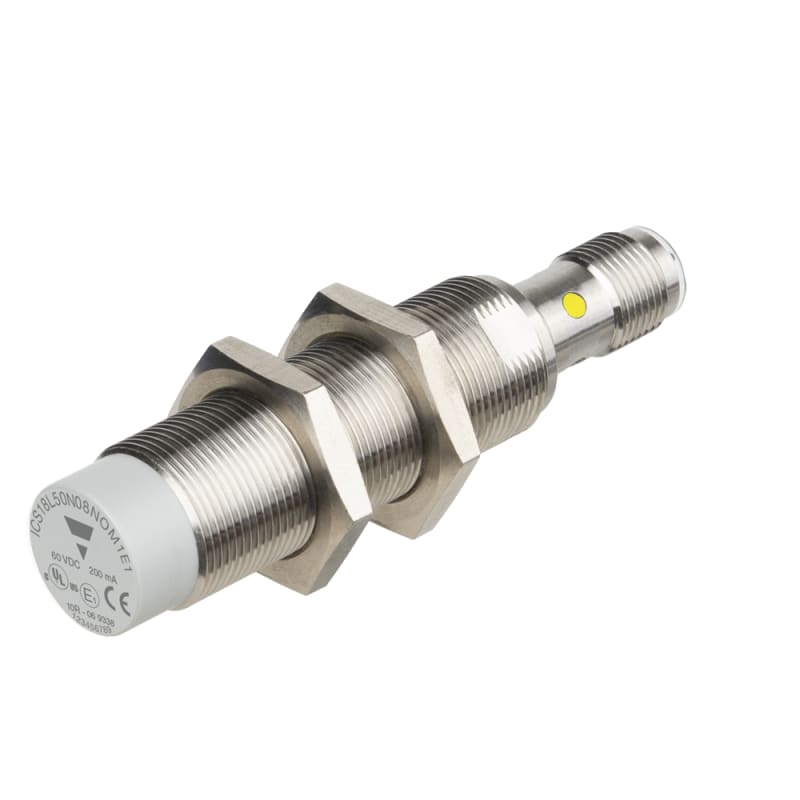

IND Transmitter M18 NPN NC Unshielded PLUG
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi 4316503 Ind transmitter M18 version stainless. NPN NC output. Unshielded 14mm sensing distance. M12 plug connection.
Technical Specifications
- Manufacturer part number (MPN)
- 4316503
- Sales unit
- pcs
- El-nummer (NO)
- 4316503
- ETIM class
- SC002714
- Output type
- NPN
- Contact configuration
- NC
- Length of sensor
- 74 mm
- Diameter sensor
- 18 mm
- Mechanical mounting condition for sensor
- Not flat
- Switching distance
- 14 mm
- Type of switch function
- Breaker contact (NC)
- Type of switching output
- NPN
- Type of electric connection
- Connector M12
- Number of semiconductor outputs with signalling function
- 1
- Number of contact energized outputs with signalling function
- 1
- Number of protected contact energized outputs
- 1
- Type of actuation
- Metallic Target
- Type of interface
- None
- Type of interface for safety communication
- None
- Construction type housing
- Cylinder, screw-thread
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Max. output current at protected output
- 200 mA
- Voltage type
- DC
- Switching frequency
- 900 Hz
- Housing material
- Metal
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Interference resistance to magnetic fields
- Immune against magnetic DC-field
- Country of origin
- Lithuania
Standards & Compliance
- HS Code
- 8536.50
Cross References
- 5709870401720
- El-nr 4316503
Product Documentation
More from Carlo Gavazzi
Carlo Gavazzi
Current Transformer 1200/5A (CTD9H12005AXXX)
Carlo Gavazzi
Inductive transmitter M30 PNP NO plug connection (ICB30L50F15POM1)
Carlo Gavazzi
Current Transformer 1200/5A (CTD10H12005AXXX)
Carlo Gavazzi

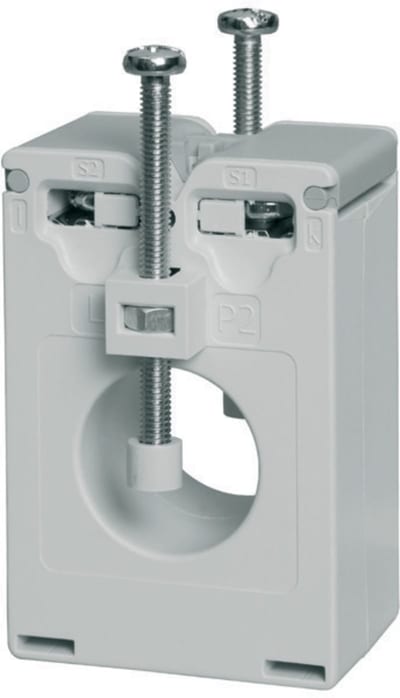

Current Transformer 150/5A (CTD1X1505AXXX)
Carlo Gavazzi

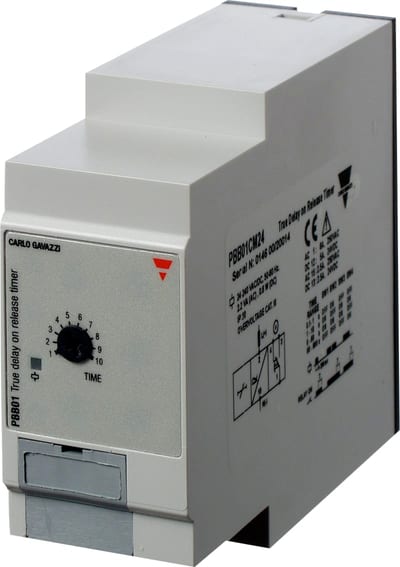

Time Relay Off-delay (PBB01CM24)
Carlo Gavazzi

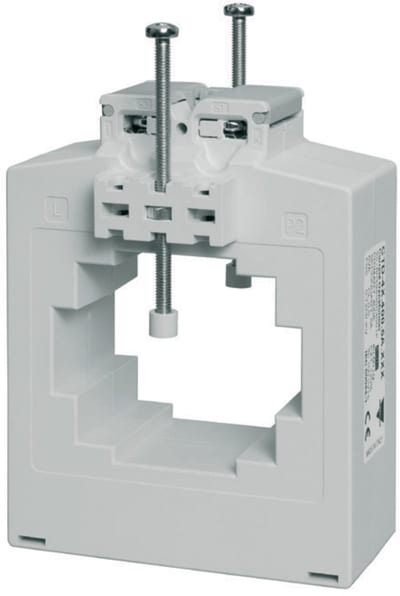

Current Transformer 300/5A (CTD4X3005AXXX)
Carlo Gavazzi

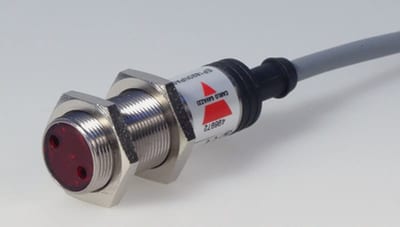

FOTO.Pole M18,PNP,NO+NC,CAB (EP1820PPAS)
Carlo Gavazzi

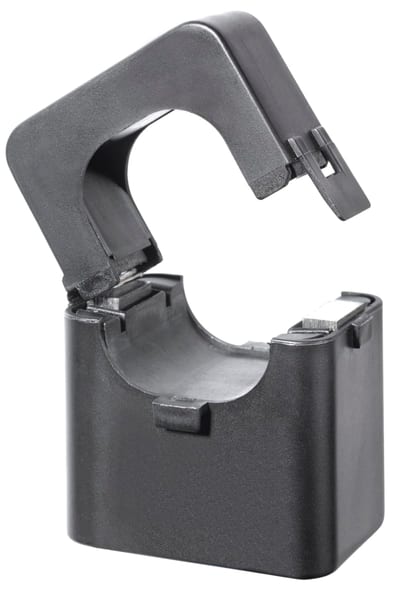

Split-core current transformer 400A (CTV4X400A333MV)
