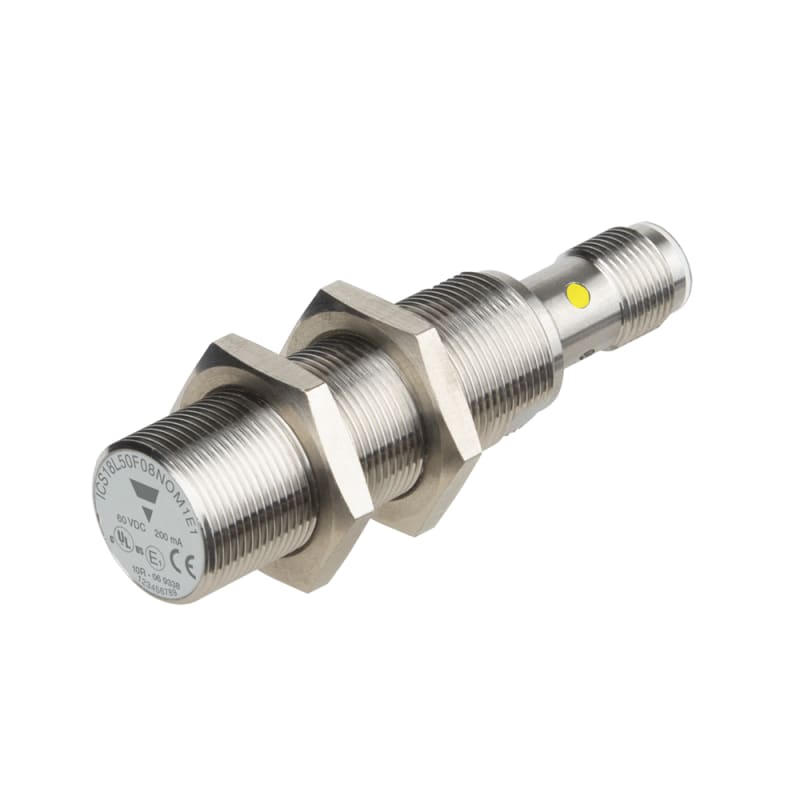

IND Transmitter M18 PNP NC Shielded PLUG
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi ICS18L50F08PCM1E1 Manufacturer description: Inductive proximity sensor, M18 Stainless steel, M12-plug, Sn 8mm, Flush mount, PNP NC output, 8-60Vdc, 200 mA, Max op. freq. 0.9 kHz, Op. temperature -40C to +85C, IP67-IP68-IP69K, 200 V/m Radiated Noise Immunity, Load Dump Protection, E1-type. Ind transmitter M18 version stainless. PNP NC output. Shielded 8mm sensing distance. M12 plug connection.
Technical Specifications
- Manufacturer part number (MPN)
- ICS18L50F08PCM1E1
- EAN / GTIN
- 5709870401768
- Sales unit
- pcs
- Rated operating distance
- 8 mm
- Installation type
- Flush
- Diameter
- M18
- Output type
- PNP
- Output function
- Normally Closed (NC)
- Connection type
- Connector M12
- Housing type
- Cylindrical, threaded barrel
- Housing material
- Metal
- Rated power supply
- 8 V ... 60 V
- E-number (NO)
- 4316499
- Length of sensor
- 74 mm
- Diameter sensor
- 18 mm
- Mechanical mounting condition for sensor
- Concise
- Switching distance
- 8 mm
- Type of switch function
- Breaker contact (NC)
- Type of switching output
- PNP
- Type of electric connection
- Connector M12
- Number of semiconductor outputs with signalling function
- 1
- Number of contact energized outputs with signalling function
- 1
- Number of protected contact energized outputs
- 1
- Type of actuation
- Metallic Target
- Type of interface
- None
- Type of interface for safety communication
- None
- Construction type housing
- Cylinder, screw-thread
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Max. output current at protected output
- 200 mA
- Voltage type
- DC
- Switching frequency
- 900 Hz
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Interference resistance to magnetic fields
- Immune against magnetic DC-field
- Country of origin
- Lithuania
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 5709870401768
- SAP 1200583216
- Code 82959259
Product Documentation
