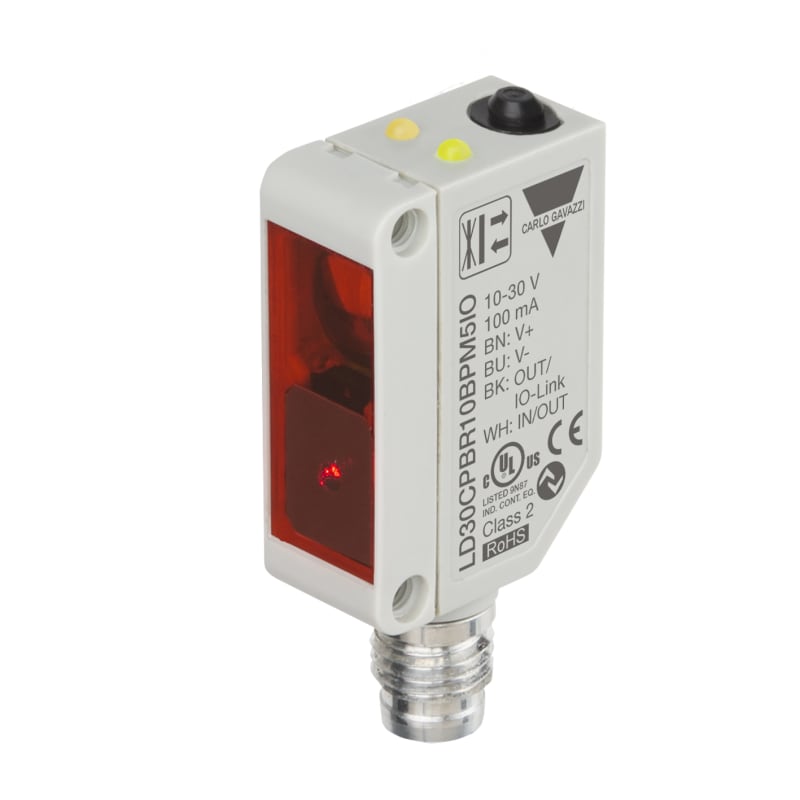

Photoelectric Sensor laser direct IO-Link 100mm (LD30CPBR10BPM5IO)
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi LD30CPBR10BPM5IO Manufacturer description: Photoelectric Laser Sensor with Adjustable Back/Foreground Suppression, IO-Link, Range: 0-100mm, Red Laser Class 1, 650nm, Power Supply 10-30VDC, NPN/PNP/Push-pull, N.O., N.C., M8-4Pin Plug, 10x30x20mm housing Plastic, IP67. Laserfotocelle. Direct-sensing max.. 100mm with for-/background suppression. IO-link utf. Pluggable.
Technical Specifications
- Manufacturer part number (MPN)
- LD30CPBR10BPM5IO
- EAN / GTIN
- 5709870406916
- Sales unit
- pcs
- Output type
- PNP/NPN
- Output function
- Programmable/configurable
- Connection type
- Connector M8
- Housing type
- Rectangular
- Housing material
- Plastic
- Emitted light
- Laser diode, red light
- Sensing mode
- Light-/dark switching
- Degree of protection
- IP67
- Rated power supply
- 10 V ... 30 V
- E-number (NO)
- 4304660
- Rated switching distance
- 100 mm
- Max. switching distance
- 100 mm
- Max. output current
- 100 mA
- With reflector
- No
- Setting procedure
- Parameterization
- Number of semiconductor outputs with signalling function
- 1
- Number of contact energized outputs with signalling function
- 1
- Number of protected semiconductor outputs
- 1
- Number of protected contact energized outputs
- 1
- Type of electric connection
- Connector M8
- Type of switching output
- PNP/NPN
- Type of switch function
- Programmable/configurable
- Operation agent-safety class
- Safety class 3
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Width sensor
- 10.8 mm
- Height of sensor
- 30 mm
- Length of sensor
- 20 mm
- Material of optical surface
- Plastic
- Max. output current at protected output
- 100 mA
- Min. reflector distance
- 20 mm
- Response time
- 10 ms
- Switching frequency
- 450 Hz
- Type of safety according to IEC 61496-1
- 4
- Switching voltage of OSSD at state "high"
- 30 V
- Voltage type
- DC
- Laser protection class
- Class 1
- Wavelength of the sensor
- 650 nm
- Type of light
- Laser diode, red light
- Light dot
- 1 mm²
- Country of origin
- Lithuania
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 5709870406916
- SAP 1200735749
- Code 83867540
