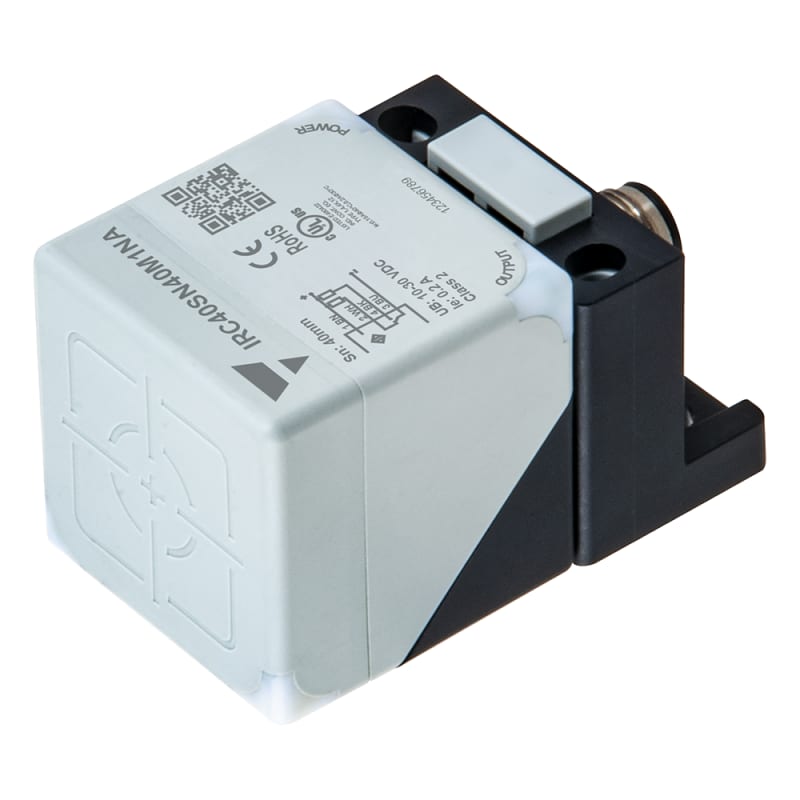

Inductive transmitter 40X40MM,NPN NO/NC, plug (IRC40SN40M1NA)
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi IRC40SN40M1NA Manufacturer description: Inductive proximity sensor, 40x40mm Plastic, M12-plug 4-pin, Sn 40mm, Non-Flush mount, 66mm lenght, NPN NO+NC output, 10-30Vdc, 200 mA, Max op. freq. 200Hz, Op. temperature -25C - +80C, IP67-IP68-IP69K, rotatable head, mounting bracket. INDUCTIVE TRANSMITTER IRC40 NPN UNSHIELDED M12 PLUG NO+NC.
Technical Specifications
- Manufacturer part number (MPN)
- IRC40SN40M1NA
- EAN / GTIN
- 5709870406640
- Sales unit
- pcs
- Rated operating distance
- 40 mm
- Installation type
- Non-flush
- Output type
- NPN
- Output function
- Change-over contact
- Connection type
- Connector M12
- Housing type
- Rectangular
- Housing material
- Plastic
- Rated power supply
- 10 V ... 30 V
- E-number (NO)
- 4304612
- Dimensions
- 40x40 mm
- Width sensor
- 40 mm
- Height of sensor
- 40 mm
- Length of sensor
- 66 mm
- Mechanical mounting condition for sensor
- Not flat
- Switching distance
- 40 mm
- Type of switch function
- Anticoincidence
- Type of switching output
- NPN
- Type of electric connection
- Connector M12
- Number of semiconductor outputs with signalling function
- 1
- Number of protected semiconductor outputs
- 1
- Type of actuation
- Metallic Target
- Type of interface
- None
- Type of interface for safety communication
- None
- Construction type housing
- Cuboid
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Max. output current at protected output
- 200 mA
- Voltage type
- DC
- Switching frequency
- 200 Hz
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Interference resistance to magnetic fields
- Immune against magnetic DC- and AC-field
- Country of origin
- Lithuania
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 5709870406640
- SAP 1200744396
- Code 83881866
