SSR 230VAC/25A 3-32VDC
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi RM1A23D25 Manufacturer description: 1-pole panel mount SSR, Zero-cross switching, Operating voltage (Ue): 24 - 265 Vac (650 Vp), Rated current (Ie): 25 Aac, Control voltage (Uc): 3 - 32 Vdc, Built-in overvoltage protection. RM1A23D25 Solid State relays / Static relèer.
Technical Specifications
- Manufacturer part number (MPN)
- RM1A23D25
- EAN / GTIN
- 5350035320433
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Output switching mode
- Zero cross
- Number of poles
- 1
- Rated current AC-51
- 25 A
- Rated current AC-53a
- 5 A
- Operating voltage
- 24 V ... 265 V
- Control voltage AC
- 0 V ... 0 V
- Control voltage DC
- 3 V ... 32 V
- Power connection
- Screw with captive clamp
- E-number (NO)
- 4134736
- E-number (SE)
- 4029260
- Degree of protection (IP)
- IP20
- Width
- 44.8 mm
- Operating voltage AC 50 Hz
- 24–265 V
- Operating voltage AC 60 Hz
- 24–265 V
- Depth
- 58.2 mm
- Height
- 28.8 mm
- Complete with socket
- Yes
- With detachable clamps
- No
- With LED indication
- Yes
- Type of switch function
- Normally open contact (NO)
- Voltage type (operating voltage)
- AC
- Type of electric connection
- Screw connection
- Voltage type for actuating
- DC
- Rated operation current Ie at AC-51
- 25 A
- Rated operation current Ie at AC-53a
- 5 A
- Number of phases
- 1
- Country of origin
- China
Standards & Compliance
- HS Code
- 9030.90
Cross References
- EAN 5350035320433
- SAP 1000140609
- Code 81132315
Product Documentation
More from Carlo Gavazzi
Carlo Gavazzi
Inductive transmitter M18 PNP NO plug connection (ICB18L50F12POM1)
Carlo Gavazzi
Power supply 240W 24VDC
SPDM242401
Carlo Gavazzi

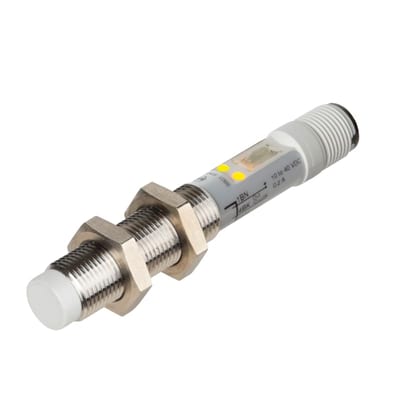

M12 Capacitive transmitter IO-Link M12 plug (CA12EAN08BPM1IO)
