3-Phase relay 600-690VAC HVAC-design
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi DPA01CM69HVAC Manufacturer description: 3-phase loss and sequence monitoring relay, nominal range 600-690 V AC, SPDT relay output, regenerated voltage detection, 22.5 mm DIN-rail housing. Phase sequence-/phase break relay 600-690VAC spark-free HVAC-version for compressors with flammable gas.
Technical Specifications
- Manufacturer part number (MPN)
- DPA01CM69HVAC
- EAN / GTIN
- 8054155011963
- Sales unit
- pcs
- Mounting
- Industrial DIN-rail
- Function
- Phase sequence
- 3-phase voltage range
- 600-690 Vac
- Frequency range
- 50-60 Hz
- Output
- 1 relay
- Time delay
- No delay adjustment
- Approvals, marks, declarations
- for Australia
- Setting method through NFC
- No
- E-number (NO)
- 4124538
- Rated switch current
- 2 A
- Voltage type (operating voltage)
- AC
- Type of electric connection
- Screw connection
- Min. adjustable delay-on energization time
- 0 s
- Max. permitted delay-on energization time
- 0.1 s
- Min. adjustable off-delay time
- 0 s
- Max. permitted off-delay time
- 0.35 s
- Number of contacts as change-over contact
- 1
- Width
- 22.5 mm
- Height
- 80 mm
- Depth
- 99.5 mm
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 9030.90
Cross References
- EAN 8054155011963
- SAP 1200966317
- Code 84275738
Product Documentation
More from Carlo Gavazzi
Carlo Gavazzi

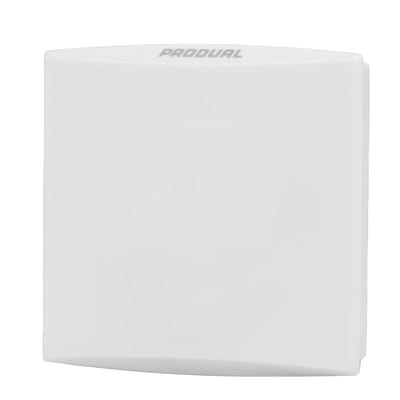

Room sensor, passive NTC 20 element, white
5470080
Carlo Gavazzi

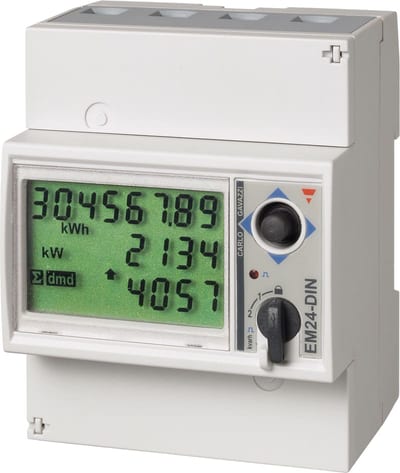

Energy meter direct TCP/IP MID (EM24DINAV23XE1PFA)
Carlo Gavazzi
SSR TRANSF. Coupling 400V/50A (RM1C60D50)
Carlo Gavazzi
AC/DC undervoltage relay 12-240V (DUB03CW24)
Carlo Gavazzi
SMH PIR sensor 90° + LUX
SHE5XP90L
Carlo Gavazzi

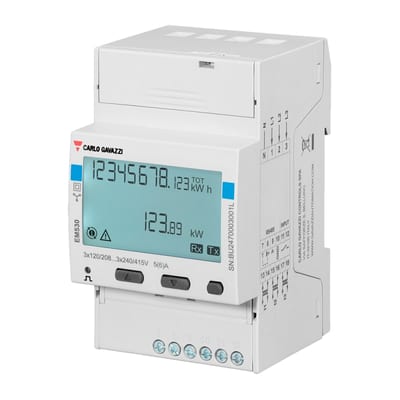

Meter 3-Phase (5A) RS485 MID (EM530DINAV53XS1PFA)
Carlo Gavazzi

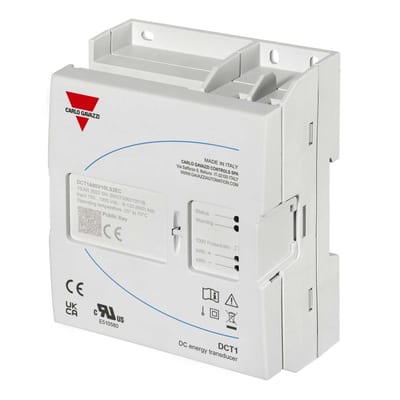

Carlo Gavazzi DC Energy Meter 600A RS485 Modbus 256-bit
