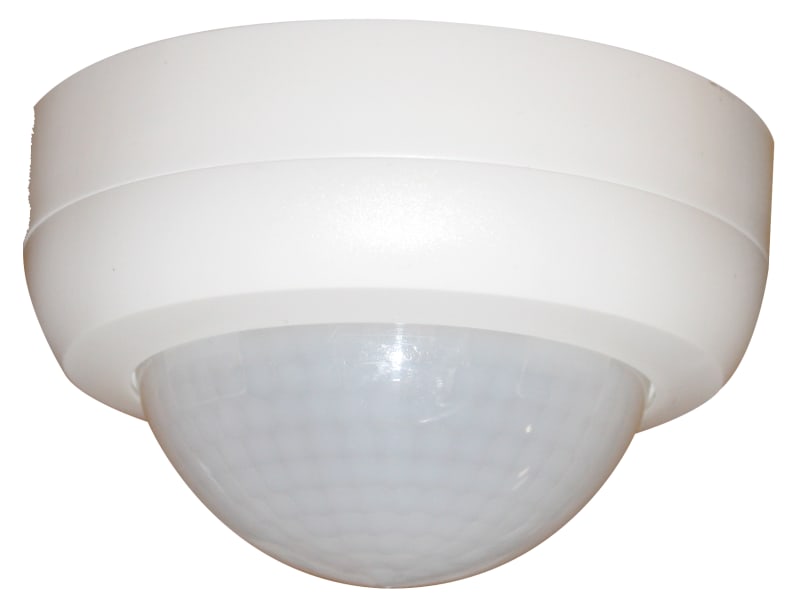

UK Närvarodetektor PD4-1C-K-UTP
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi 92270 Motion detector for surface-mounted mounting in ceiling with a channel for light.
Technical Specifications
- Manufacturer part number (MPN)
- 92270
- EAN / GTIN
- 4007529922703
- Sales unit
- pcs
- Nominal voltage
- 230 V
- Mounting method
- Surface mounted
- Colour
- White
- Model
- Movement sensor
- Height
- 65 mm
- Connection type
- Screwed terminal
- Surface protection
- Untreated
- Voltage type
- AC
- Switching-on delay
- 1 s
- Switch-off delay
- 1 s
- Built-in depth
- 65 mm
- Diameter
- 109 mm
- Material quality
- Thermoplastic
- Max. reach frontally
- 5 m
- Max. reach sideways
- 5 m
- Max. switching power
- 2300 W
- Temperature
- -25–50 °C
- Max. starting current
- 165 A
- Material
- Plastic
- Diameter reach on floor
- 10 m
- RAL-number (similar)
- 9010
- Control current
- 17 mA
- Scan angle
- 360 °
- Impact strength
- IK00
- Degree of protection (IP)
- IP20
- Surface finishing
- Matt
- Min. switch-on time
- 1 s
- Max. duty cycle
- 30 min
- Suitable for wall mounting
- No
- Optimum mounting height
- 2.5 m
- Number of switching zones
- 3
- With DALI interface
- No
- Min. starting current
- 0 A
- Min. depth of built-in installation box
- 50 mm
- Max. presence range
- 78 m²
- Max. switching power LED
- 10 W
- Sensor type
- Passive infrared
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8535.90
Cross References
- EAN 4007529922703
- SAP 1000516004
- Code 8814524
Product Documentation
More from Carlo Gavazzi
Carlo Gavazzi

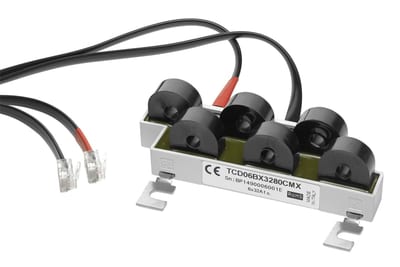

Current Transformer 6X32A, 80cm cable
TCD06BX3280CMX
Carlo Gavazzi

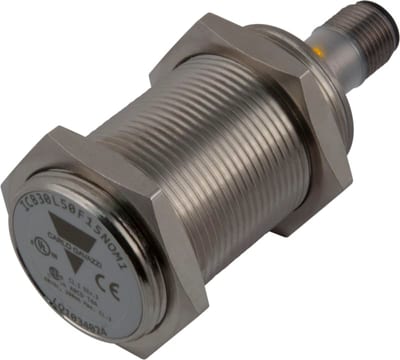

Inductive transmitter M30 PNP NC plug connection (ICB30L50F10PCM1)
Carlo Gavazzi

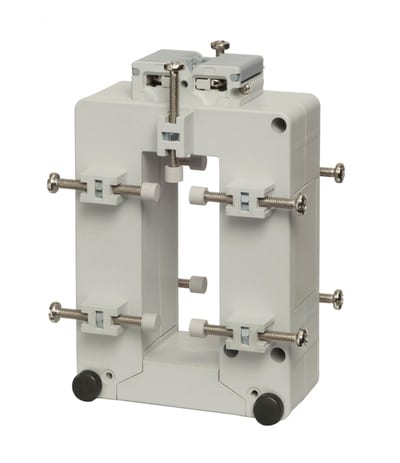

Split-core current transformer 1600 (CTD8S16005AXXX)
Carlo Gavazzi

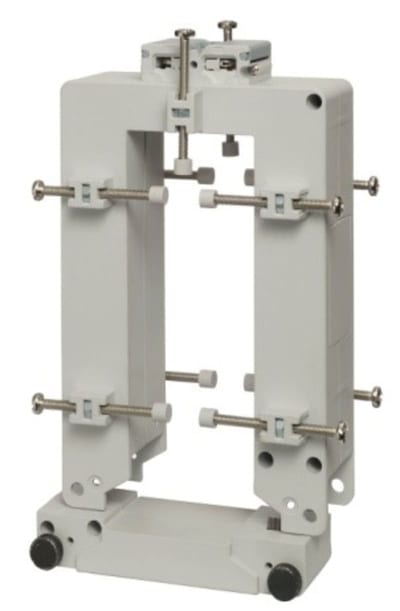

Split-core current transformer 1600 (CTD10S16005AXXX)
Carlo Gavazzi

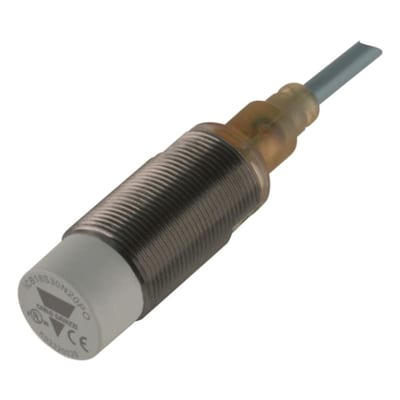

Inductive transmitter M18 PNP NC 2M cable (ICB18S30N20PC)
Carlo Gavazzi

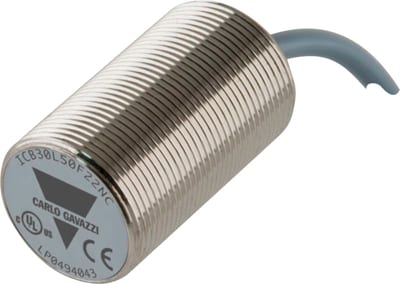

Inductive Transmitter ICB30L50F22PO
Carlo Gavazzi

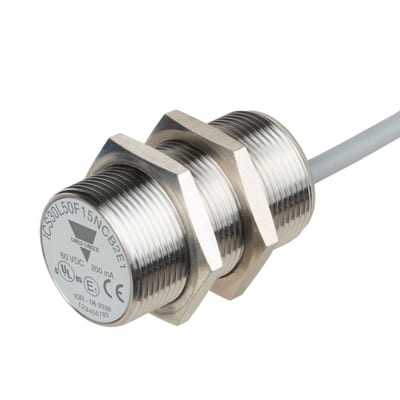

IND Transmitter M30 PNP NO Shielded 2M Cable
