Butterfly Valve Wafer CI/EPDM/SS Lever DN125
Keystone · Valves · Butterfly Valves

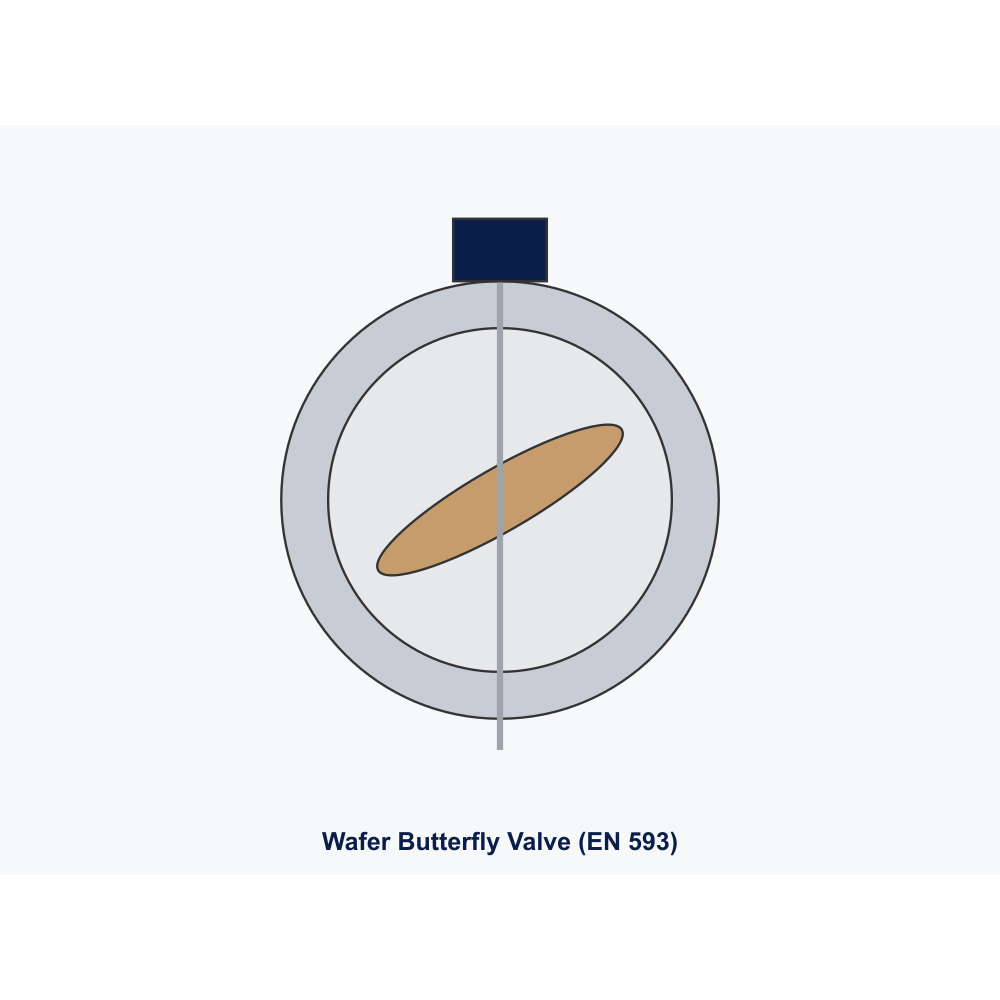

Wafer-type butterfly valve with cast iron body, EPDM liner, and stainless steel 316 disc. Lever operated with locking positions.
Specifications
- Part number
- BFV-W-DN125
- HS code
- 8481.80
- Material
- CI Body / SS316 Disc / EPDM Liner
- Pressure rating
- PN16 (16 bar)
- Temperature range
- -10°C to +120°C
- Standard
- EN 593 / PN16
- Standard size
- DN125
Compatibility
Flange standards EN 1092-1 or ANSI B16.5. Fits any matching-drilling flange.
Standards
- API 609
- EN 593
- ISO 5752
- EN 1092-1
- ANSI B16.5.
- EN 1092-1.
- ANSI B16.5
Approvals
