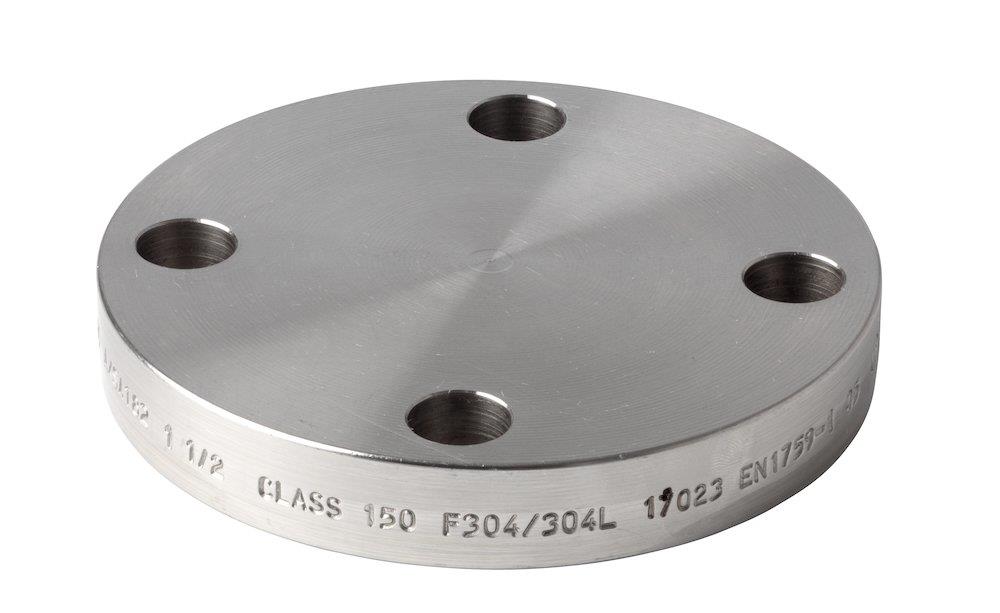

Blind flange acid-resistant - 1 1/2", 150LBS
Pricing
Request a quote
We reply within 24 hours
Product Description
Blind flange acid-resistant. Blind flange ASTM (Technique / Acid-resistant and Stainless fittings / Flanger). Principal data: dimension 1 1/2", pressure ansi 150 Lbs. Supplied under manufacturer part number FB10224500, HS code 7307.21, country of origin India.
Technical Specifications
- Product type
- Blind flange ASTM Product group: Acid-resistant and Stainless fittings Dimension: 1 1/2" Pressure ANSI: 150 Lbs Number of bolt holes: 4 pcs Bolt hole diameter: 15.9 mm Bolt circle diameter: 98 mm Flange thickness: 15.9 mm Diameter: 125 mm Steel quality: 316/316L material certificate: EN 10204 3.1 Tolerance: A-182 BL/RF , SF Weight: 1.53 kg R dimension: 73 mm Rf dimension: 2 mm REACH SVHC substance above 0.1%: None Carbon footprint (EPD): 0.0043 kg CO2e per pcs Environmental declaration: LCA Country of origin: India Customs tariff code (EU CN): 73072100 HS code: 7307.21 Manufacturer part number: FB10224500
Standards & Compliance
- HS Code
- 7307.21
Cross References
- MPN FB10224500
Product Documentation
More from Generic
Generic
Pressed Loose Flange DN50, PN16, for Ø54 mm Pipe, 316L Stainless
GL70254859
Generic
ISO 4014 Hex Head Bolt M12 x 85 mm, Grade 8.8, Electro-Galvanised, 50 pcs
4014120852
Generic

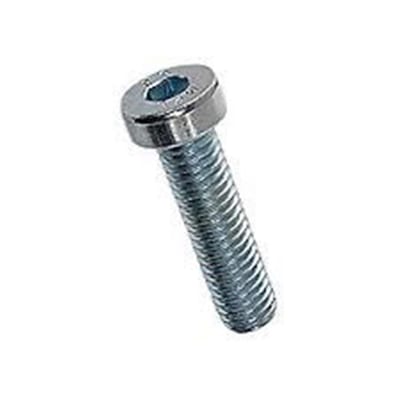

DIN 6912 Low Head Socket Cap Screw M5 x 20 mm, Grade 8.8, Electro-Galvanised
6912050202
Generic
Cone stainless welded concentric - 60.33mm, 42.16mm, 2,77mm, 2", 10S
AR10033680
Generic

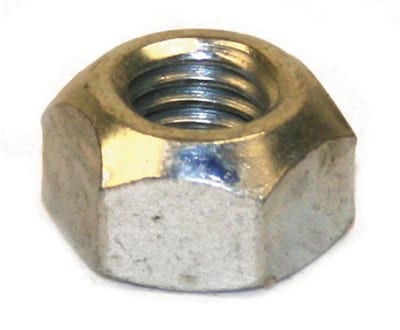

DIN 980V All-Metal Prevailing-Torque Locknut M8, Grade 8, Electro-Galvanised
