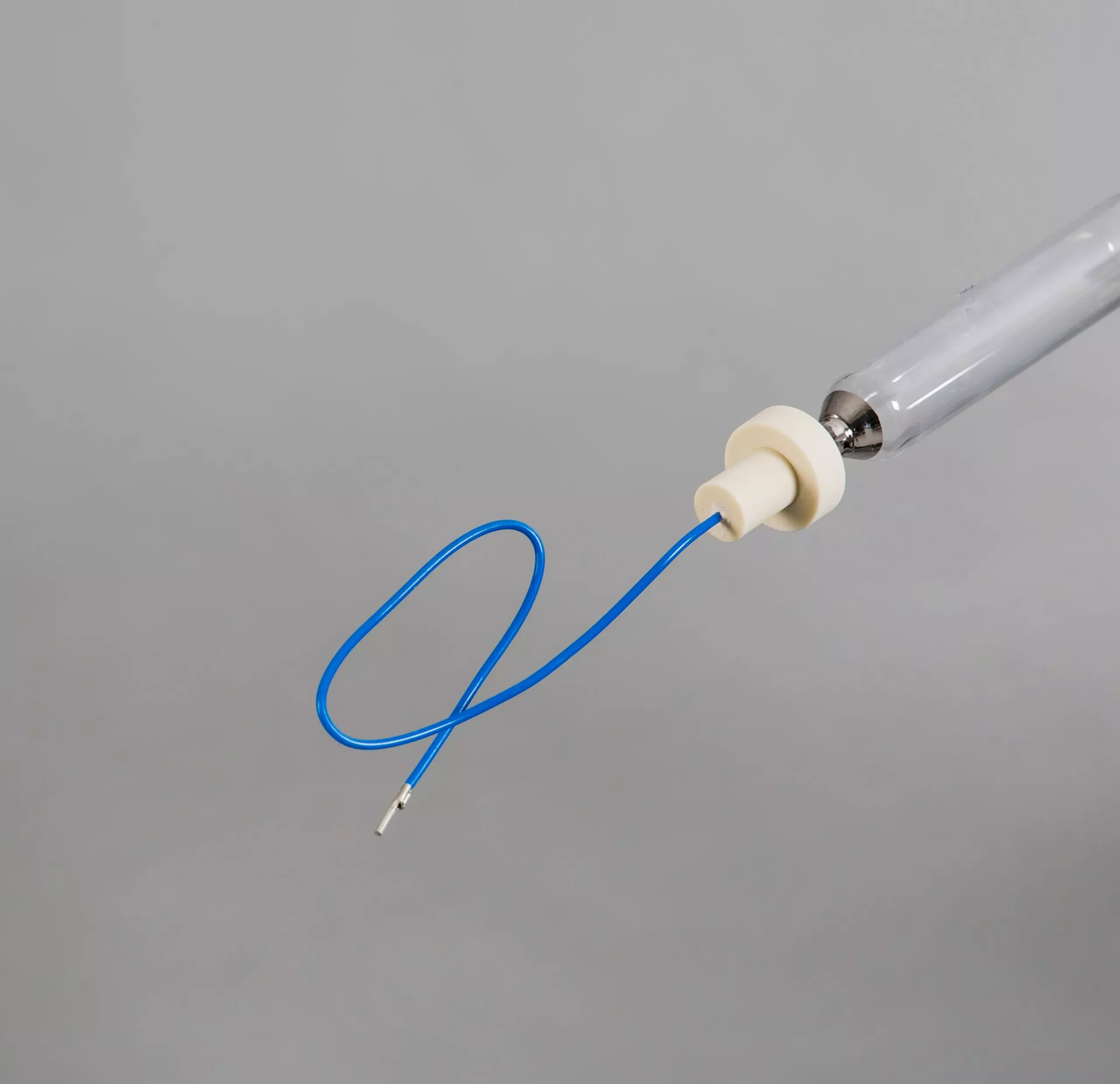

Berson Replacement UV Lamp, B410

A UV lamp is a scheduled replacement, not a failure item. Its UV-C output falls steadily through life while the lamp continues to light normally, so a reactor with visibly working lamps can be well below its dosing duty. Replacement is made on elapsed operating hours against the measured intensity trend, not on the lamp going out. Order against the reactor model, and handle the new lamp by its ends only — skin oils fired onto the envelope at operating temperature devitrify the quartz and cost output permanently. Match the lamp to the reactor model rather than to physical size: Berson has built more than one lamp rating into reactors of similar dimensions, and a lamp that fits mechanically may not be the one the plant was dosed around. A second B410 lamp is stocked under item 1003F-1025 at a different price; the two are listed separately in this catalogue, so quote the item number when ordering.

Component type

UV lamp

Also listed as

item 1003F-1025

Fits

Berson B410

Compatible with B410

HS code

8539.49

Material

Quartz glass envelope, amalgam

Temperature Range

Operating: 40°C bulb wall typical

HS Code

8539.49

• Article 1003-0903
• Also listed as: 1003F-1025
