Bürkert AirLINE SP – Electropneumatic Automation System

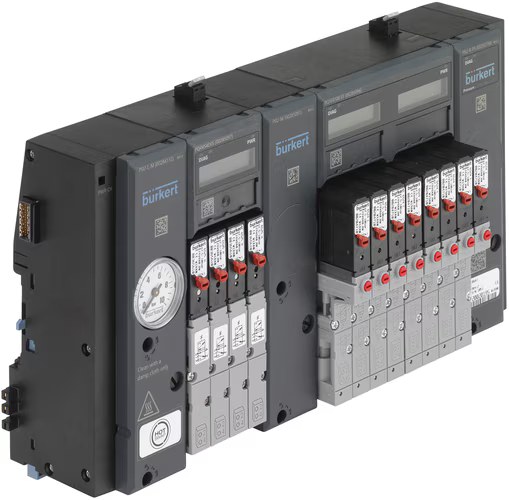

The pneumatic valve island Type 8647 AirLINE SP is a modular, electropneumatic automation system consisting of connection and valve modules. It has been especially developed for safe and complete integration into the decentralised peripheral system “SIMATIC ET 200SP” and “SIMATIC ET 200SP HA" from Siemens. Pneumatically operated process valves, pneumatic cylinders or other pneumatic components can be connected to the pneumatic outputs. If the pneumatic components are installed with position feedbacks, the position of the actuated pneumatic components can be displayed on the associated pilot valve. This can save time on start-up and maintenance.

Product properties

Type 0460, Type 6524, Type 6525

Seal

NBR (valves: FPM, NBR and PUR)

Width per station

11 mm

Number of valve slots

For single valves: max. 64

Maximum number of valve functions

64 on one valve block, several valve blocks possible on one station

Pneumatic Intermediate feed

Necessary after 24 valve functions

Pressure range

Vac.…10 bar (with UL approval Vac.…8 bar)

External supply air (auxiliary pilot air)

> 2.5 bar (Type 0460: not possible)

Flow rate QNn value air

200…300 l/min measured at + 20 °C, 6 bar pressure at valve inlet and 1 bar differential

Flow rate QNn value air with integrated

Flow reduced by approx. 20 %

Nominal operating mode

Continuous operation (100 % duty cycle)

Switching time

Measured according to ISO 12238

Operating voltage

24 V DC

Voltage tolerance

± 10 %

Residual ripple (at DC)

2.4 Vss

HS Code

8481.20
