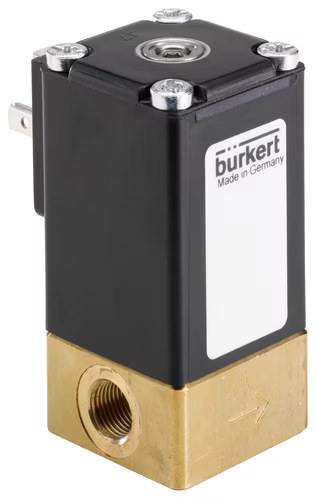

Bürkert Direct-acting 2-Way Standard Proportional Valve Type 2873

The direct-acting proportional valve Type 2873 is used as the regulating unit in control loops. Due to an elastomeric seat seal the valve closes tight (integrated shut-off function), up to the DN specific nominal pressure. The plunger of the valve is assembled frictionless, which leads to an extraordinary adjustment characteristic. This valve is particularly suitable for demanding control tasks (high control range, dry gases, etc.).

Seal

FKM, EPDM

Body

Brass, stainless steel

Hysteresis

< 5 %

Repeat accuracy

< 0.5 % FS

Response sensitivity

< 0.25 % FS

Setting range

1:200

Pressure range

0…16 bar

Duty cycle

100 % continuous operation

Operating voltage

24 V DC (at 5 W and 24 V coil) (12 V on request)

Power consumption

Max. 9 W

Maximum coil current

420 mA (at 9 W and 24 V coil)

PWM frequency

1200 Hz

Medium temperature

- 10 °C…+ 90 °C (with FKM)

Viscosity

Max. 21 mm2/s (21 cSt)

Electrical connection

Cable plug Type 2518, form A according to DIN EN 175301 - 803

HS Code

8481.80
