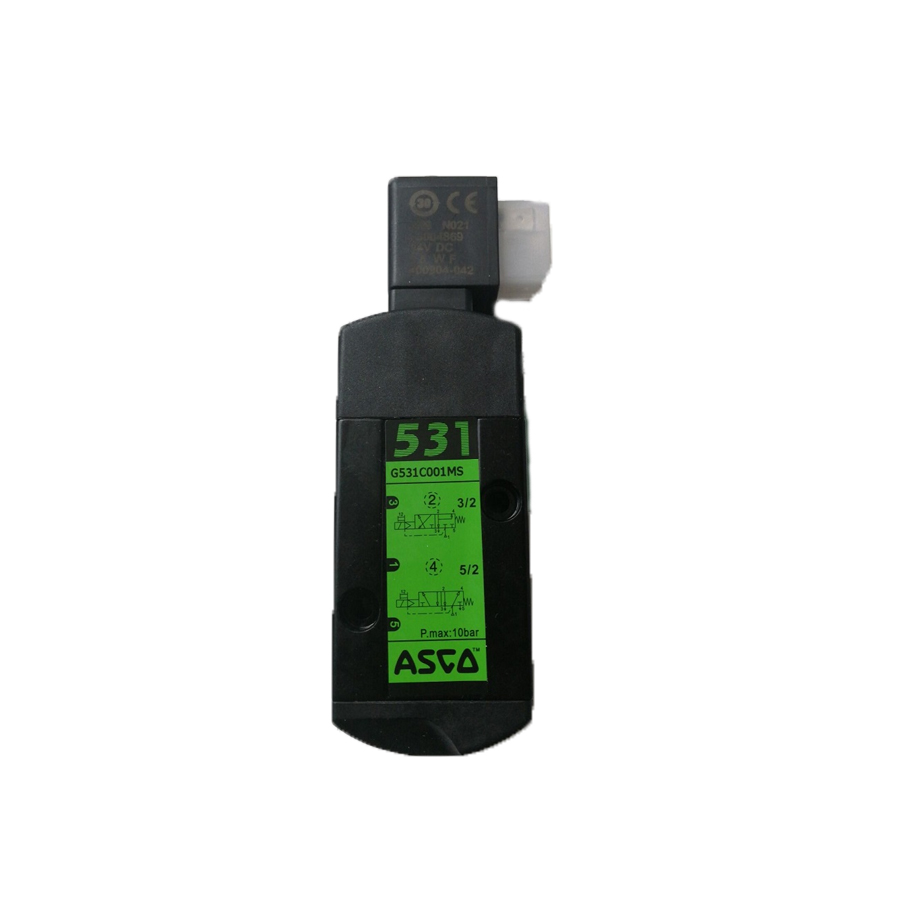

ASCO NAMUR Solenoid Spool Valve 3/2 5/2 G1/4 6mm
ASCO · Pneumatics · Solenoid Valves
ASCO SCG531C001MS, catalog identifier for the specific configuration. ASCO Numatics Series 531 spool valve with NAMUR mounting interface. Convertible 3/2 NC or 5/2 function via interface plate. G1/4 supply with 6mm orifice. Provides on-off electrical control of fluid flow in refrigeration, hydraulic or pneumatic lines. Manufacturer: ASCO. Manufacturer part number: SCG531C001MS. Available on quote-to-invoice terms via cBallast. Lead time and freight are quoted per RFQ against destination Incoterm.
Specifications
- Part number
- SCG531C001MS
- HS code
- 8481.80
- Material
- Aluminium body, NBR seals
- Pressure rating
- 2-10 bar
- Temperature range
- -10°C to +60°C
- IP rating
- IP65
- Standard
- ASCO Series 531 / NAMUR VDI/VDE 3845
Compatibility
Fits any quarter-turn pneumatic actuator with NAMUR VDI/VDE 3845 interface (most worldwide actuator brands).
Standards
- NAMUR VDI/VDE 3845
- IEC 60730
- IEC 60204-1
- IEC 60529 (IP rating)
- NAMUR
- IEC 60529
- IEC 61508
Approvals
- IEC 61508
- CE
- ATEX (variants)
- ATEX
- VDE
