Aneta Lighting

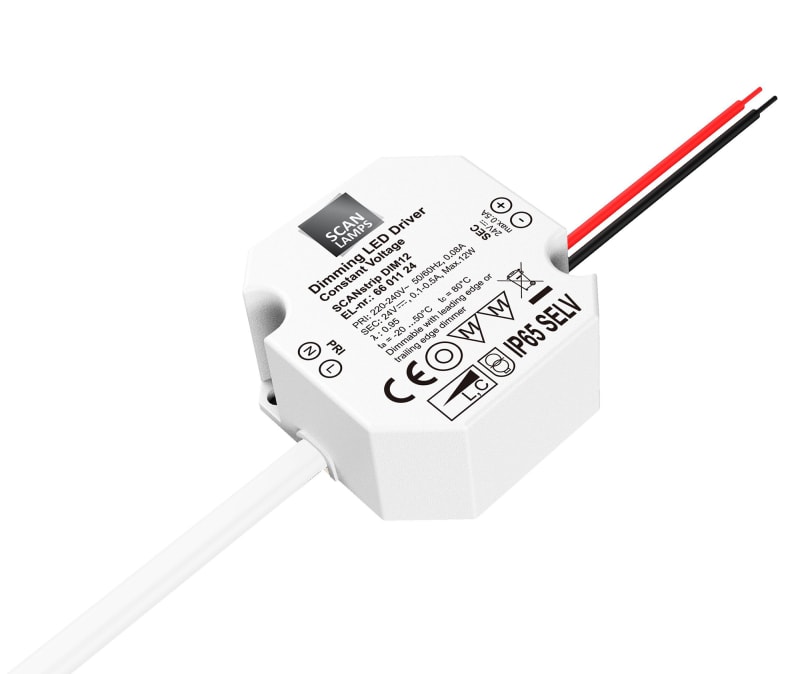

Scanstrip DIM12 IP65 DC24V LED Driver
Part number71060-01EAN / GTIN7041661270770HS code8504.31
Lighting & Electrical Accessories
LED Drivers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Aneta Lighting 71060-01 Scanstrip DIM12 DC24V LED driver.
Technical Specifications
- Manufacturer part number (MPN)
- 71060-01
- EAN / GTIN
- 7041661270770
- Sales unit
- pcs
- Package quantity
- 100 pcs
- IP rating
- IP65
- Model
- Static
- Suitable for outdoor use
- No
- Dimming 0-10 V
- No
- Dimming 1-10 V
- No
- Dimming DALI
- No
- Dimming DSI
- No
- Dimming DMX
- No
- Dimming potentiometer (integrated)
- No
- Dimming GPRS
- No
- Dimming LineSwitch
- No
- Dimming manufacturer's proprietary system
- No
- Dimming mains voltage modulation
- No
- Dimming phase cut-off (trailing edge)
- Yes
- Dimming phase cut-on (leading edge)
- No
- Dimming programmable
- No
- Dimming RF
- No
- Dimming Its Wave Reduction
- No
- Dimming Touch and Dim
- No
- Dimming Zigbee
- No
- Dimming with push-button
- No
- No dim function
- No
- Housing
- Plastic housing
- Suitable for constant current
- No
- Suitable for constant voltage
- Yes
- Suitable for DC-voltage (primary side)
- No
- Degree of protection (IP)
- IP65
- Protection class according to IEC 61140
- II
- Length
- 50 mm
- Width
- 48 mm
- Height
- 24 mm
- Diameter
- 50 mm
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- IFTTT support available
- No
- Dimmable
- Yes
- Country of origin
- China
Standards & Compliance
- HS Code
- 8504.31
Cross References
- EAN 7041661270770
- SAP 1200523694
- Code 82675554
Product Documentation
Document preview: Scanstrip DIM12 IP65 DC24V LED Driver (71060-01) — Specification sheet
