Aneta Lighting

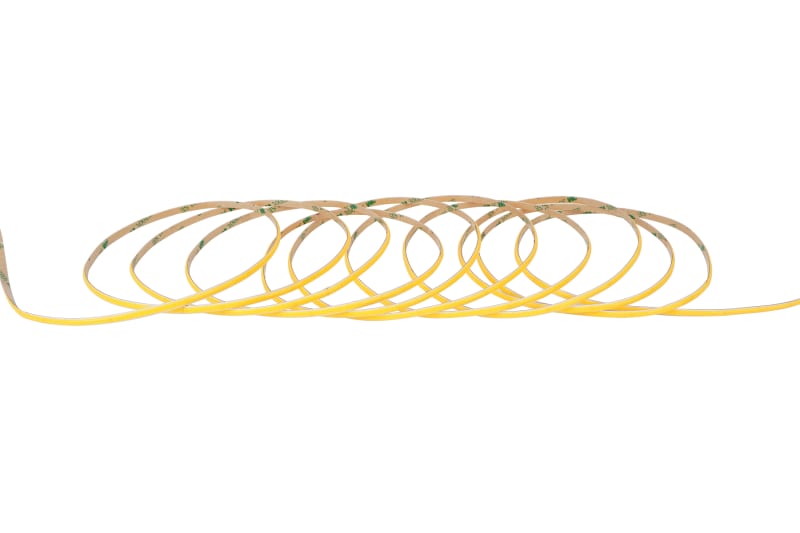

Scanstrip COB-10W/930 5M IP20 Slimline
Part number71284-01EAN / GTIN7041661279735HS code8539.51
Lighting & Electrical Accessories
LED Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Aneta Lighting 71284-01 Scanstrip COB-30 slimline 10W/m IP20.
Technical Specifications
- Manufacturer part number (MPN)
- 71284-01
- EAN / GTIN
- 7041661279735
- Sales unit
- pcs
- Package quantity
- 25 pcs
- IP rating
- IP20
- Luminaire efficacy
- 100 lm/W
- Model
- Strip
- Mounting method
- Surface mounting/recessed mounting
- Lamp type
- LED not exchangeable
- Number of nodes per meter
- 384
- Number of nodes per foot
- 117
- Lamp power per meter
- 10 W
- Lamp power per foot
- 3.05 W
- Luminous flux per meter
- 1000 lm
- Voltage type
- DC
- Lamp voltage
- 24 V
- Beam angle
- 120 °
- Type of control gear
- LED operating device voltage-controlled
- Suitable for dimmer
- Yes
- Rated lifetime L70/B50 at 25 °C
- 50000 h
- Degree of protection (IP)
- IP20
- Protection class according to IEC 61140
- III
- Max. system power
- 50 W
- Colour of light
- White
- Constant light output (CLO)
- No
- Colour temperature
- 3000 K
- Colour rendering index CRI
- 90-100
- Colour of light adjustable
- No
- Luminous flux adjustable
- Continuously variable
- Beam angle adjustable
- No
- Width
- 5 mm
- Height/depth
- 2 mm
- Length
- 5000 mm
- Lowest bending radius
- 60 mm
- Length of particular segments
- 41.7 mm
- With end piece
- No
- With connection set
- No
- With protective cover
- No
- Self-adhesive
- Yes
- Type of wiring
- Loop-through wiring included
- Number of poles
- 2
- Conductor cross section
- 0.5 mm²
- Connection type
- Solder
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- IFTTT support available
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 8539.51
Cross References
- EAN 7041661279735
- SAP 1200708670
- Code 83805438
Product Documentation
Document preview: Scanstrip COB-10W/930 5M IP20 Slimline (71284-01) — Specification sheet
More from Aneta Lighting
Aneta Lighting

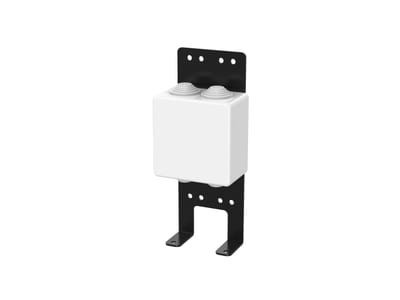

POLE Junction BOX Black
71276-15
Aneta Lighting
RING Black Ceiling Hanger 36/600
71205-15
Aneta Lighting
Trackline 1T Falcon 8W/927 50 Black
71244-15
Aneta Lighting
PURE Pendant 40/1200 White
71295-70
Aneta Lighting

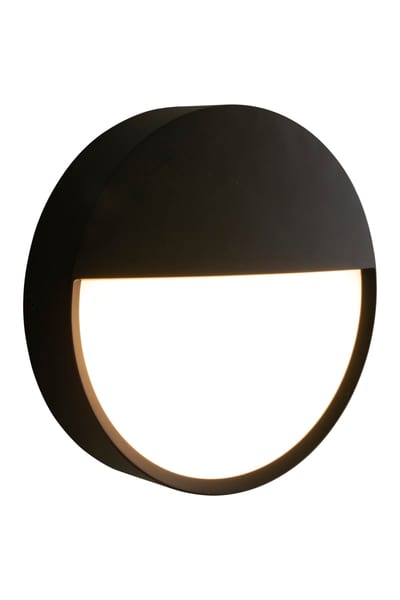

Mandal Black 12W/830 IP65 DIM
71935-15
Aneta Lighting

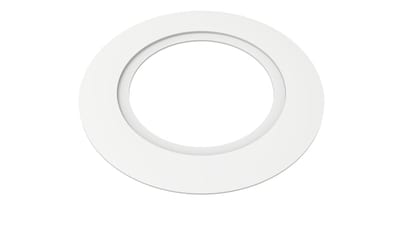

Downlight Ø90 Rehab Frame White
71167-70
Aneta Lighting

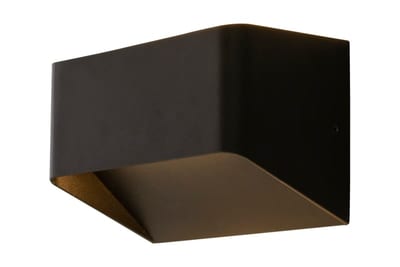

Aneta Lighting Søgne 10 W 2700K Outdoor Wall Luminaire IP54 Black
71298-15
Aneta Lighting

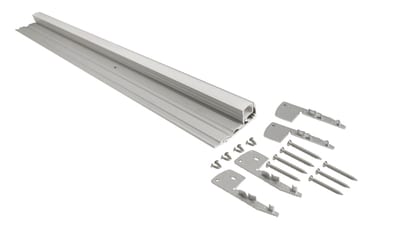

Aneta Lighting Scanstrip STEP Anodised Aluminium Profile
