Aneta Lighting

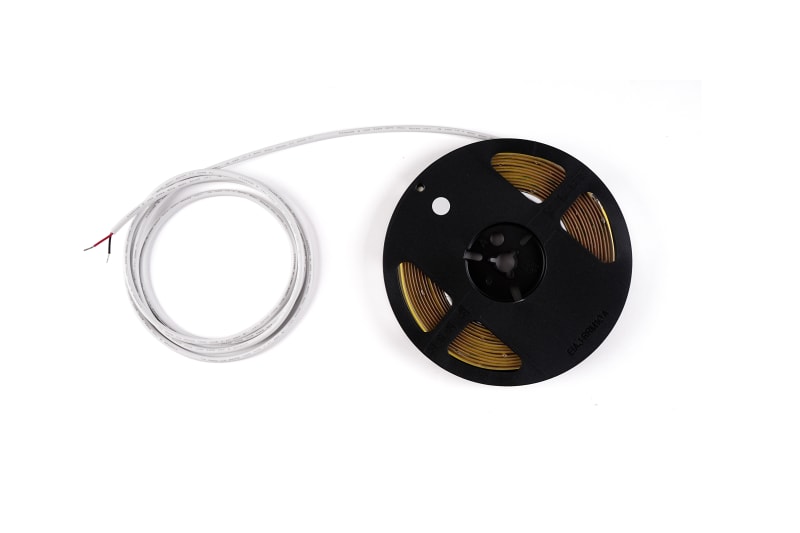

Scanstrip COB-40 PRO 18W/M 5M IP20
Part number72077-01EAN / GTIN7041661294721HS code8539.52
Lighting & Electrical Accessories
LED Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Aneta Lighting 72077-01 Scanstrip COB-40 pro 18W/m 5m IP20 DC24V 4000K COB LED strip.
Technical Specifications
- Manufacturer part number (MPN)
- 72077-01
- EAN / GTIN
- 7041661294721
- HS code
- 8539.52
- Sales unit
- pcs
- IP rating
- IP20
- Luminaire efficacy
- 145 lm/W
- Model
- Strip
- Mounting method
- Surface mounting/recessed mounting
- Lamp type
- LED not exchangeable
- Number of nodes per meter
- 576
- Number of nodes per foot
- 176
- Lamp power per meter
- 18 W
- Lamp power per foot
- 5.5 W
- Luminous flux per meter
- 2610 lm
- Voltage type
- DC
- Beam angle
- 140 °
- Type of control gear
- LED operating device voltage-controlled
- Suitable for dimmer
- Yes
- Rated lifetime L70/B50 at 25 °C
- 100000 h
- Degree of protection (IP)
- IP20
- Protection class according to IEC 61140
- III
- Max. system power
- 18 W
- Colour of light
- White
- Constant light output (CLO)
- No
- Colour rendering index CRI
- 90-100
- Colour of light adjustable
- No
- Luminous flux adjustable
- Continuously variable
- Beam angle adjustable
- No
- Width
- 10 mm
- Height/depth
- 2 mm
- Lowest bending radius
- 60 mm
- Length of particular segments
- 27.8 mm
- With end piece
- No
- With connection set
- No
- With protective cover
- No
- Self-adhesive
- Yes
- Type of wiring
- Suitable for loop-through wiring
- Number of poles
- 2
- Conductor cross section
- 0.5 mm²
- Connection type
- Solder
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- IFTTT support available
- No
- Total length
- 5 m
- Country of origin
- China
Standards & Compliance
- HS Code
- 8539.52
Cross References
- EAN 7041661294721
- SAP 1201029651
- Code 84396815
Product Documentation
Document preview: Scanstrip COB-40 PRO 18W/M 5M IP20 (72077-01) — Specification sheet
