Aneta Lighting

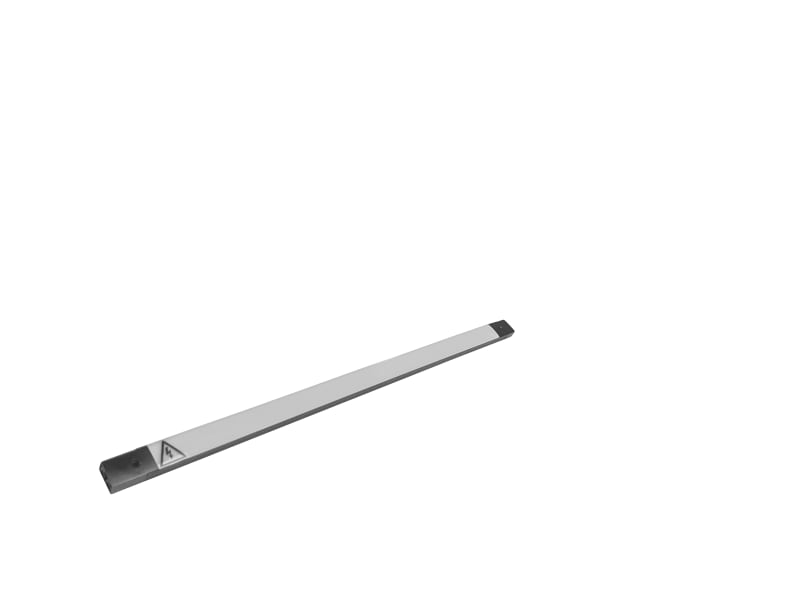

Scanled PRO-27 9/550 Black DIM
Part number71230-15EAN / GTIN7041661283343HS code9405.11
Lighting & Electrical Accessories
LED Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Aneta Lighting 71230-15 SCANLED PRO-27 9/550, under-cabinet luminaire 55cm, 9W, SDCM<4, CRI>90, 2700K.
Technical Specifications
- Manufacturer part number (MPN)
- 71230-15
- EAN / GTIN
- 7041661283343
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Luminaire efficacy
- 62 lm/W
- Mounting method
- Surface mounting
- Lamp type
- LED not exchangeable
- Number of nodes per meter
- 190
- Number of nodes per foot
- 58
- Lamp power per meter
- 16 W
- Lamp power per foot
- 52.48 W
- Luminous flux per meter
- 1000 lm
- Voltage type
- AC
- Beam angle
- 113 °
- Type of control gear
- Not required
- Suitable for dimmer
- Yes
- Exchangeable control gear
- No
- Rated lifetime L70/B50 at 25 °C
- 50000 h
- Degree of protection (IP)
- IP20
- Protection class according to IEC 61140
- II
- Max. system power
- 9 W
- Colour of light
- White
- Colour rendering index CRI
- 90-100
- Colour of light adjustable
- No
- Luminous flux adjustable
- Continuously variable
- Beam angle adjustable
- No
- Width
- 14 mm
- Height/depth
- 25.4 mm
- Length
- 548 mm
- With end piece
- Yes
- With connection set
- No
- With protective cover
- Yes
- Self-adhesive
- Yes
- Type of wiring
- Suitable for loop-through wiring
- Number of poles
- 2
- Conductor cross section
- 2.5 mm²
- Connection type
- Screwed terminal
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- IFTTT support available
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7041661283343
- SAP 1200850569
- Code 84066821
Product Documentation
Document preview: Scanled PRO-27 9/550 Black DIM (71230-15) — Specification sheet
